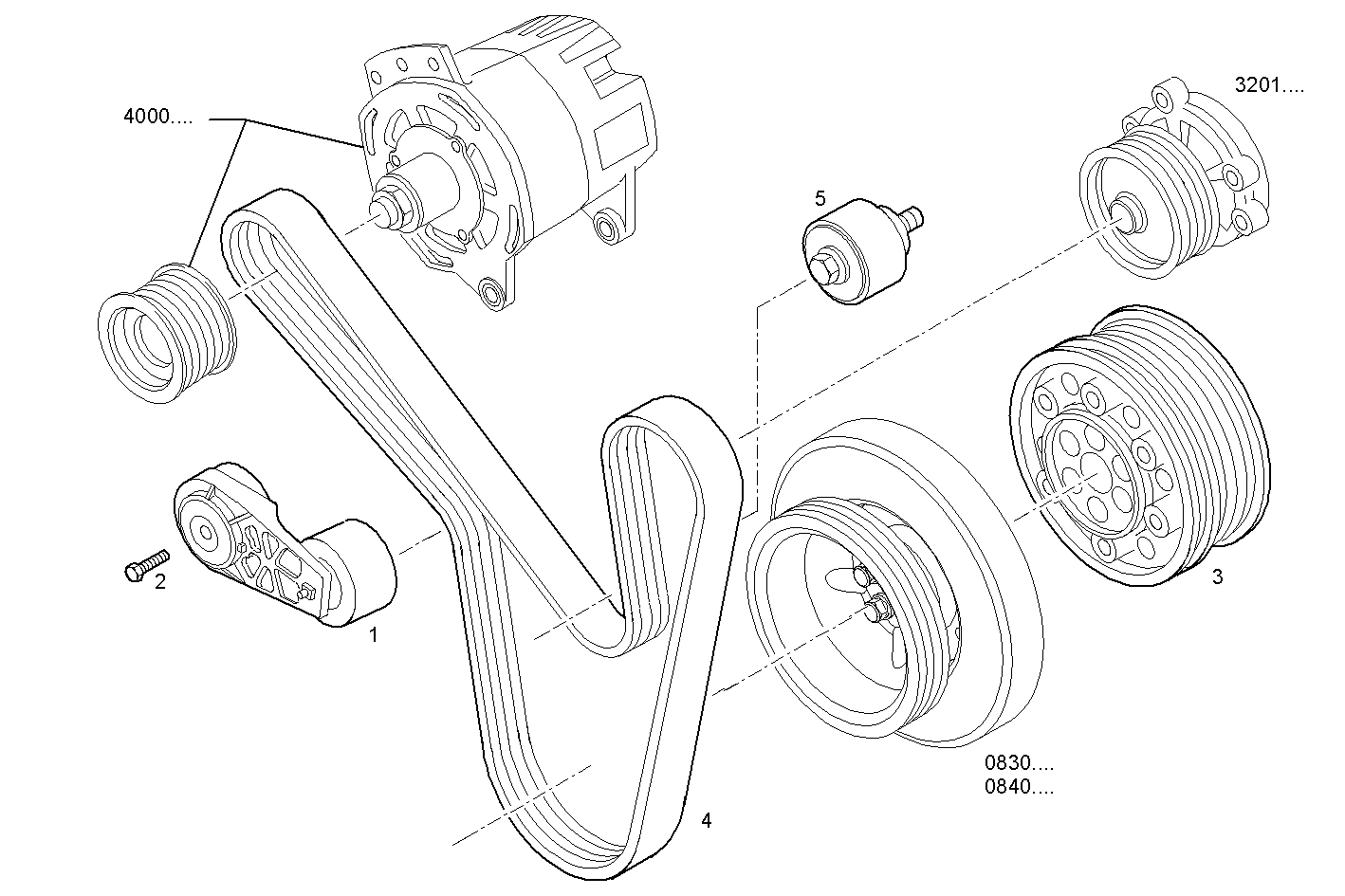

DRIVING PULLEY
Assembly ID: 0843.015
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504046191 | BELT TENSIONER | 1 | ||
| 2 | 16676834 | HEXAGON BOLT | 1 | ||
| 3 | 500310634 | CRANKSHAFT PULLEY | 1 | ||
| 4 | 500380059 | V-BELT | 1 | ||
| 5 | 504006261 | BELT TENSIONER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684D*B001 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B003 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B005 | CURSOR 10 - TIER 2 | view |
| F3AE0684D*B006 | CURSOR 10 - TIER 2 | view |
| F3AE0684G*B005 | CURSOR 10 - TIER 2 | view |
| F3AE0684N*E907 | CURSOR 10 - TIER 3 | view |
