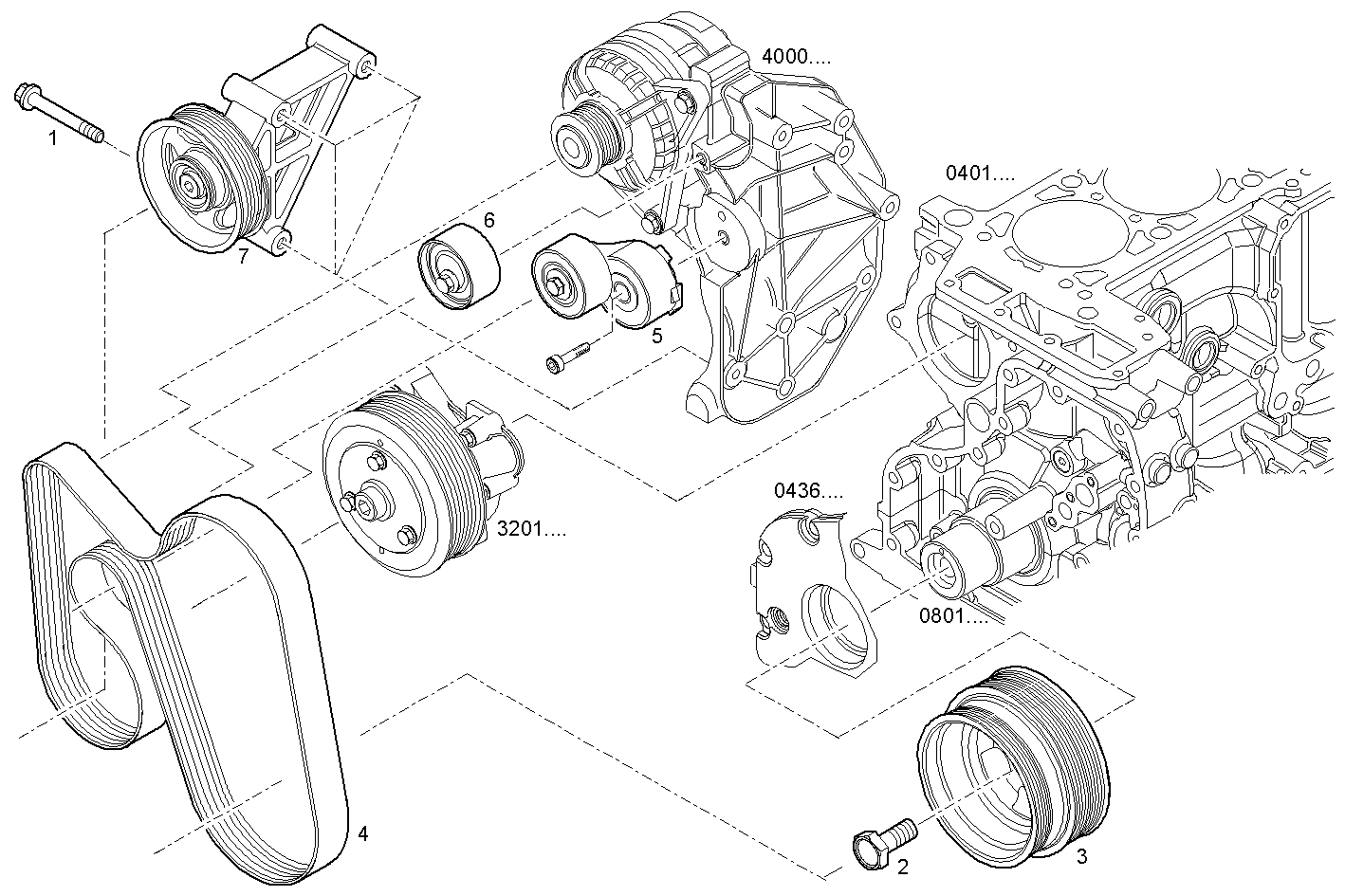

DRIVING PULLEY
Assembly ID: 0843.037
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16673635 | HEXAGON BOLT | 3 | ||
| 2 | 98419203 | SCREW | 1 | ||
| 3 | 504259660 | VIBRATION DAMPER | 1 | ||
| 4 | 504334375 | V-BELT | 1 | ||
| 5 | 504334709 | BELT TENSIONER | 1 | ||
| 6 | 504334710 | BELT TENSIONER | 1 | ||
| 7 | 504334729 | SUPPORT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481A*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A005 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A007 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A005 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481B*A007 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A015 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481A*A017 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481G*A001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481G*A003 | SOFIM HPI 3.0L - EURO 5 | view |
