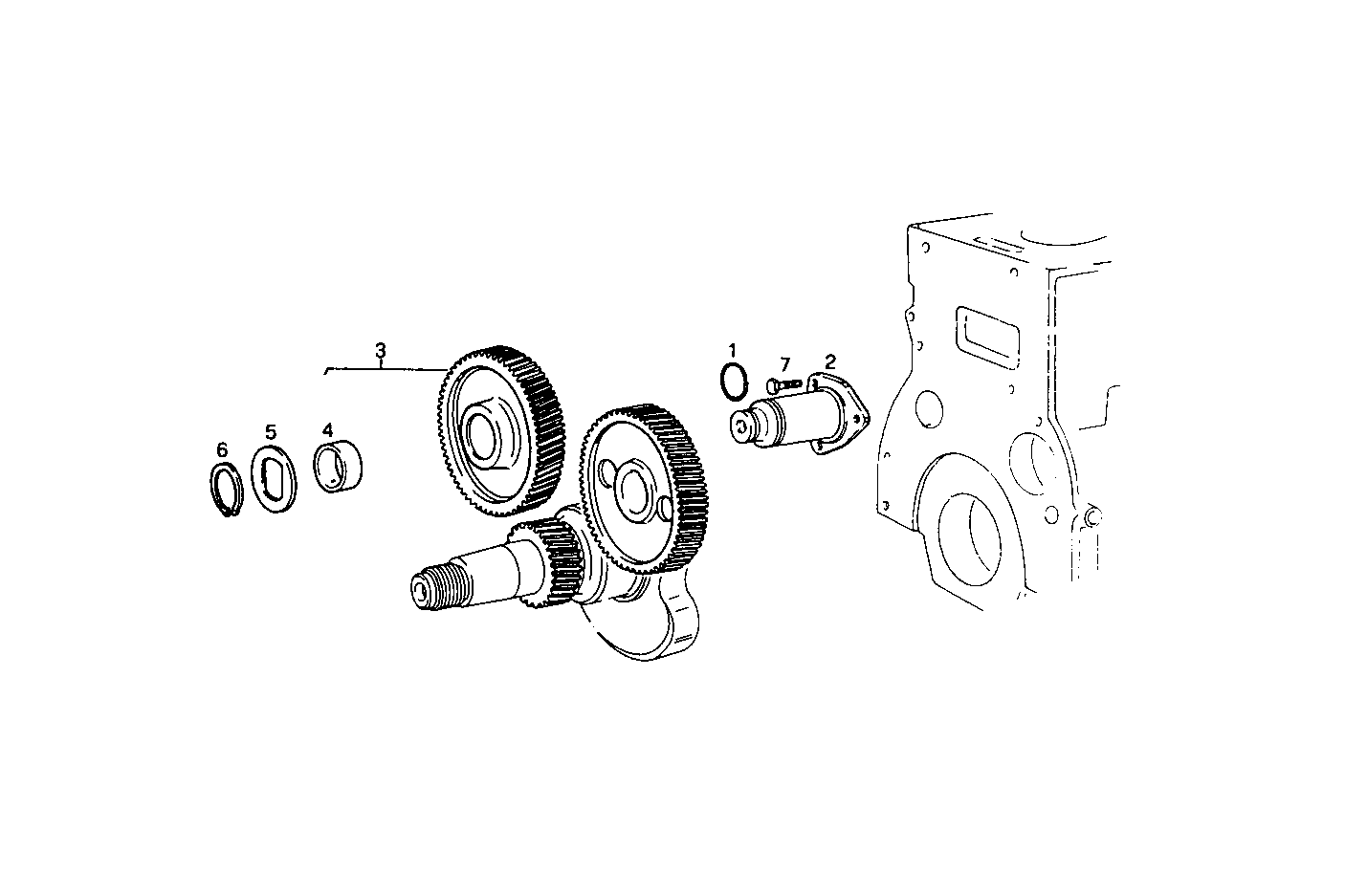

GEAR DRIVE
Assembly ID: 1000.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4667452 | SUPPORT RING | 1 | ||
| 2 | 4769416 | GUIDE BOLT | 1 | ||
| 3 | 4769414 | CAMSHAFT PINION | 1 | ||
| 4 | 4769418 | BUSH | 1 | ||
| 5 | 4769419 | WASHER | 1 | ||
| 6 | 4769420 | CIRCLIP | 1 | ||
| 7 | 16321021 | SCREW | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM27.10 | 8061SRM27 | view |
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
| 8281SRM50.32 | 8281SRM50 | view |
