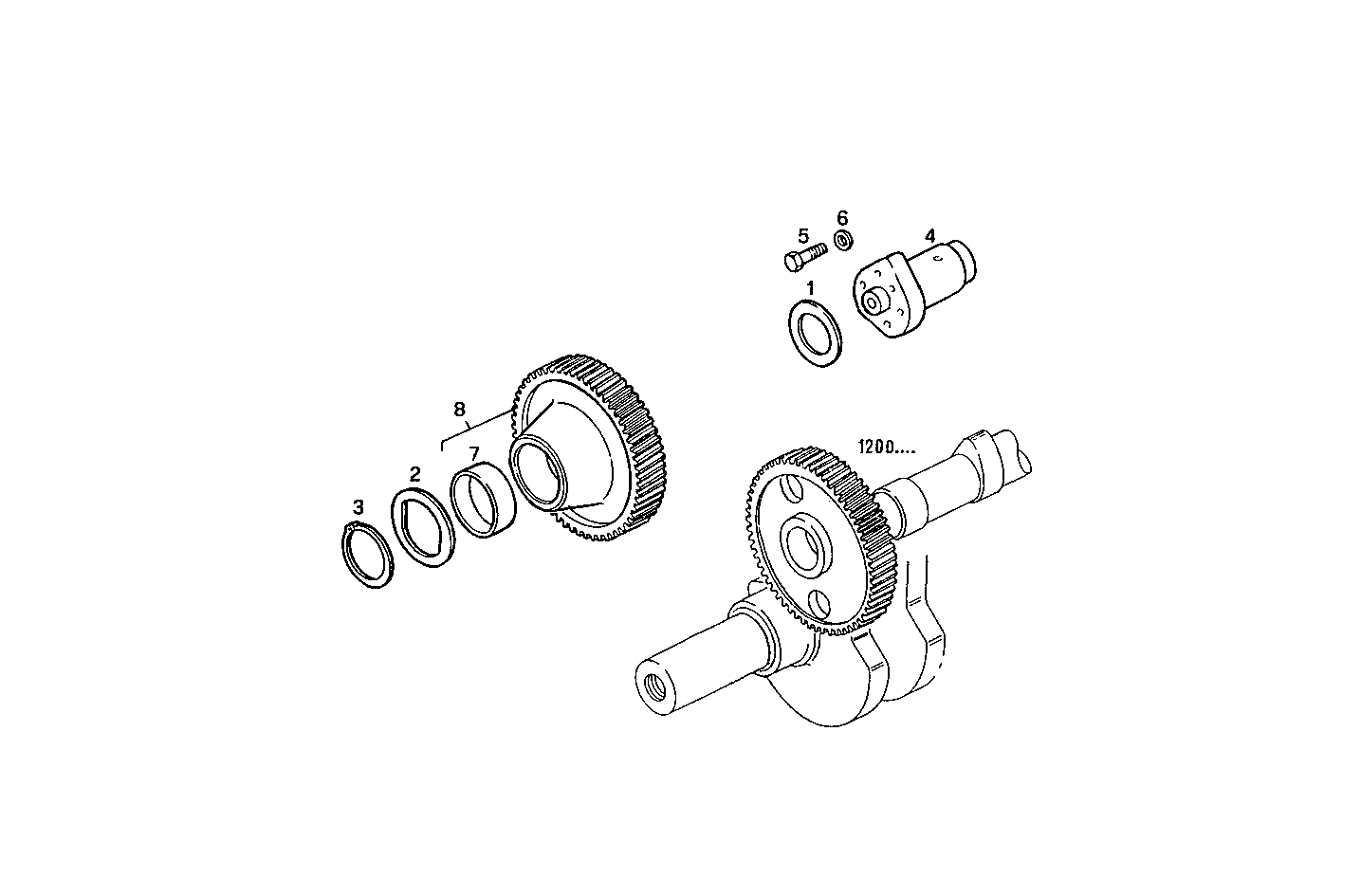

GEAR DRIVE
Assembly ID: 1000.021
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4604833 | WASHER | 1 | ||
| 2 | 4667498 | WASHER | 2 | ||
| 3 | 4708213 | CIRCLIP | 1 | ||
| 4 | 4847921 | GUIDE BOLT | 1 | ||
| 5 | 16232734 | HEXAGON BOLT | 6 | ||
| 6 | 17089574 | WASHER | 6 | ||
| 7 | 98426691 | BUSH | 1 | ||
| 8 | 98428283 | TIMING INTERM.GEA | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRE11.00 | 8361SRE11 | view |
| 8361SRE11.00A001 | 8361SRE11 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
