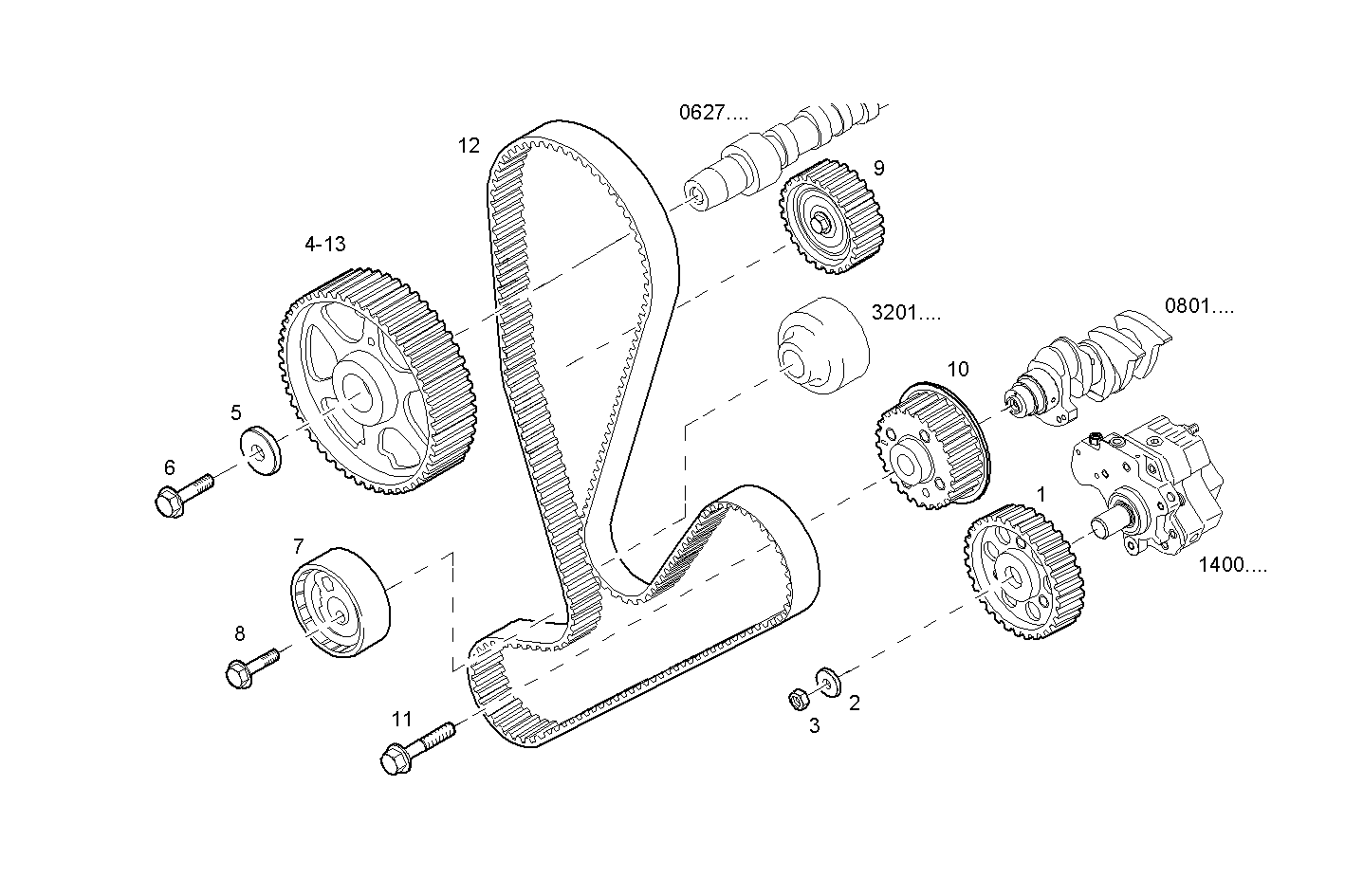

CONTROLS
Assembly ID: 1220.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500377039 | INJ.PUMP DRIV.GEA | 1 | ||
| 2 | 768389 | CIRCLIP | 1 | ||
| 3 | 17043231 | NUT | 1 | ||
| 4 | 504014153 | CAMSHAFT PINION | 1 | ||
| 5 | 504017392 | WASHER | 1 | ||
| 6 | 16290334 | HEXAGON BOLT | 1 | ||
| 7 | 504010846 | BELT TENSIONER | 1 | ||
| 8 | 16674734 | HEXAGON BOLT | 1 | ||
| 9 | 500388688 | PULLEY | 1 | ||
| 10 | 500390429 | TIMING DRIVE GEAR | 1 | ||
| 11 | 500375267 | HEXAGON BOLT | 1 | ||
| 12 | 504076915 | TIMING BELT | 1 | ||
| 13 | 504096180 | CAMSHAFT PINION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
| F1AE0481G*A001 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481B*C001 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481G*A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A002 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A009 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A002 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A004 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A008 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A007 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.30A004 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481F*A101 | SOFIM HPI 2.3L - EURO 4 | view |
