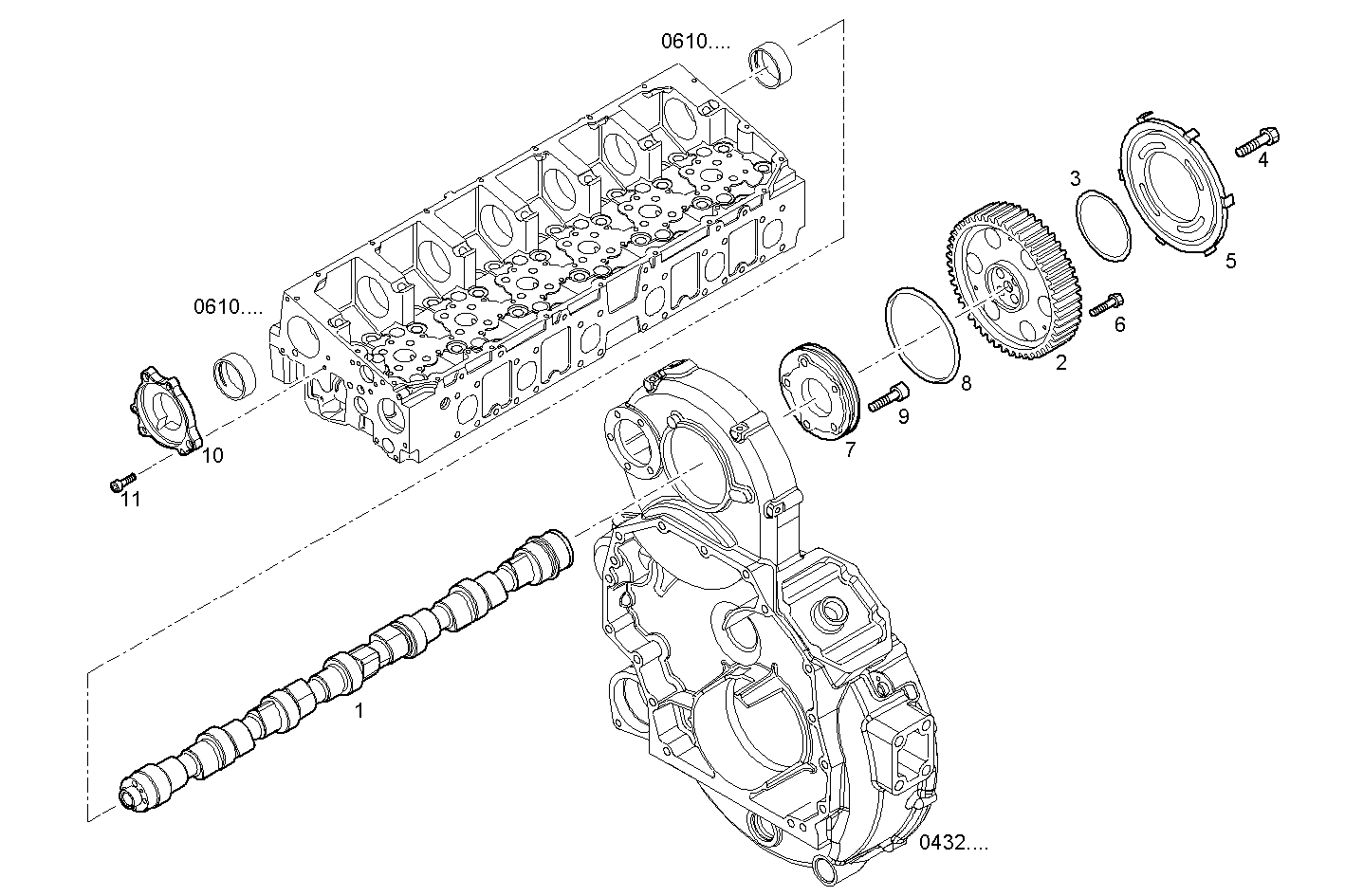

TIMING PARTS
Assembly ID: 1250.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504129411 | CAMSHAFT | 1 | ||
| 2 | 504124637 | CAMSHAFT PINION | 1 | ||
| 3 | 17290783 | O-RING | 1 | ||
| 4 | 16676135 | HEXAGON BOLT | 4 | ||
| 5 | 504142643 | PLATE | 1 | ||
| 6 | 500397562 | HEXAGON BOLT | 3 | ||
| 7 | 504127775 | COVER | 1 | ||
| 8 | 17292381 | O-RING | 1 | ||
| 9 | 16586625 | HEXAGON BOLT | 5 | ||
| 10 | 504134066 | COVER | 1 | ||
| 11 | 504010467 | CYLIND-HEAD SCREW | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A002 | CURSOR 9 - TIER 3 | view |
| F2CE9684A*E004 | CURSOR 9 - TIER 3 | view |
| F2CE9684B*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684C*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684D*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9684C*E002 | CURSOR 9 - TIER 3 | view |
| F2CE9684E*E002 | CURSOR 9 - TIER 3 | view |
| F2CE9684L*E005 | CURSOR 9 - TIER 3 | view |
| F2CE9687A*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9687B*E001 | CURSOR 9 - TIER 3 | view |
| F2CE9687C*E001 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A800 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A801 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A802 | CURSOR 9 - TIER 3 | view |
| F2CE9684H*E003 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A803 | CURSOR 9 - TIER 3 | view |
| F2CE9684A*E009 | CURSOR 9 - TIER 3 | view |
| F2CE9684H*E010 | CURSOR 9 - TIER 3 | view |
| F2CE9684N*E005 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
| F2CE9684A*E014 | CURSOR 9 - TIER 3 | view |
| F2CE9684B*E013 | CURSOR 9 - TIER 3 | view |
| F2CE9684C*E013 | CURSOR 9 - TIER 3 | view |
| F2CE9684C*E015 | CURSOR 9 - TIER 3 | view |
| F2CE9684D*E013 | CURSOR 9 - TIER 3 | view |
| F2CE9684E*E015 | CURSOR 9 - TIER 3 | view |
