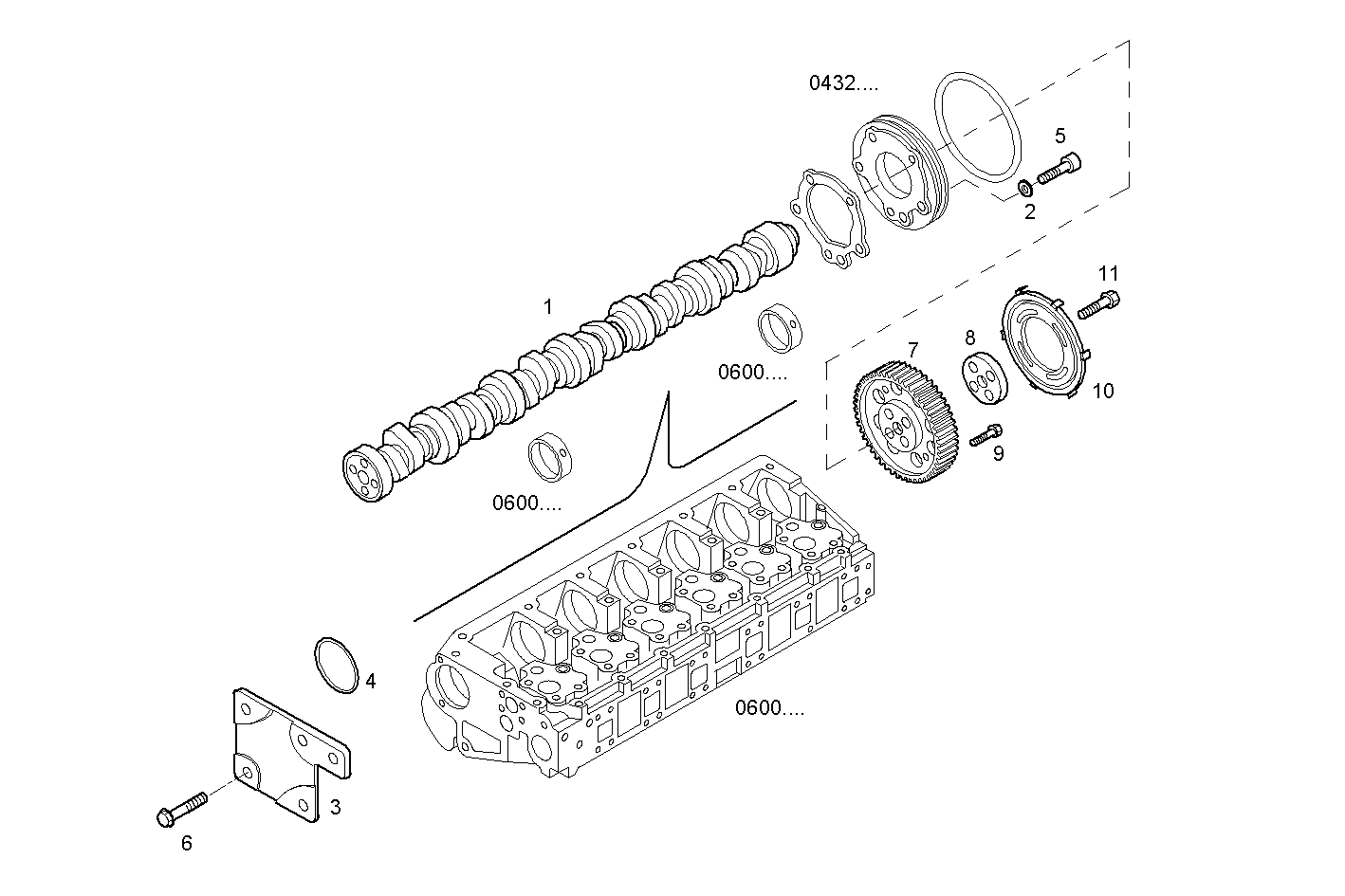

TIMING PARTS
Assembly ID: 1250.017
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504227220 | CAMSHAFT | 1 | ||
| 2 | 17096824 | WASHER | 5 | ||
| 3 | 504204255 | COVER | 1 | ||
| 4 | 17290781 | O-RING | 1 | ||
| 5 | 16690625 | CYLIND-HEAD SCREW | 5 | ||
| 6 | 16587125 | HEXAGON BOLT | 3 | ||
| 7 | 99450035 | CAMSHAFT PINION | 1 | ||
| 8 | 98496024 | SPACING BAR | 1 | ||
| 9 | 99431774 | BIG-END BOLT | 4 | ||
| 10 | 500336396 | PLATE | 1 | ||
| 11 | 500397562 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
