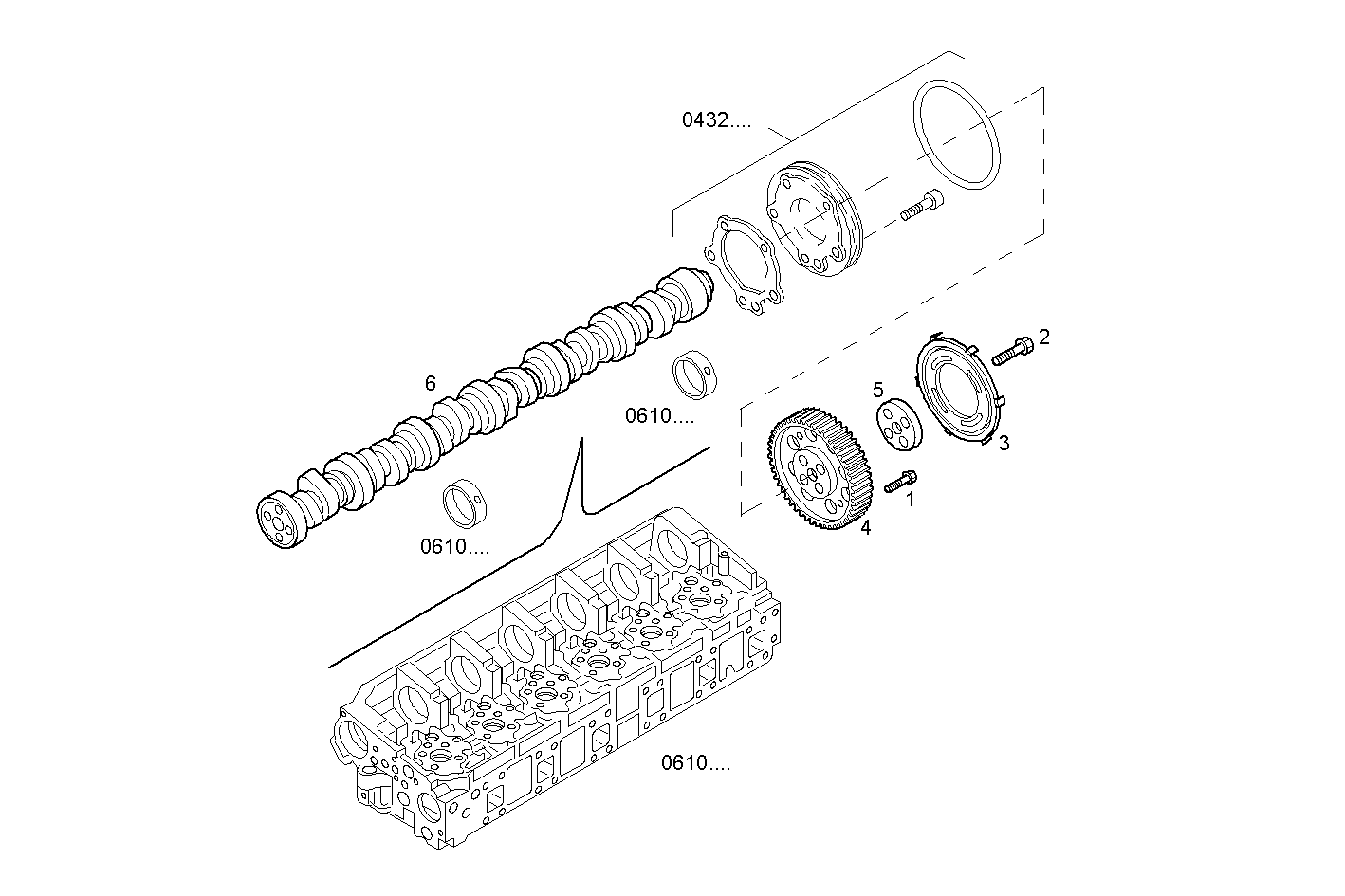

TIMING PARTS
Assembly ID: 1250.018
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500359731 | HEXAGON BOLT | 4 | ||
| 2 | 16678835 | HEXAGON BOLT | 4 | ||
| 3 | 500313023 | PLATE | 1 | ||
| 4 | 99442972 | GEAR | 1 | ||
| 5 | 99444780 | SPACER RING | 1 | ||
| 6 | 504023736 | CAMSHAFT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| F2BE0686A*B111 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
| C78ENTM55.12 | CURSOR 8 | view |
