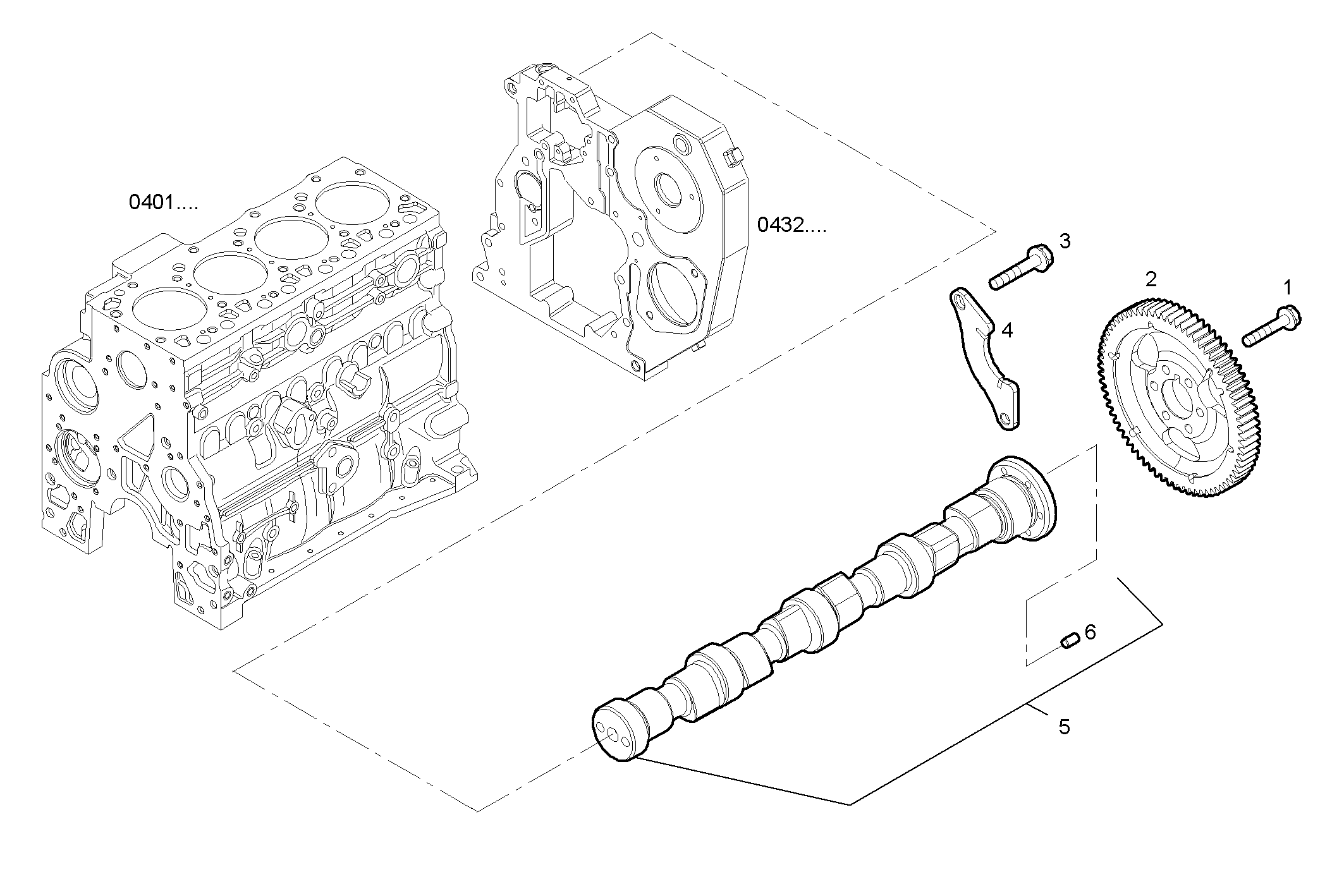

TIMING PARTS
Assembly ID: 1250.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899079 | HEXAGON BOLT | 6 | ||
| 2 | 4896622 | CAMSHAFT PINION | 1 | ||
| 3 | 4899068 | HEXAGON BOLT | 2 | ||
| 4 | 4897457 | YOKE | 1 | ||
| 5 | 504094081 | CAMSHAFT | 1 | ||
| 6 | 4899080 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNTX20.00A011 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9484D*J602 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9485A*J600 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX68.00 | NEF 4 mechanic. - TIER 3 | view |
| NEF45TM2X.A001 | NEF 4 mechanic. - TIER 3 | view |
| NEF45TM2X.R981 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9454K*J600 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9455A*J600 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX88.00 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM2X.A001 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM2X.A550 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9455B*J600 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX89.00 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A001 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A002 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A003 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A004 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A550 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX20.00A004 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM1X.A008 | NEF 4 mechanic. - TIER 3 | view |
| NEF45SM2X.A008 | NEF 4 mechanic. - TIER 3 | view |
| NEF45TM2X.A008 | NEF 4 mechanic. - TIER 3 | view |
