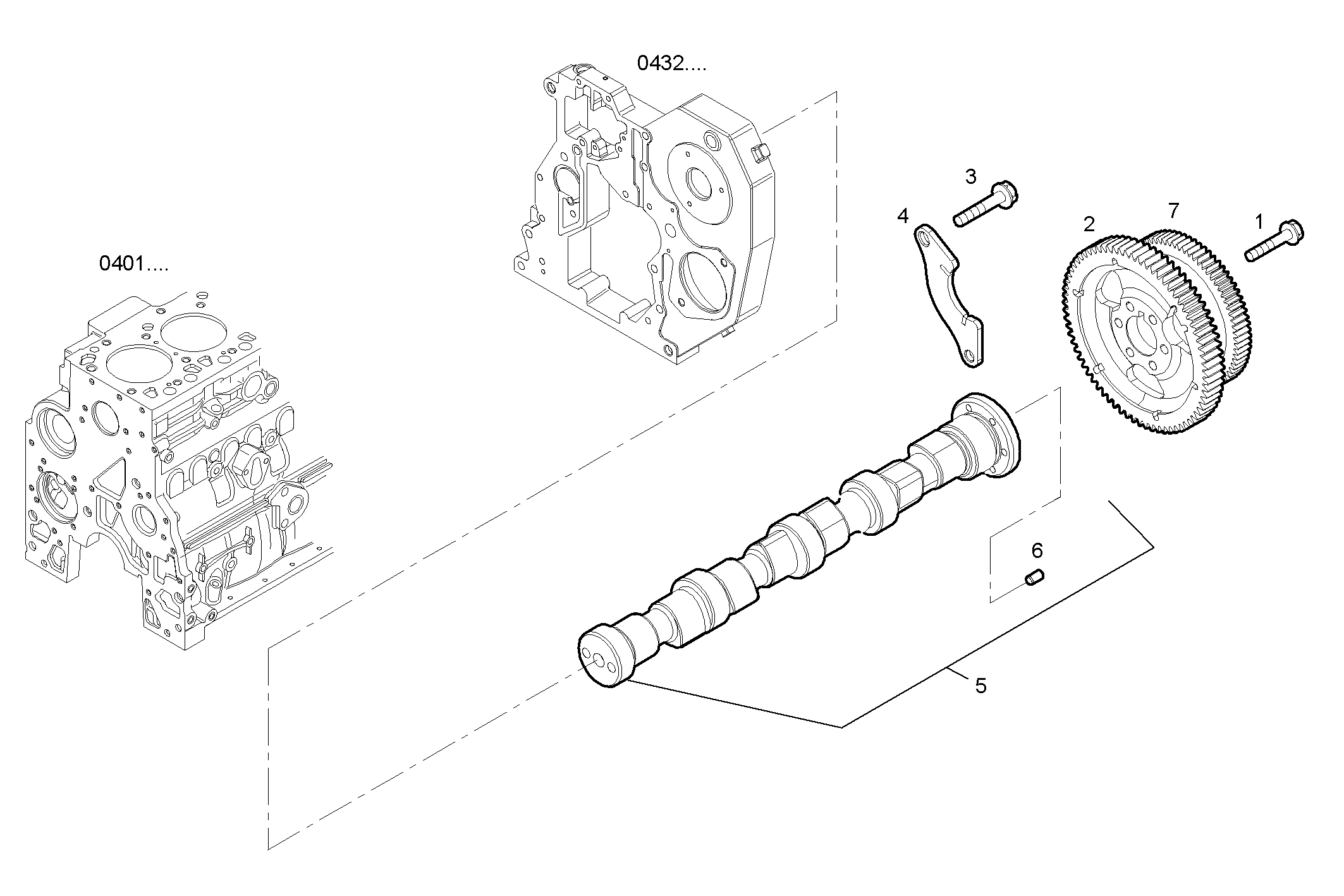

TIMING PARTS
Assembly ID: 1250.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4895323 | HEXAGON BOLT | 6 | ||
| 2 | 504062752 | CAMSHAFT PINION | 1 | ||
| 3 | 4899068 | HEXAGON BOLT | 2 | ||
| 4 | 4897457 | YOKE | 1 | ||
| 5 | 504094081 | CAMSHAFT | 1 | ||
| 6 | 4899080 | DOWEL PIN | 1 | ||
| 7 | 504128085 | CAMSHAFT PINION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE9484D*J601 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A010 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A011 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A801 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| PUN45MSTX20.50A100 | NEF 4 mechanic. - TIER 3 | view |
