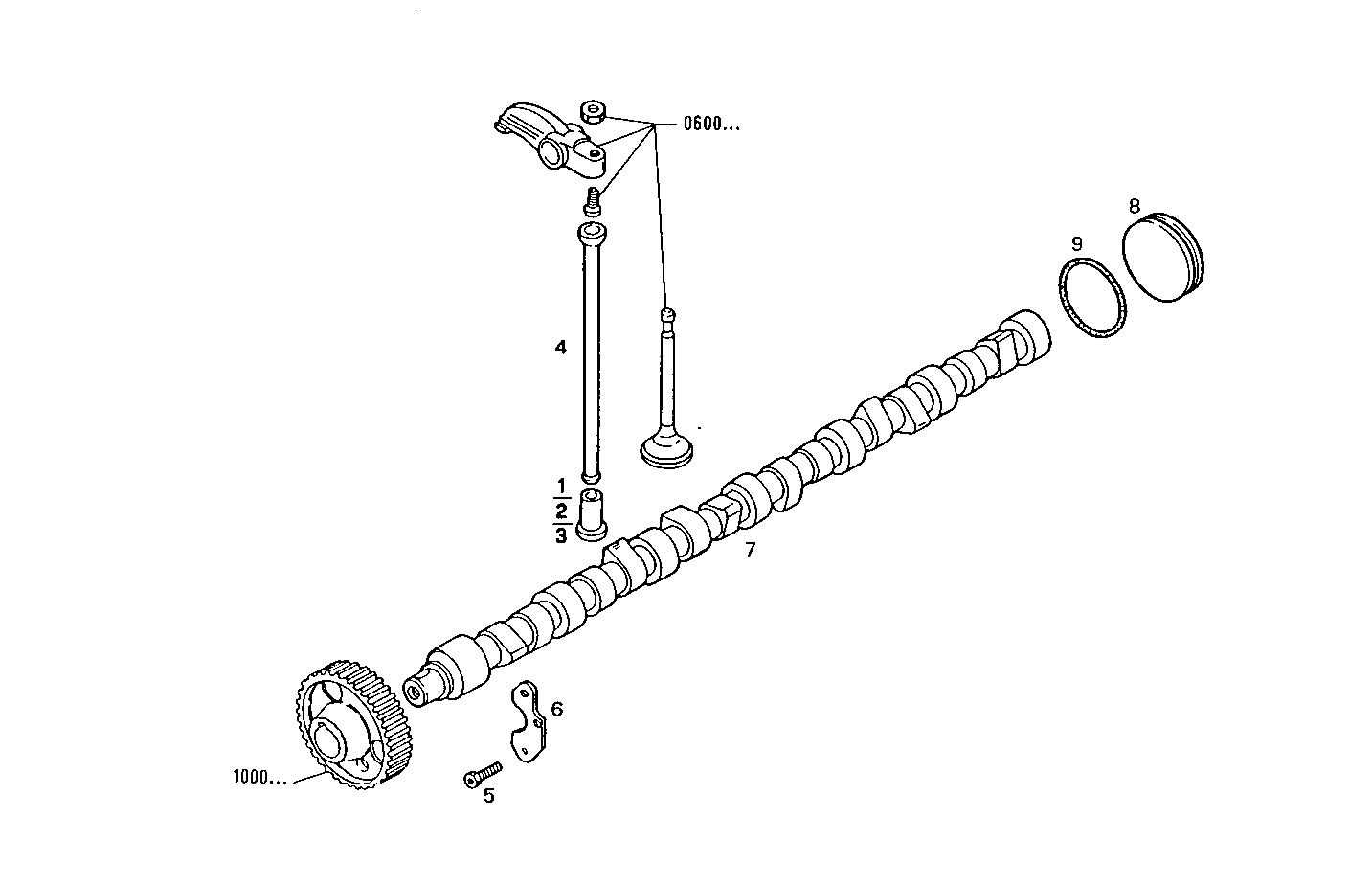

TIMING PARTS
Assembly ID: 1250.053
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61320983 | VALVE TAPPET | 12 | ||
| 2 | 61320985 | VALVE TAPPET | 12 | ||
| 3 | 61320986 | VALVE TAPPET | 12 | ||
| 4 | 61320984 | PUSHROD | 12 | ||
| 5 | 61315669 | HEXAGON BOLT | 2 | ||
| 6 | 61315668 | FLANGE | 1 | ||
| 7 | 61317661 | CAMSHAFT | 1 | ||
| 8 | 61319161 | LOCK PLUG | 1 | ||
| 9 | 14460581 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460M15.12 | 8460M15 | view |
| 8460SM19.12 | 8460SM19 | view |
| 8460SM22.12 | 8460SM22 | view |
| 8460SRM28.12 | 8460SRM28 | view |
| 8460SRM50.10 | 8460SRM50 | view |
| 8460SM19.13 | 8460SM19 | view |
| 8460SRM28.13 | 8460SRM28 | view |
| 8460SM19.13A001 | 8460SM19 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
| 8460SRM50.10A002 | 8460SRM50 | view |
