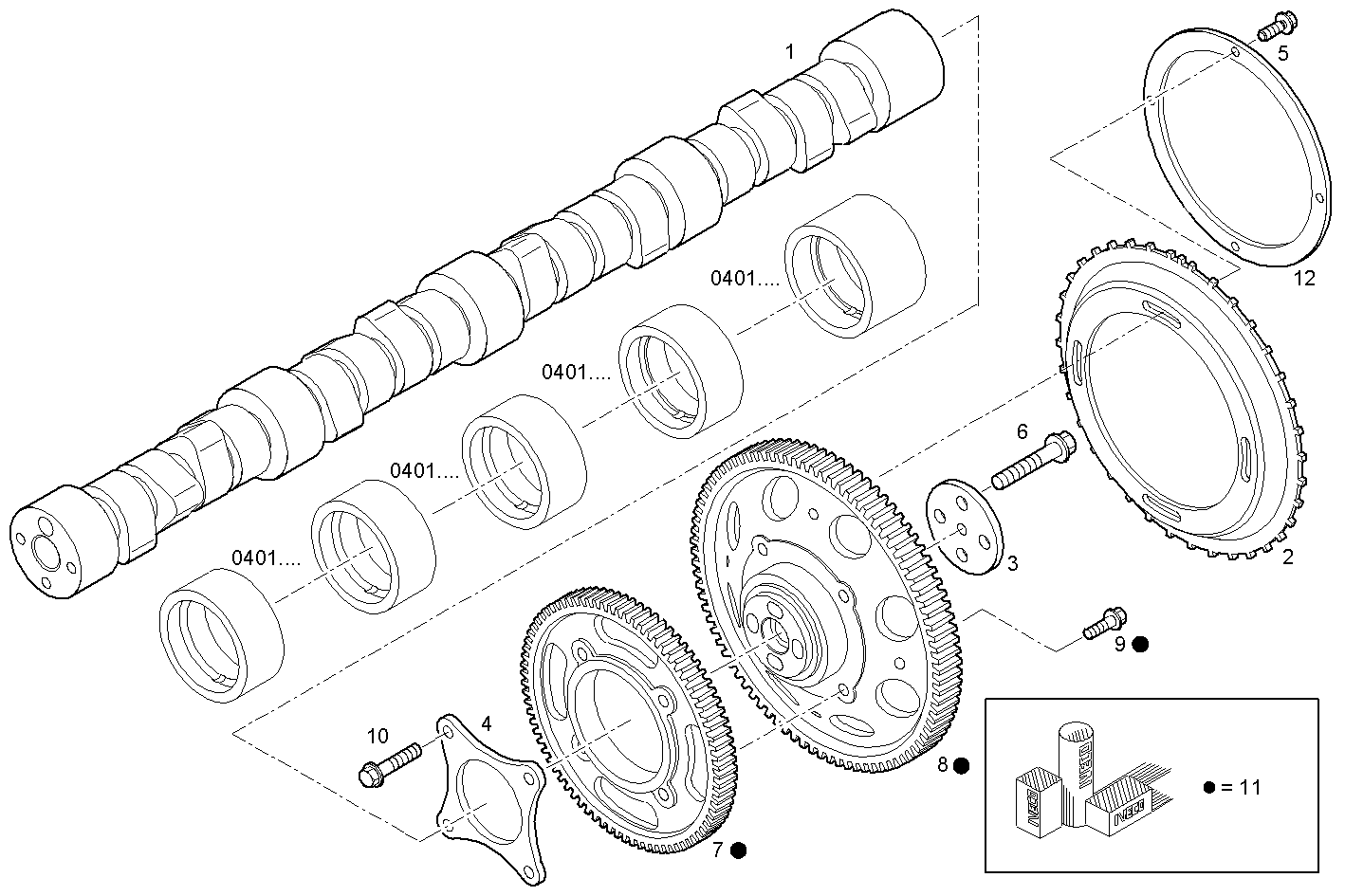

TIMING PARTS
Assembly ID: 1250.087
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504115290 | CAMSHAFT | 1 | ||
| 2 | 504082299 | PLATE | 1 | ||
| 3 | 504036918 | SPACING BAR | 4 | ||
| 4 | 504029690 | PLATE | 1 | ||
| 5 | 504037177 | HEXAGON BOLT | 4 | ||
| 6 | 16678934 | HEXAGON BOLT | 4 | ||
| 7 | 504036031 | CAMSHAFT PINION | 1 | ||
| 8 | 504082423 | TIMING INTERM.GEA | 1 | ||
| 9 | 16675835 | HEXAGON BOLT | 4 | ||
| 10 | 16673635 | HEXAGON BOLT | 4 | ||
| 11 | 504082435 | CAMSHAFT PINION | 1 | ||
| 12 | 504082401 | SPACING BAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A200 | VECTOR 8 | view |
| PPVZ2883X*Q400 | POWER PACK | view |
| FVQE2883X*A201 | VECTOR 8 | view |
| PPVZ2883X*Q440 | POWER PACK | view |
| FVQE2883X*A202 | VECTOR 8 | view |
| V08ENTM11.10D210 | VECTOR 8 | view |
| V08ENTM75.10A210 | VECTOR 8 | view |
| V08ENTM75.10B210 | VECTOR 8 | view |
| V08ENTM75.10B230 | VECTOR 8 | view |
| V08ENTM11.10C210 | VECTOR 8 | view |
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM11.10R210 | VECTOR 8 | view |
| V08ENTM12.10A210 | VECTOR 8 | view |
| V08ENTM12.10B210 | VECTOR 8 | view |
| FVAE2884A*B200 | VECTOR 8 | view |
| FVAE2884X*B200 | VECTOR 8 | view |
| FVQE2883Z*C200 | VECTOR 8 | view |
