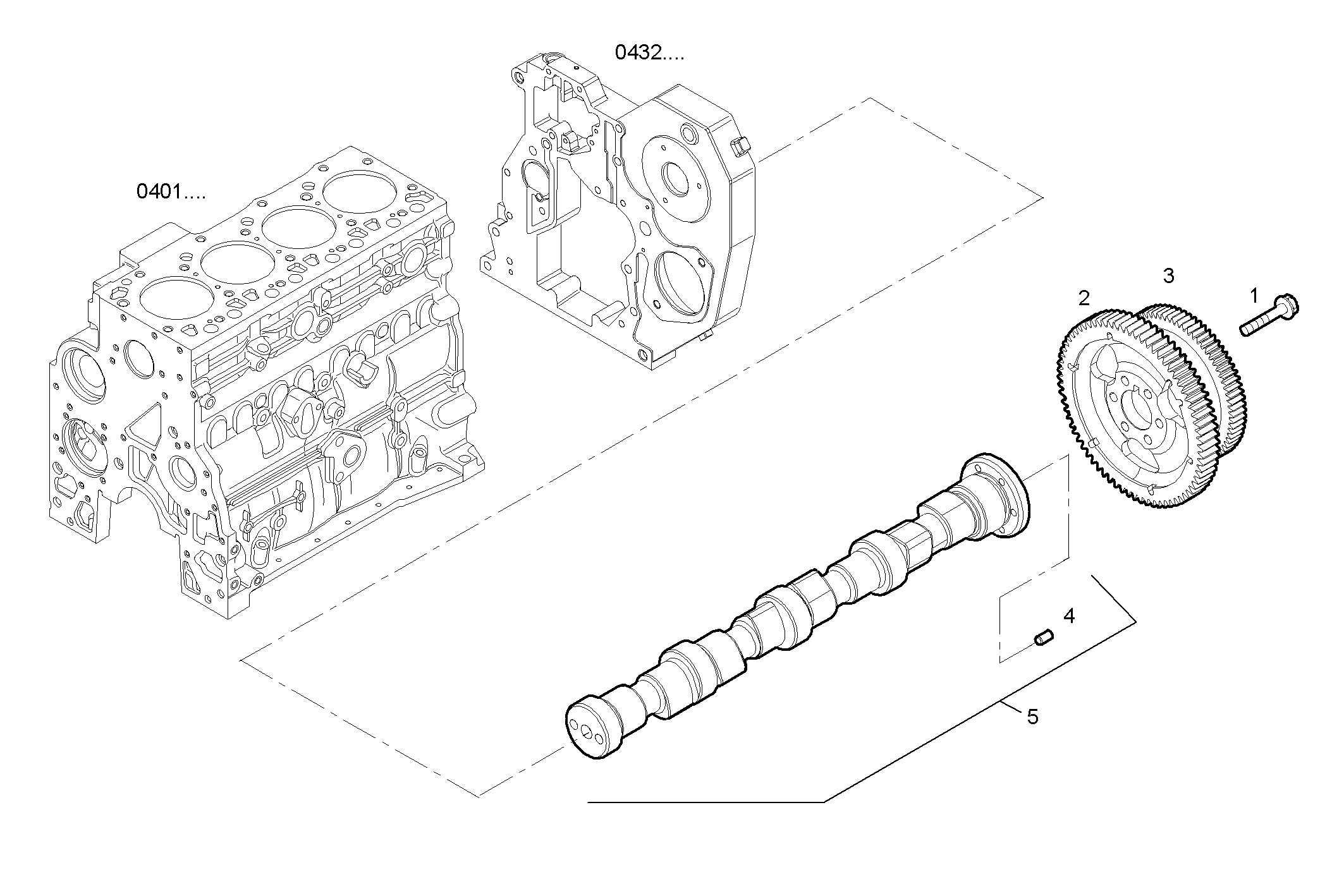

TIMING PARTS
Assembly ID: 1250.109
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4895323 | HEXAGON BOLT | 6 | ||
| 2 | 504124638 | CAMSHAFT PINION | 1 | ||
| 3 | 504091135 | CAMSHAFT PINION | 1 | ||
| 4 | 4899080 | DOWEL PIN | 1 | ||
| 5 | 504101133 | CAMSHAFT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0354C*D601 | NEF 3 - TIER 2 | view |
| F4CE0354A*D600 | NEF 3 - TIER 2 | view |
| F4CE0354C*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D601 | NEF 3 - TIER 2 | view |
| F4CE0304A*D600 | NEF 3 - TIER 2 | view |
