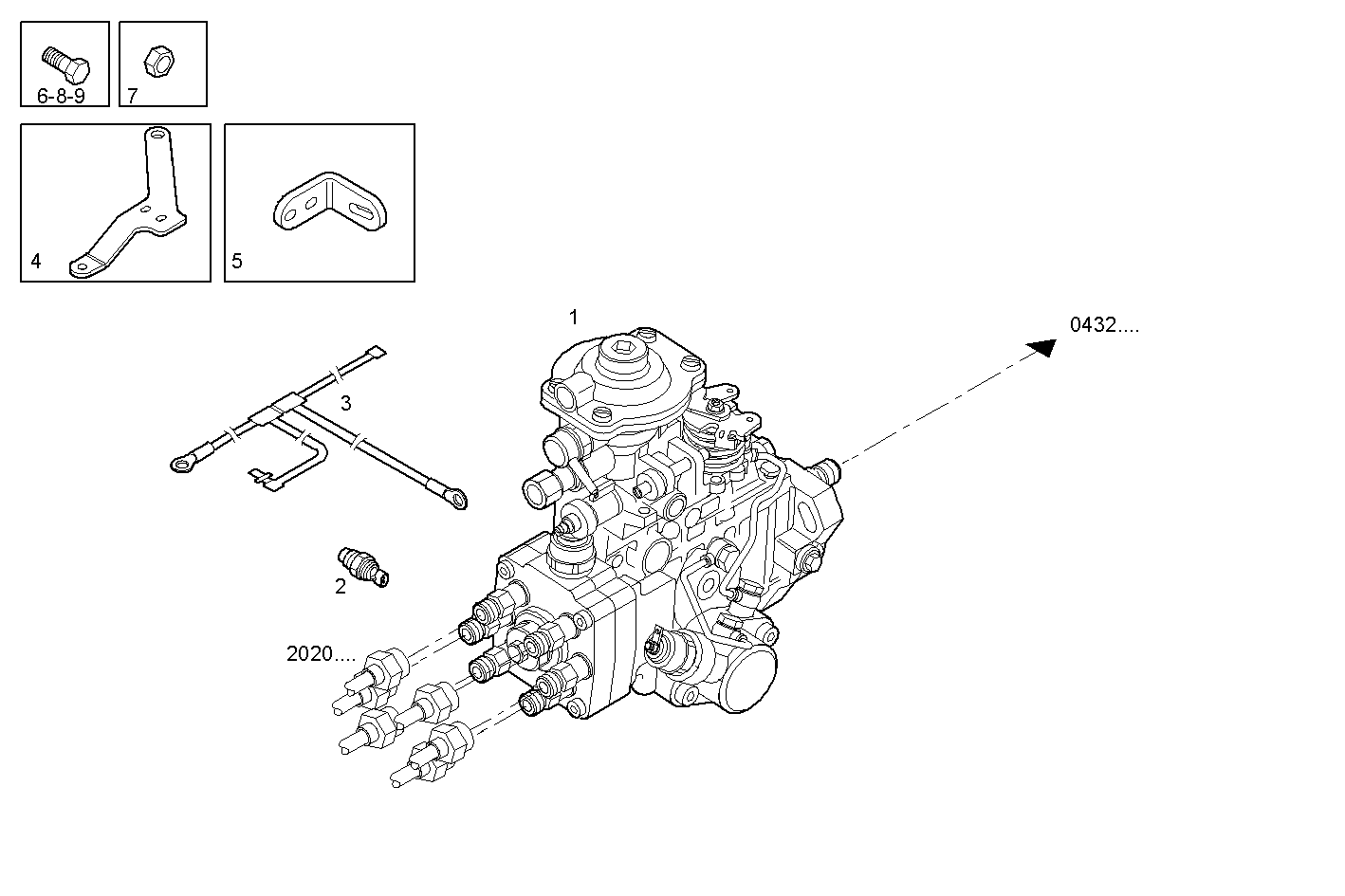

INJECTION PUMP ASSY
Assembly ID: 1400.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504246241 | DISTRIB.INJ.PUMP | 1 | ||
| 2 | 504032877 | SENSOR | 1 | ||
| 3 | 504060728 | WIRE/CABLE | 1 | ||
| 4 | 504242322 | BRACKET | 1 | ||
| 5 | 2830713 | BRACKET | 1 | ||
| 6 | 4899079 | HEXAGON BOLT | 3 | ||
| 7 | 17044735 | NUT | 3 | ||
| 8 | 4895327 | HEXAGON BOLT | 1 | ||
| 9 | 16673635 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
