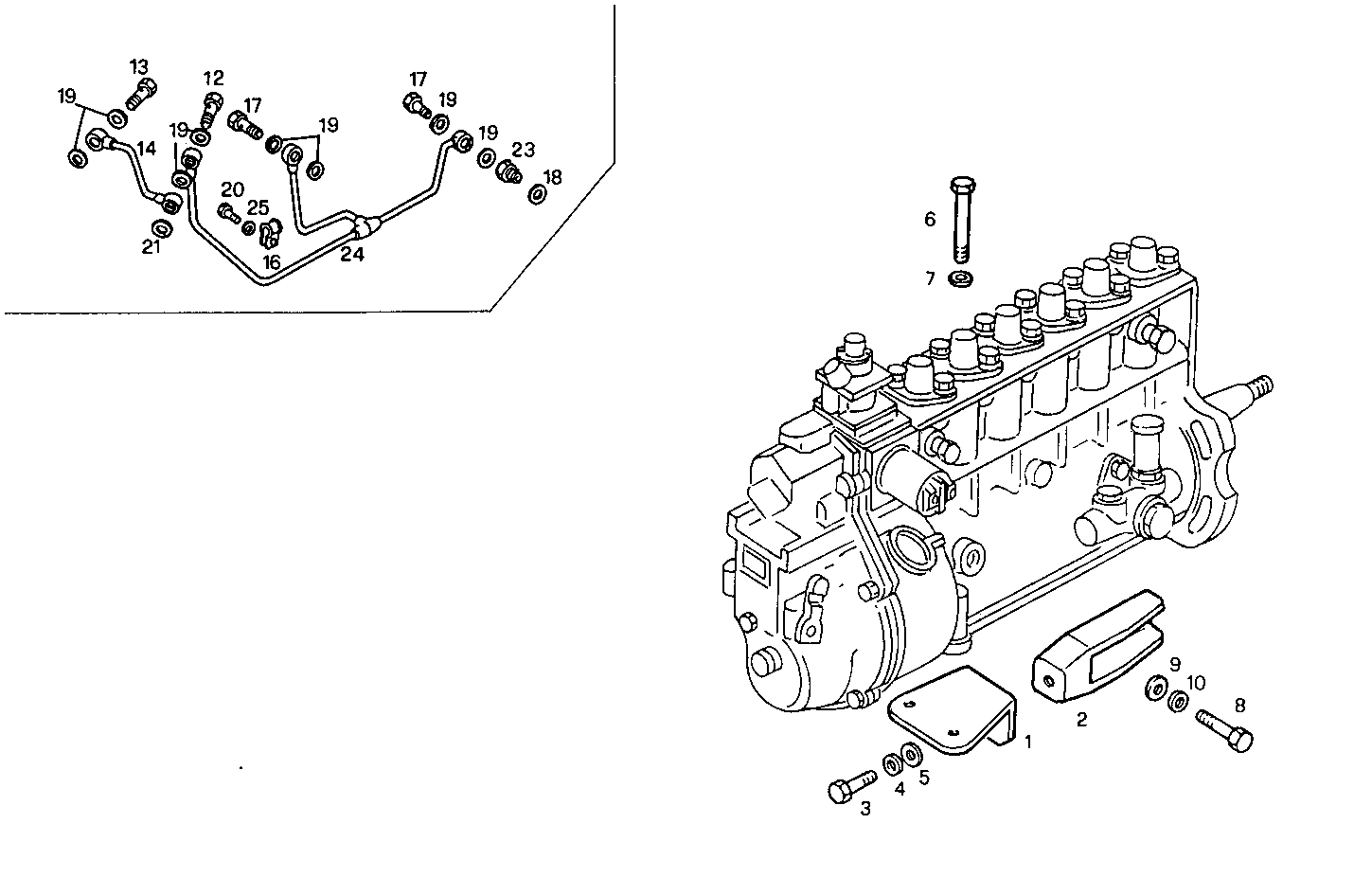

INJECTION PUMP ASSY

Assembly ID: 1400.028

INJECTION PUMP ASSY

Parts

# Part number Description Note Quantity
1 4750518 RETAINER 1
2 4817374 SUPPORT 1
3 15540521 SCREW 1
4 17091174 SPRING WASHER 1
5 12646921 WASHER 1
6 16044921 HEXAGON BOLT 2
7 17089774 SPRING WASHER 2
8 16605824 HEXAGON BOLT 2
9 12646721 WASHER 2
10 17089474 SPRING WASHER 2
12 4930504 SCREW CONNECTOR 1
13 1390713 SCREW CONNECTOR 1
14 4826379 OIL LINE 1
16 10450090 PIPE CLIP 2
17 4864082 BANJO BOLT 2
18 12638660 GASKET 1
19 4858607 WASHER 8
20 16043124 SCREW 2
21 98474306 WASHER 1
23 4858852 PIPE SOCKET 1
24 98430603 OIL LINE 1
25 17089474 SPRING WASHER 2

Applies to engines

Engine Family
GE8361SRi25.00A50L GE8361SRi25 view
GE8361SRi25.00A50S GE8361SRi25 view
GE8361SRi25.00A52S GE8361SRi25 view
GE8361SRi25.00A70E GE8361SRi25 view
GE8361SRi25.00A70L GE8361SRi25 view
GE8361SRi25.00A70S GE8361SRi25 view
GE8361SRi26.00A50L GE8361SRi26 view
GE8361SRi26.00A50S GE8361SRi26 view
GE8361SRi26.00A51S GE8361SRi26 view
GE8361SRi26.00A52L GE8361SRi26 view
GE8361SRi26.00A52S GE8361SRi26 view
GE8361SRi26.00A70E GE8361SRi26 view
GE8361SRi26.00A70L GE8361SRi26 view
GE8361SRi26.00A70S GE8361SRi26 view
GE8361SRi25.06A905 GE8361SRi25 view
GE8361SRi25.06A955 GE8361SRi25 view
GE8361SRi26.06A955 GE8361SRi26 view
GS8361SRi25.06 GS8361SRi25 view
GS8361SRi26.05 GS8361SRi26 view
GS8361SRi25.06A060 GS8361SRi25 view
GS8361SRi25.06A601 GS8361SRi25 view
GS8361SRi25.06A651 GS8361SRi25 view
GS8361SRi26.06A060 GS8361SRi26 view
GS8361SRi26.06A601 GS8361SRi26 view
GS8361SRi26.06A651 GS8361SRi26 view
GS8361SRi26.06A653 GS8361SRi26 view
GE8361SRi26.07A955 GE8361SRi26 view
8361SRi13.00 8361SRi13 view
8361SRi15.02 8361SRi15 view
8361SRi25.00 8361SRi25 view
8361SRi26.00 8361SRi26 view
8361Si11.05 8361Si11 view
8361SRi11.05 8361SRi11 view
8361SRi10.01 8361SRi10 view
8361SRi15.01 8361SRi15 view
8361SRi25.06 8361SRi25 view
8361SRi25.07 8361SRi25 view
8361SRi26.06 8361SRi26 view
8361SRi26.07 8361SRi26 view
8361SRE10.00A004 8361SRE10 view
8361SRE10.00 8361SRE10 view
8361SRi25.05 8361SRi25 view
8361SRi26.05 8361SRi26 view
8361i000.00 8361i000 view
8361i001.00 8361i001 view
8361SRi40.00 8361SRi40 view
8361Si10.00 8361Si10 view
8361Si10.00A029 8361Si10 view
8361SRM38.10 8361SRM38 view
8361SM21.00 8361SM21 view
8361SRM32.00 8361SRM32 view
8361SRM32.40 8361SRM32 view
8361SM21.01 8361SM21 view
8361SRM32.01 8361SRM32 view
8361SRM32.41 8361SRM32 view
8361SRE10.00A800 8361SRE10 view
8361SRi25.00A550 8361SRi25 view
8361SRi25.00A580 8361SRi25 view
8361SRi26.00A550 8361SRi26 view
8361SRi26.00A580 8361SRi26 view
8361SRi25.06A550 8361SRi25 view
8361SRi26.06A550 8361SRi26 view
8361SM21.01A550 8361SM21 view
8361SM21.01A580 8361SM21 view
8361SRM32.01A550 8361SRM32 view
GE8361SRi26.07R970 GE8361SRi26 view
8361SI10.00A802 8361Si10 view
8361SI10.00A801 8361Si10 view
8361SI10.00A800 8361Si10 view
8361SRE10.00A801 8361SRE10 view
8361SRI10.01A801 8361SRi10 view
PU8361SI10.00A100 PU8361SI10 view
PU8361SRE10.00A100 PU8361SRE10 view
