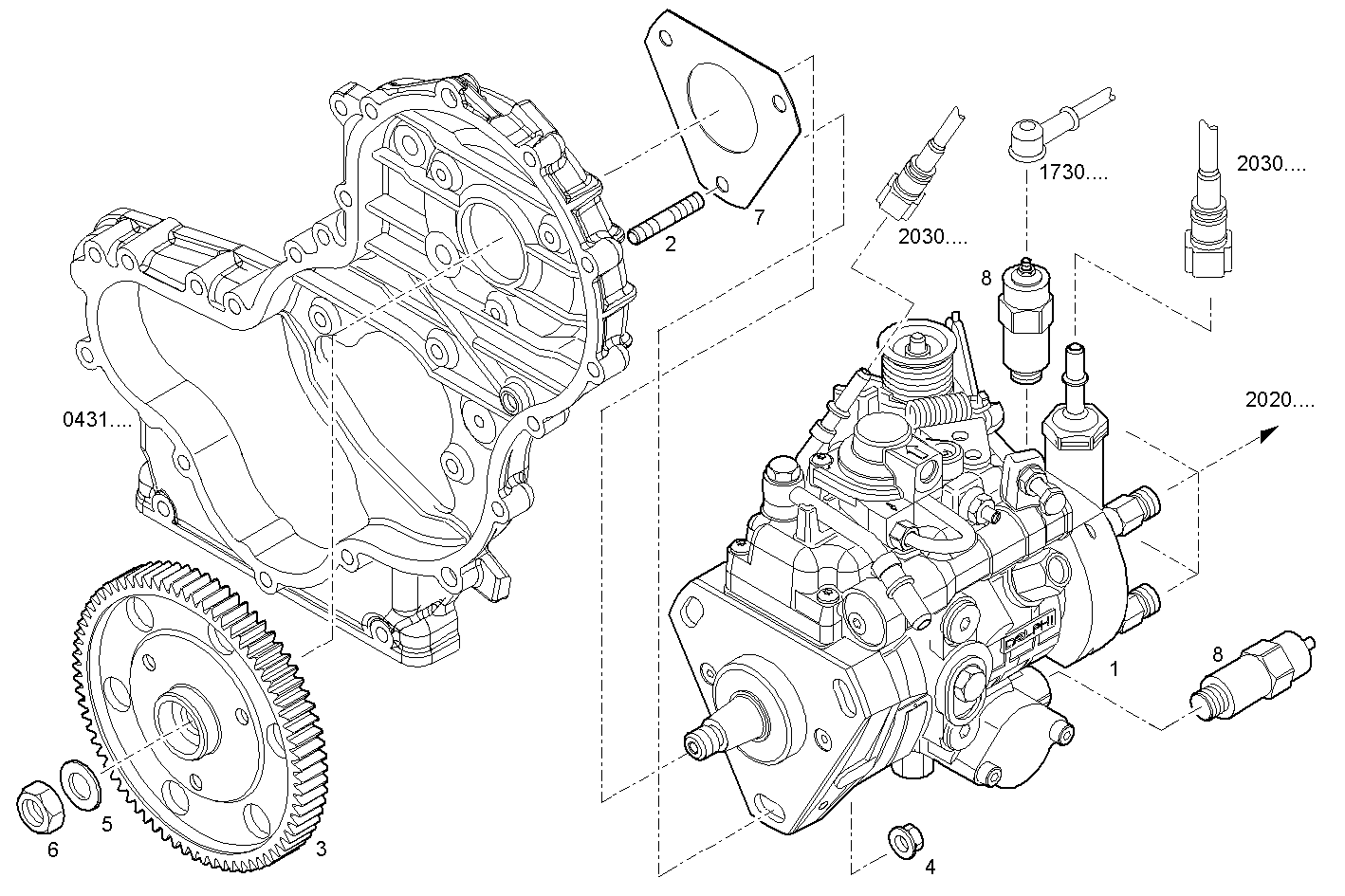

INJECTION PUMP ASSY
Assembly ID: 1400.067
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504290012 | DISTRIB.INJ.PUMP | 1 | ||
| 2 | 504315405 | STUD | 3 | ||
| 3 | 504240405 | INJ.PUMP DRIV.GEA | 1 | ||
| 4 | 500368408 | NUT | 3 | ||
| 5 | 17095401 | WASHER | 1 | ||
| 6 | 16980331 | NUT | 1 | ||
| 7 | 504083433 | FLAT ENGINE GASKET | 1 | ||
| 8 | 8052072 | ELECTROVALVE | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5CE9484E*A001 | F32 mechanic. - TIER 3 | view |
| F32MNTX20.00 | F32 mechanic. - TIER 3 | view |
| F32MNTX20.00A800 | F32 mechanic. - TIER 3 | view |
