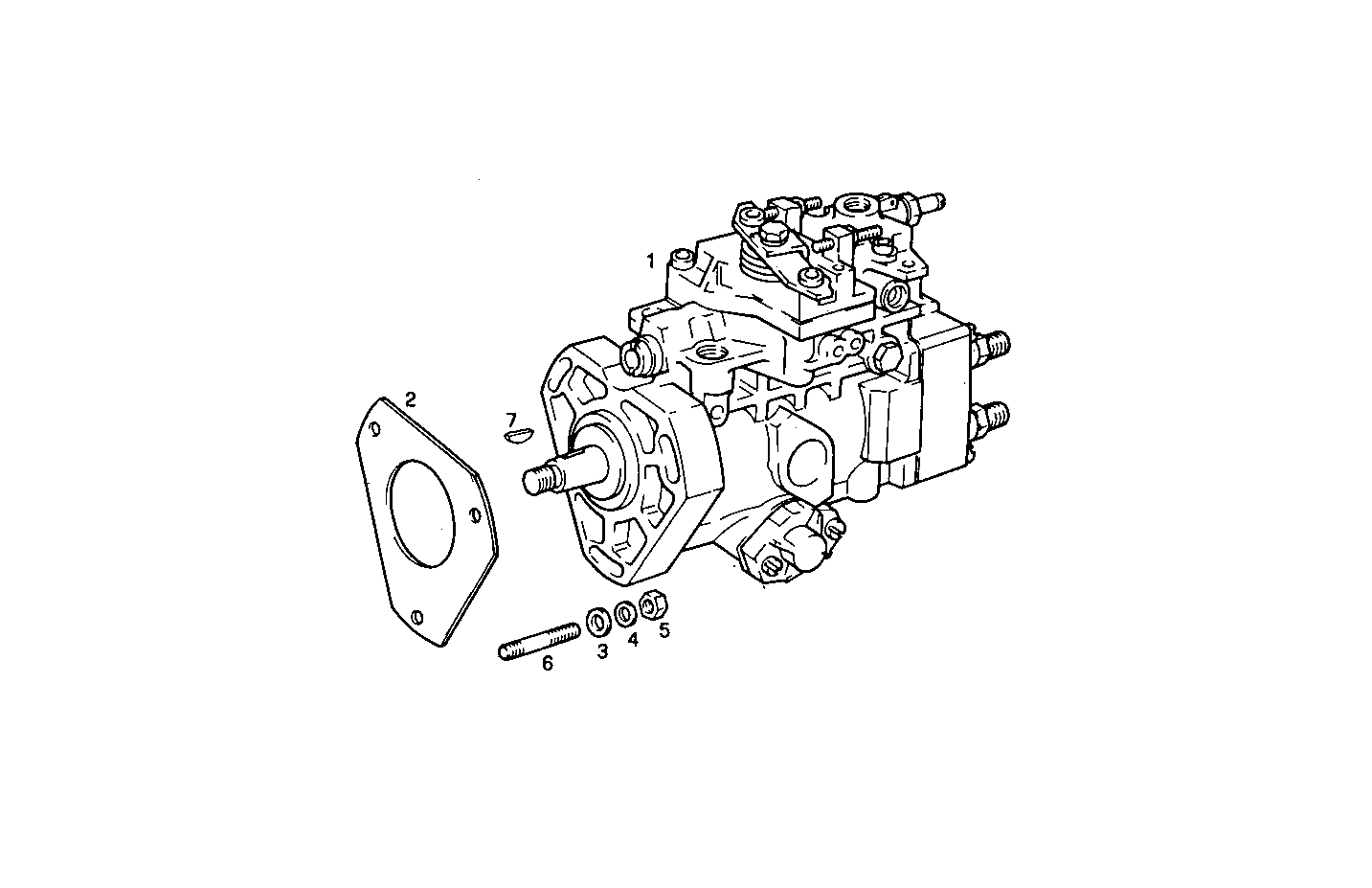

INJECTION PUMP ASSY
Assembly ID: 1400.126
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98490850 | DISTRIB.INJ.PUMP | 1 | ||
| 2 | 98430444 | GASKET | 1 | ||
| 3 | 17094914 | WASHER | 3 | ||
| 4 | 11193874 | WASHER | 3 | ||
| 5 | 17037931 | HEXAGON NUT | 3 | ||
| 6 | 4600631 | STUD | 3 | ||
| 7 | 10206220 | KEY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141.67.2000 | 8141.67 | view |
