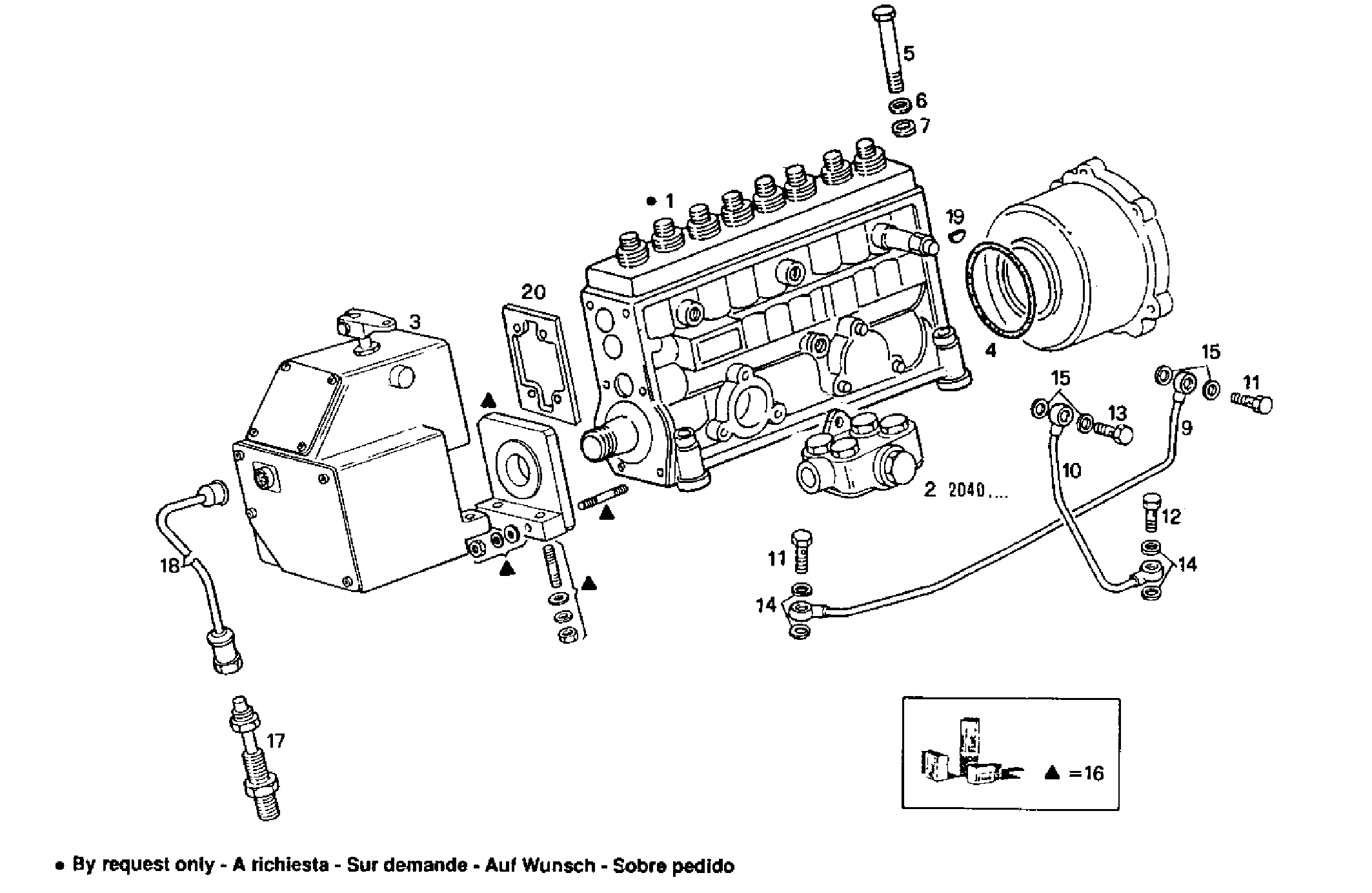

INJECTION PUMP ASSY
Assembly ID: 1400.184
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8010618 | INLINE INJECT.PUMP | 1 | ||
| 2 | 93160510 | FUEL PUMP | 1 | ||
| 3 | 8029133 | ENGINE ACTUATOR | 1 | ||
| 4 | 14466081 | O-RING | 1 | ||
| 5 | 15971330 | HEXAGON BOLT | 4 | ||
| 6 | 17090274 | WASHER | 4 | ||
| 7 | 756671 | WASHER | 4 | ||
| 9 | 98420453 | OIL LINE | 1 | ||
| 10 | 98420456 | OIL LINE | 1 | ||
| 11 | 4864083 | SCREW CONNECTOR | 2 | ||
| 12 | 4864080 | SCREW CONNECTOR | 1 | ||
| 13 | 4864079 | SCREW CONNECTOR | 1 | ||
| 14 | 98474305 | WASHER | 4 | ||
| 15 | 98474308 | SEAL GASKET | 4 | ||
| 16 | 8018343 | SPEED-GOVERNOR-KIT | 1 | ||
| 17 | 8018673 | PICK-UP | 1 | ||
| 18 | 8018575 | ENGINE HARNESS | 1 | ||
| 19 | 10205720 | KEY | 1 | ||
| 20 | 8093808 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281SRi26.02A560 | 8281SRi26 | view |
| GE8281SRi26.02A955 | GE8281SRi26 | view |
| GS8281SRi26.02 | GS8281SRi26 | view |
| 8281SRi26.02 | 8281SRi26 | view |
| 8281SRi26.02A550 | 8281SRi26 | view |
| 8281SRi26.02A580 | 8281SRi26 | view |
| GE8281SRi26.02N970 | GE8281SRi26 | view |
| GE8281SRi26.02R970 | GE8281SRi26 | view |
