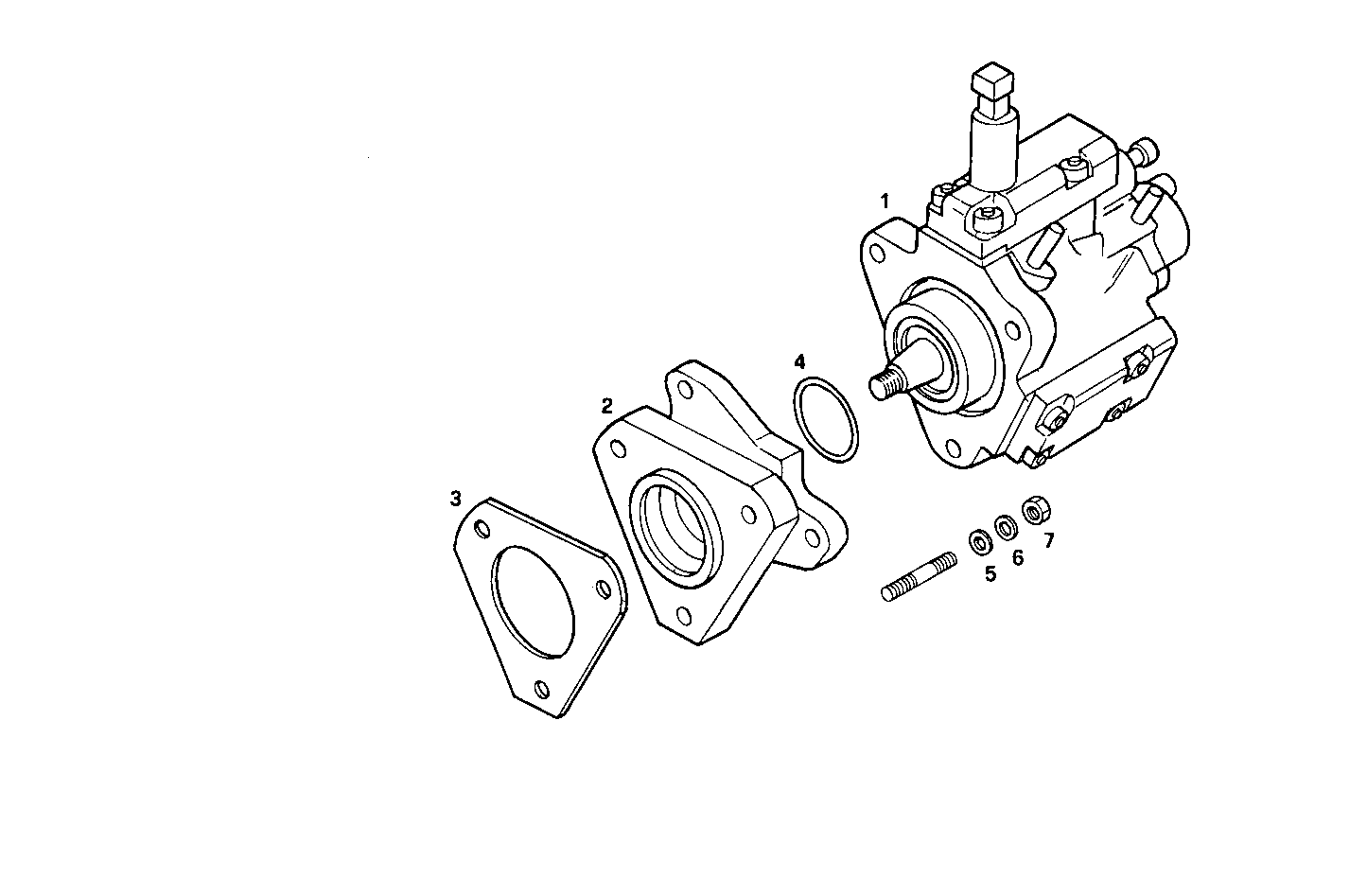

INJECTION PUMP ASSY
Assembly ID: 1400.289
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500366314 | HIGH PRESSURE PUMP | 1 | ||
| 2 | 500354490 | SUPPORT | 1 | ||
| 3 | 4851923 | FLAT ENGINE GASKET | 1 | ||
| 4 | 500319674 | O-RING | 1 | ||
| 5 | 17094914 | WASHER | 3 | ||
| 6 | 17089474 | SPRING WASHER | 3 | ||
| 7 | 17037931 | HEXAGON NUT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRM15.10 | 8140SRM15 | view |
