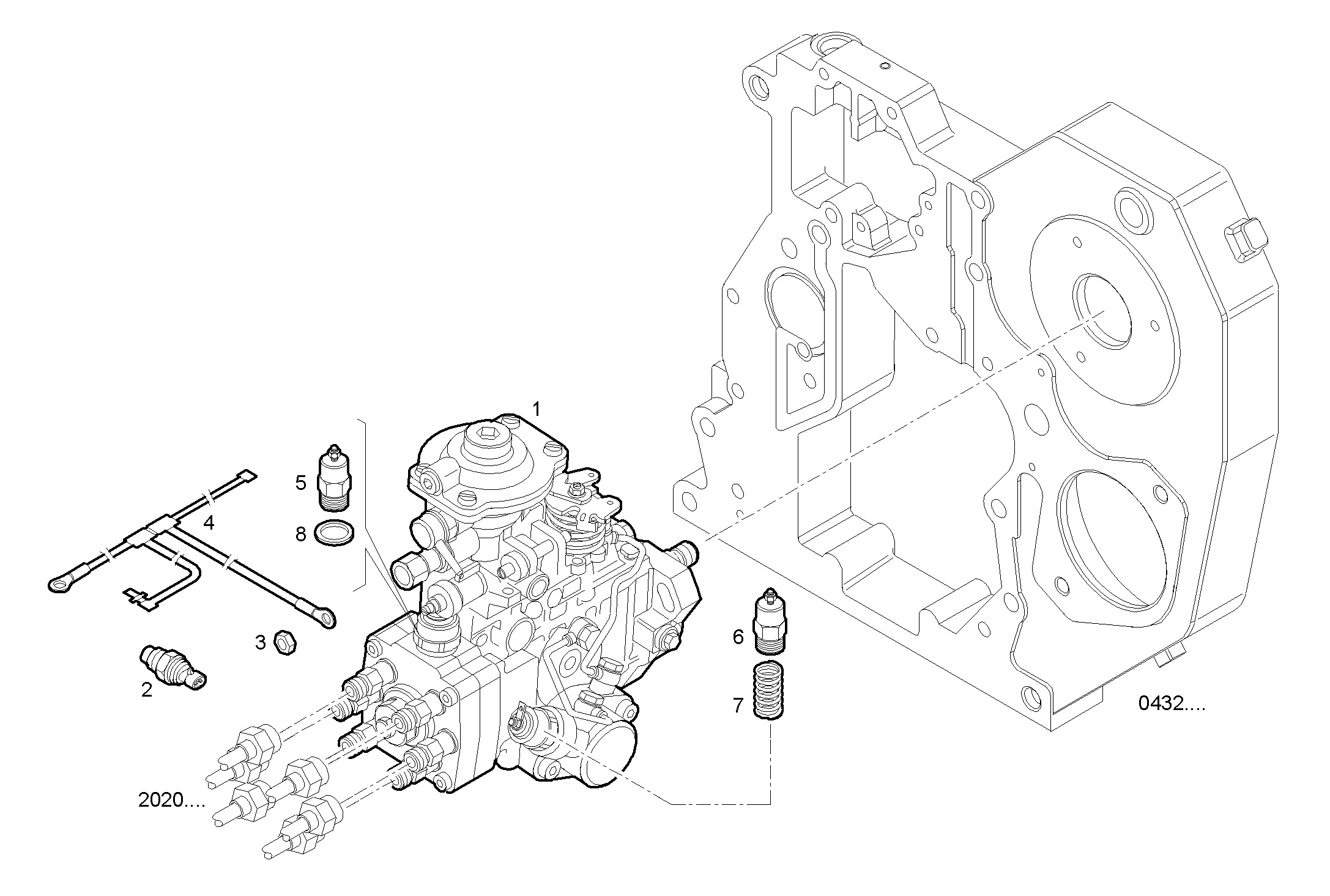

INJECTION PUMP ASSY
Assembly ID: 1400.384
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504060083 | DISTRIB.INJ.PUMP | 1 | ||
| 2 | 504032877 | SENSOR | 1 | ||
| 3 | 16979231 | HEXAGON NUT | 2 | ||
| 4 | 504060728 | WIRE/CABLE | 1 | ||
| 5 | 42533181 | ELECTROVALVE | 1 | ||
| 6 | 93192974 | MAGNETO | 1 | ||
| 7 | 93193371 | SPRING | 1 | ||
| 8 | 9008558 | RUBBER RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0684G*D602 | NEF 6 mechanic. - TIER 2 | view |
