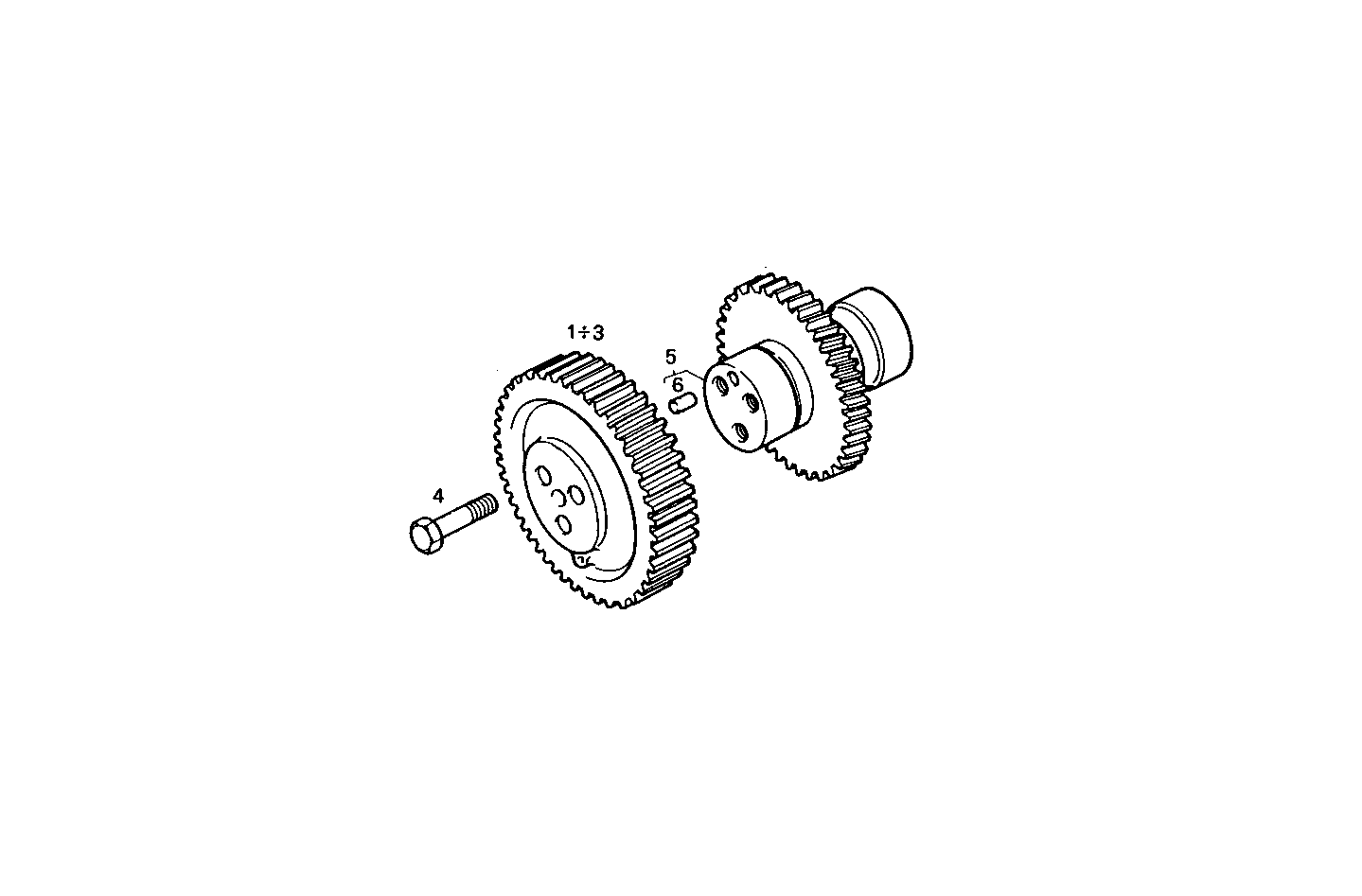

INJECTION PUMP DRIVE
Assembly ID: 1410.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4752888 | INJ.PUMP DRIV.GEA | 1 | ||
| 2 | 98415210 | INJ.PUMP DRIV.GEA | 1 | ||
| 3 | 99434613 | INJ.PUMP DRIV.GEA | 1 | ||
| 4 | 14337521 | LOCKING SCREW | 3 | ||
| 5 | 7300499 | INJECT.PUMP SPIND | 1 | ||
| 6 | 10335910 | PARALLEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141i07.00 | 8141i07 | view |
| 8141i07.01 | 8141i07 | view |
