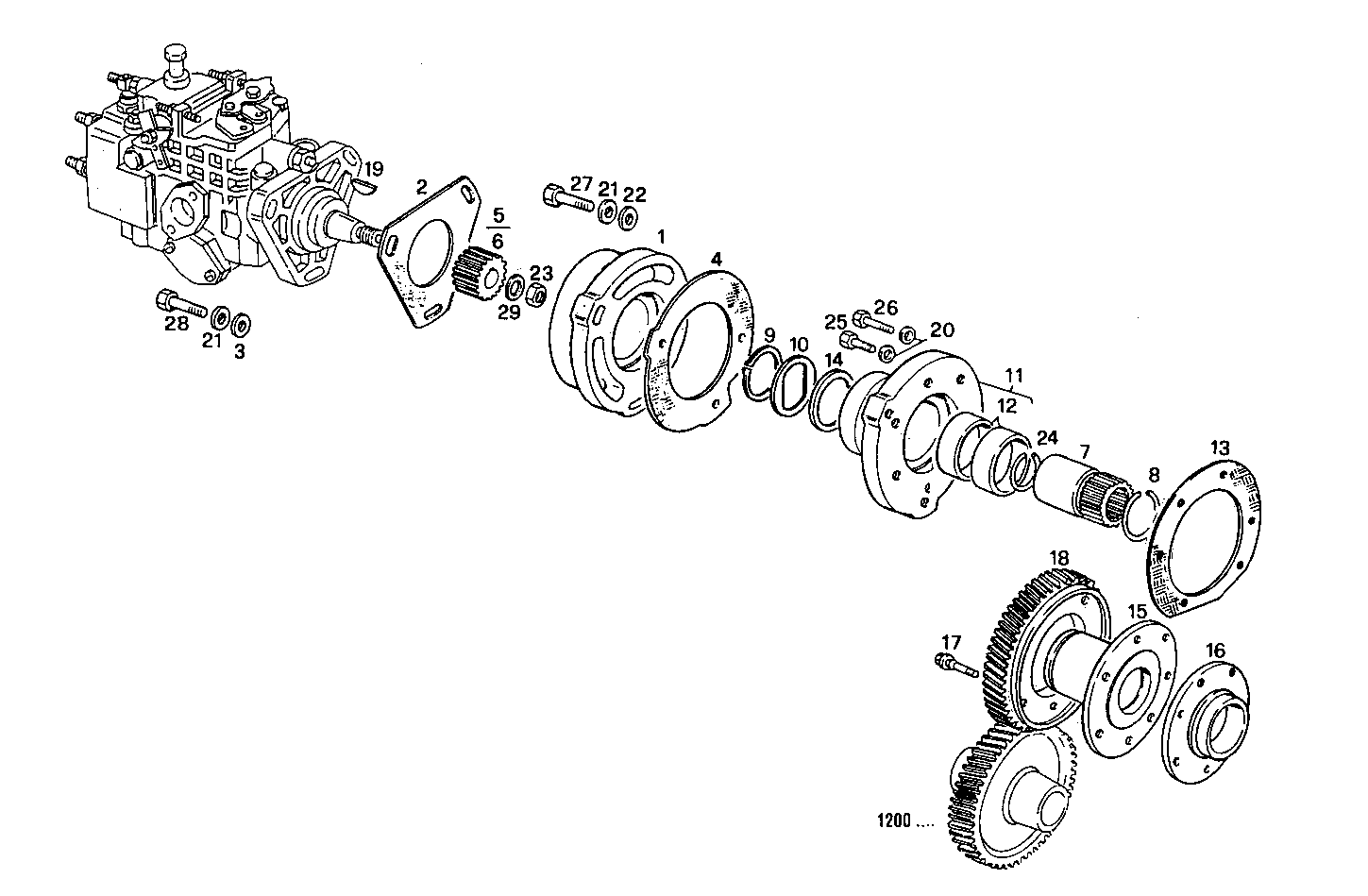

INJECTION PUMP DRIVE

Assembly ID: 1410.027

INJECTION PUMP DRIVE

Parts

# Part number Description Note Quantity
1 4799016 SPACING BAR 1
2 4851923 FLAT ENGINE GASKET 1
3 12647124 WASHER 3
4 4851922 FLAT ENGINE GASKET 1
5 4799342 INJECT.PUMP BUSH 1
6 4807014 INJECT.PUMP BUSH 1
7 4799061 INJECT.PUMP BUSH 1
8 4770452 CIRCLIP 1
9 4708213 CIRCLIP 1
10 4667498 WASHER 1
11 4769710 SUPPORT 1
12 4769427 BUSH 2
13 4849996 FLAT ENGINE GASKET 1
14 4809425 WASHER 1
15 4769600 INJECT.PUMP SPIND 1
16 4788909 INJECT.PUMP SLEEVE 1
17 4798844 SCREW 8
18 4769596 INJ.PUMP DRIV.GEA 1
19 10205810 KEY 1
20 17094914 WASHER 6
21 17089474 SPRING WASHER 6
22 12647124 WASHER 3
23 17038821 HEXAGON NUT 1
24 17085376 CIRCLIP 1
25 16043321 HEXAGON BOLT 1
26 16605624 HEXAGON BOLT 5
27 16605734 HEXAGON BOLT 3
28 16605824 HEXAGON BOLT 3
29 4799086 SPRING WASHER 1

Applies to engines

Engine Family
GE8061i25.05A905 GE8061i25 view
GE8061i06.05A905 GE8061i06 view
GS8061i25.05 GS8061i25 view
GE8061i06.05A955 GE8061i06 view
GS8061i25.05A061 GS8061i25 view
GS8061i25.05A601 GS8061i25 view
GS8061i25.05A602 GS8061i25 view
GS8061i25.05A603 GS8061i25 view
GS8061i06.05A612 GS8061i06 view
GS8061i06.05A614 GS8061i06 view
8061i25.00 8061i25 view
8061i25.05 8061i25 view
8061i40.05 8061i40 view
8061i06.05 8061i06 view
8061i06.05A520 8061i06 view
8061M12.00 8061M12 view
8061M12.43 8061M12 view
8061M12.01 8061M12 view
8061M12.02 8061M12 view
8061M12.21 8061M12 view
8061M12.22 8061M12 view
8061M12.40 8061M12 view
8061M12.42 8061M12 view
PU8061i25.05A100 PU8061i25 view
8061i25.05A500 8061i25 view
8061i25.05A520 8061i25 view
8061i25.05A652 8061i25 view
8061i25.05A651 8061i25 view
8061i06.05A500 8061i06 view
8061i06.05A520 8061i06 view
8061i06.05A501 8061i06 view
8061i06.05A550 8061i06 view
8061i06.05A521 8061i06 view
GE8061i06.05N900 GE8061i06 view
GE8061i06.05N920 GE8061i06 view
GE8061i06.05R900 GE8061i06 view
GE8061i06.05R920 GE8061i06 view
