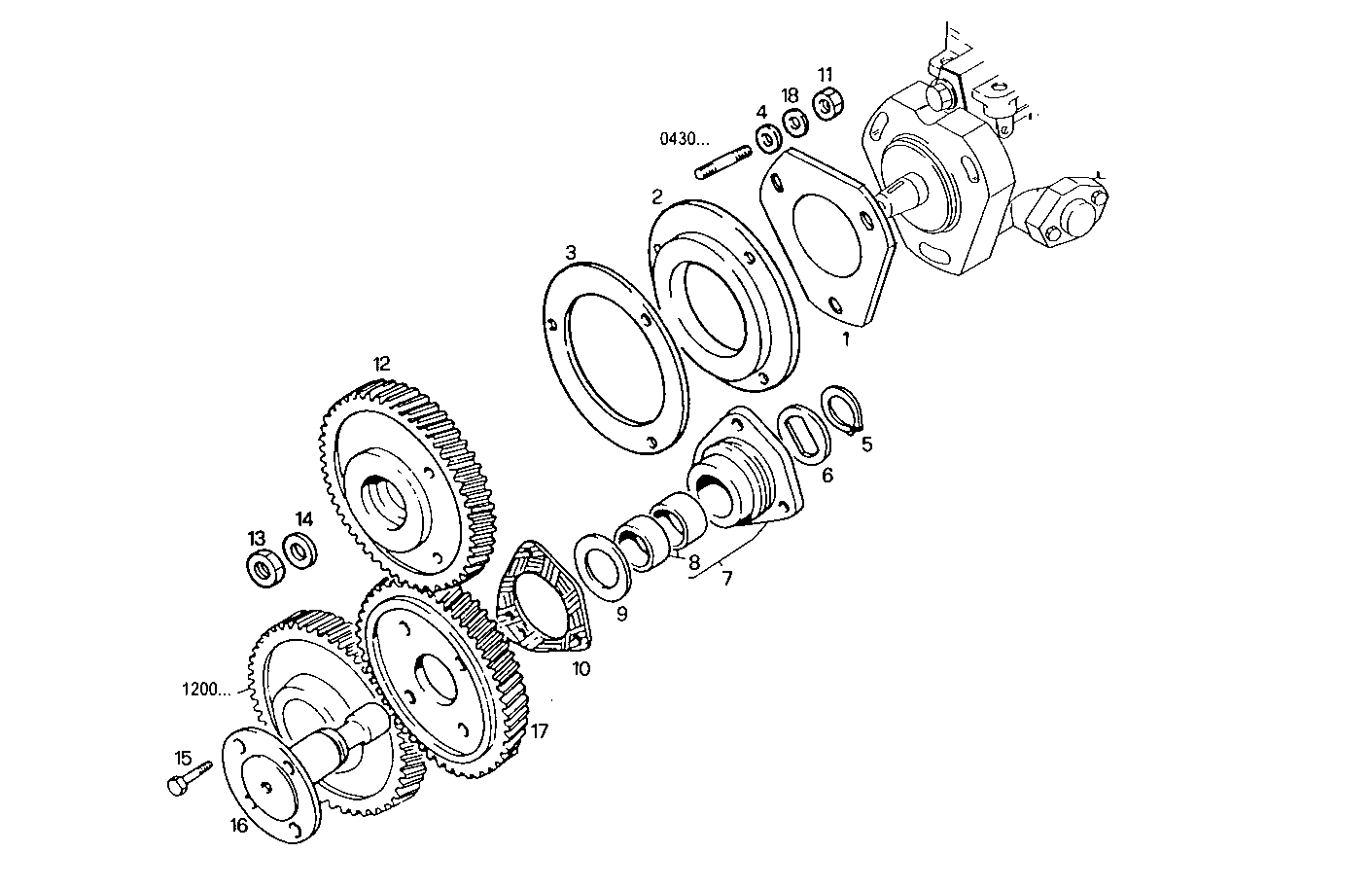

INJECTION PUMP DRIVE
Assembly ID: 1410.091
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4851923 | FLAT ENGINE GASKET | 1 | ||
| 2 | 4607646 | FLANGE | 1 | ||
| 3 | 98400782 | FLAT ENGINE GASKET | 1 | ||
| 4 | 12647124 | WASHER | 3 | ||
| 5 | 4769420 | CIRCLIP | 1 | ||
| 6 | 4769419 | WASHER | 1 | ||
| 7 | 4784055 | SUPPORT | 1 | ||
| 8 | 4769418 | BUSH | 2 | ||
| 9 | 4667452 | SUPPORT RING | 1 | ||
| 10 | 98400787 | FLAT ENGINE GASKET | 2 | ||
| 11 | 17037931 | HEXAGON NUT | 3 | ||
| 12 | 500309465 | GEAR | 1 | ||
| 13 | 17038821 | HEXAGON NUT | 1 | ||
| 14 | 11194179 | SPRING WASHER | 1 | ||
| 15 | 4798845 | SCREW | 4 | ||
| 16 | 4784054 | INJECT.PUMP SPIND | 1 | ||
| 17 | 4770056 | INJ.PUMP DRIV.GEA | 1 | ||
| 18 | 17089474 | SPRING WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8045SRE10.50 | 8045SRE10 | view |
| 8045SRE10.00 | 8045SRE10 | view |
| 8045SE00.50 | 8045SE00 | view |
| 8045SE00.00 | 8045SE00 | view |
| 8045SE00.00A800 | 8045SE00 | view |
| 8045SE00.00A801 | 8045SE | view |
