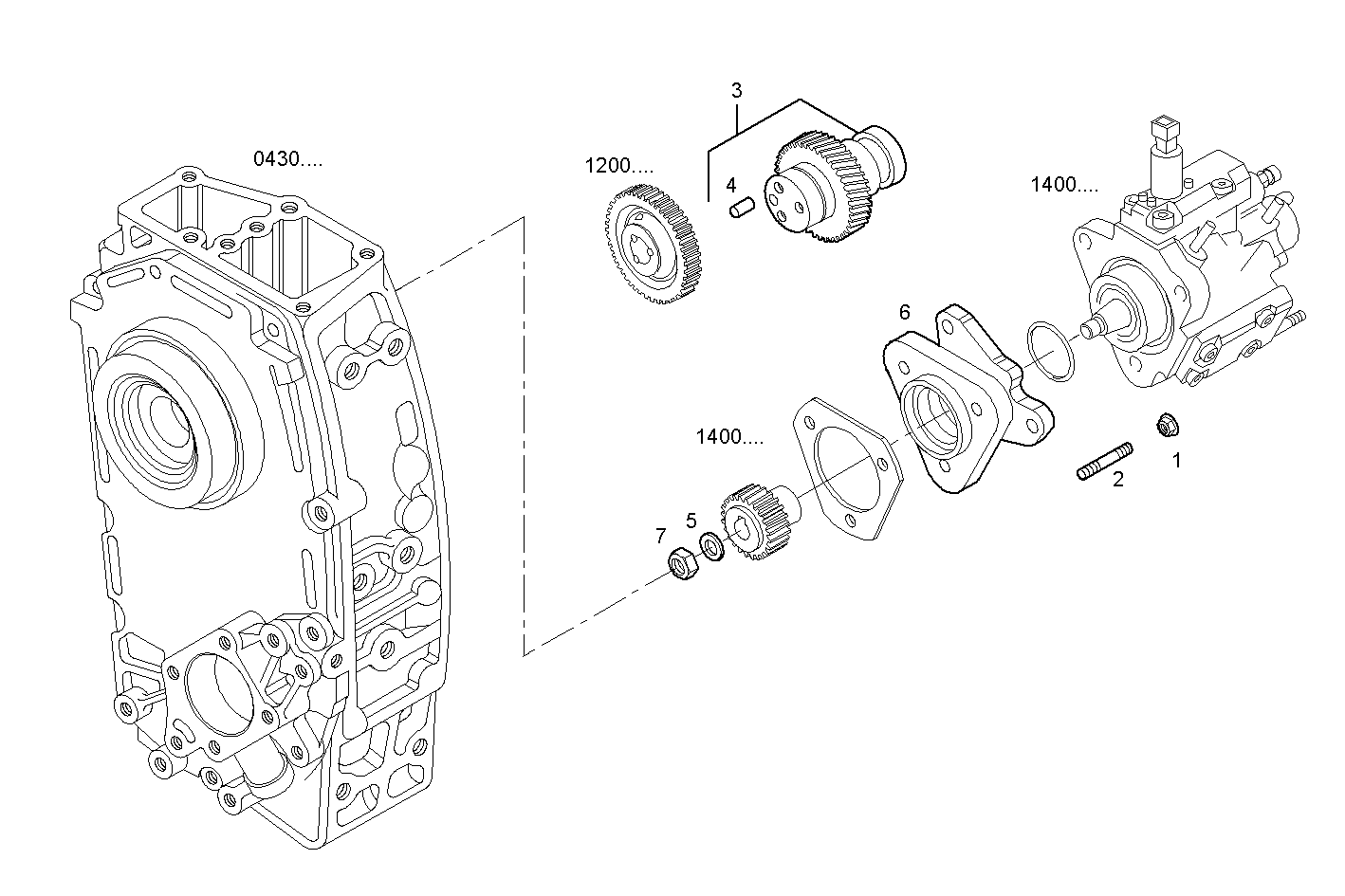

INJECTION PUMP DRIVE
Assembly ID: 1410.131
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99486343 | HEXAGON NUT | 3 | ||
| 2 | 16746824 | STUD | 3 | ||
| 3 | 99483335 | INJECT.PUMP SPIND | 1 | ||
| 4 | 10335910 | PARALLEL PIN | 1 | ||
| 5 | 768389 | CIRCLIP | 1 | ||
| 6 | 500354490 | SUPPORT | 1 | ||
| 7 | 7303345 | NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140.43F.3800 | 8140.43 | view |
| 8140SRC31.35 - 1C | 8140SRC31 | view |
| 8140SRC31.35A001- 1D | 8140SRC31 | view |
| 8140SRC31.35L002- 1D | 8140SRC31 | view |
