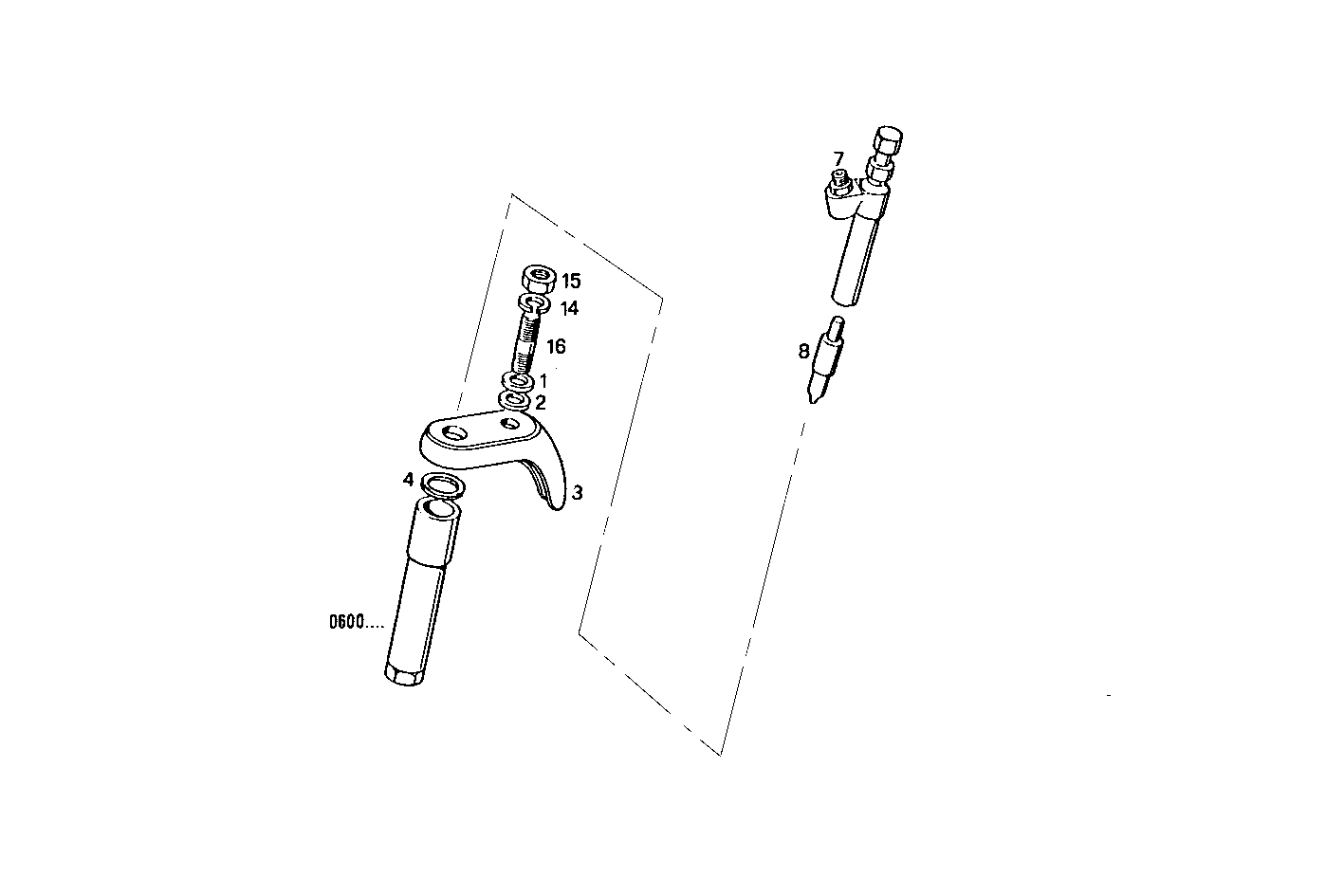

INJECTORS
Assembly ID: 1420.013
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 756671 | WASHER | 6 | ||
| 2 | 757265 | WASHER | 6 | ||
| 3 | 764099 | RETAINER | 6 | ||
| 4 | 767111 | WASHER | 6 | ||
| 7 | 770879 | NOZZLE HOLDER | 6 | ||
| 8 | 1907671 | FUEL NOZZLE | 6 | ||
| 14 | 17090274 | WASHER | 6 | ||
| 15 | 17038221 | HEXAGON NUT | 6 | ||
| 16 | 13450530 | STUD | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210M22.10A64S | GE8210M22 | view |
| 8210i03.00 | 8210i03 | view |
| 8210M22.10 | 8210M22 | view |
| 8210M22.30 | 8210M22 | view |
| 8210M22.30A003 | 8210M22 | view |
| 8210M22.30A001 | 8210M22 | view |
| PU8210i03.00A103 | PU8210i03 | view |
| 8210i03.00A500 | 8210i03 | view |
| 8210i03.00A520 | 8210i03 | view |
| 8210i03.00A550 | 8210i03 | view |
| 8210i03.00A580 | 8210i03 | view |
| PU8210I03.00A106 | PU8210i03 | view |
| PU8210I03.00A102 | PU8210i03 | view |
| PU8210I03.00A100 | PU8210i03 | view |
