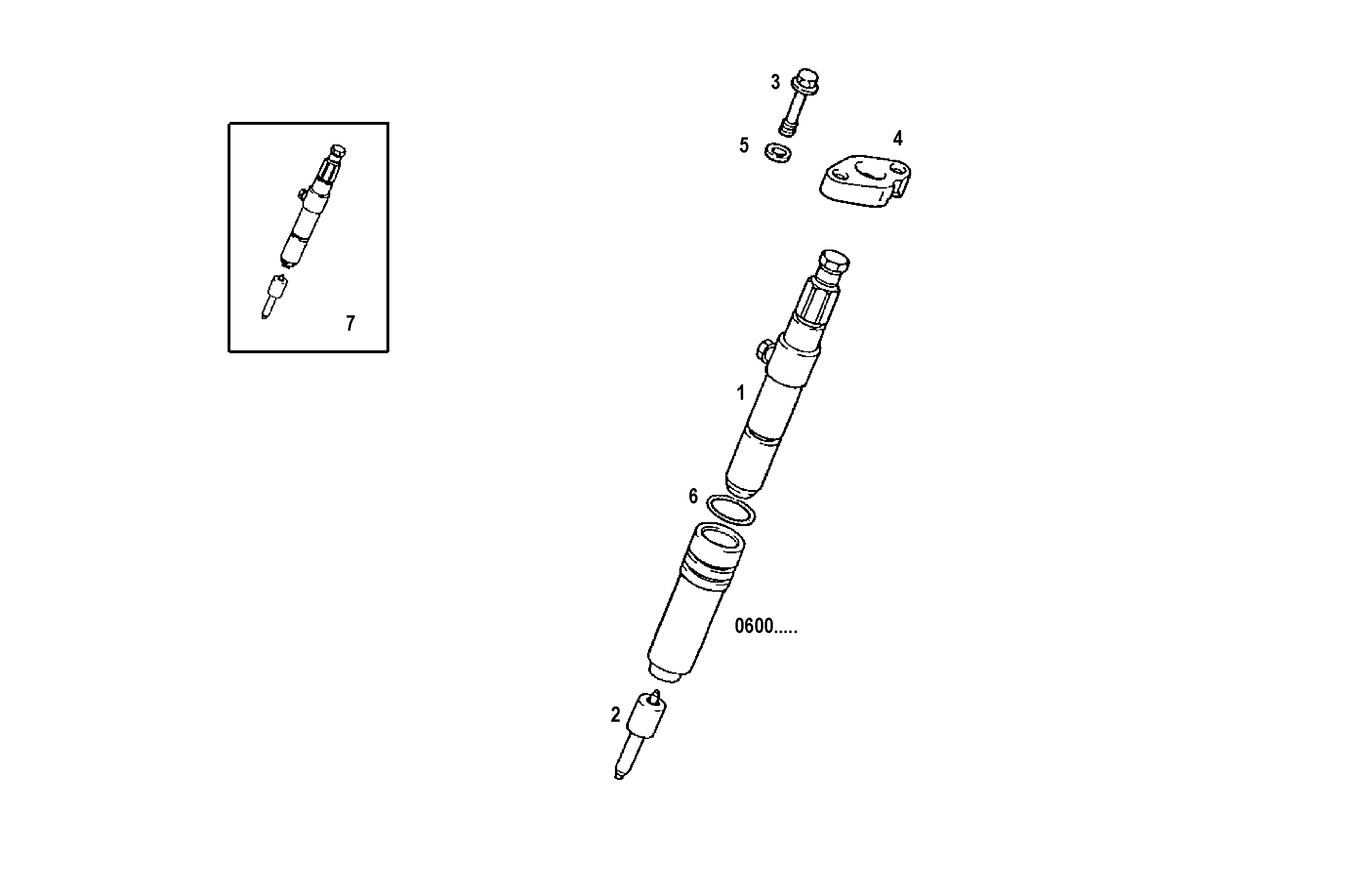

INJECTORS
Assembly ID: 1420.044
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98404700 | NOZZLE HOLDER | 6 | ||
| 2 | 98418591 | FUEL NOZZLE | 6 | ||
| 3 | 16288824 | HEXAGON BOLT | 12 | ||
| 4 | 98406199 | FASTENING BRACKET | 6 | ||
| 5 | 4700162 | WASHER | 12 | ||
| 6 | 17278581 | O-RING | 6 | ||
| 7 | 98418590 | NOZZLE | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
