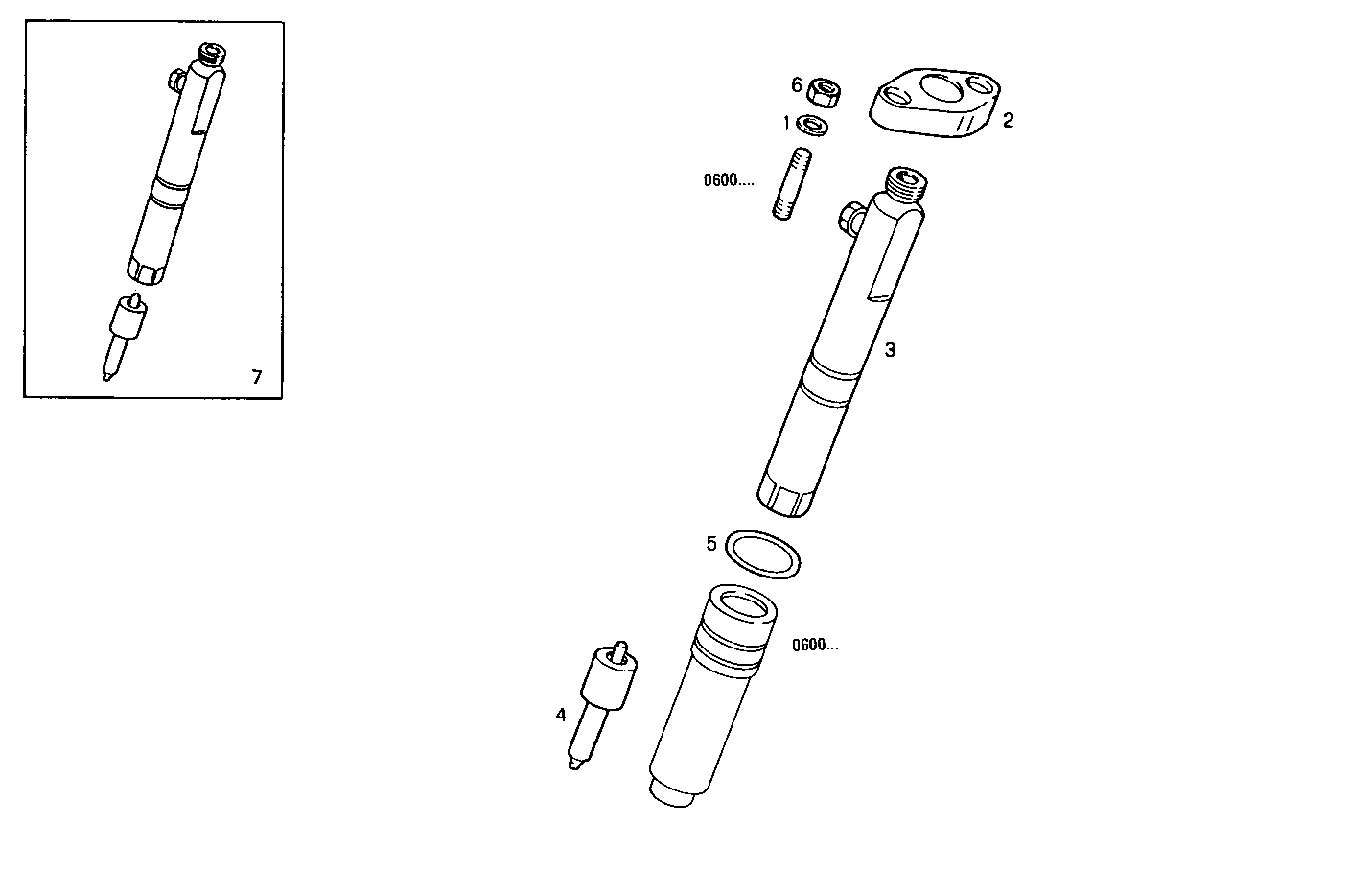

INJECTORS
Assembly ID: 1420.052
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 771326 | WASHER | 12 | ||
| 2 | 4780612 | FASTENING BRACKET | 6 | ||
| 3 | 774950 | NOZZLE HOLDER | 6 | ||
| 4 | 8016783 | FUEL NOZZLE | 6 | ||
| 5 | 17278581 | O-RING | 6 | ||
| 6 | 17037931 | HEXAGON NUT | 12 | ||
| 7 | 8015805 | NOZZLE | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SM20.42 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
