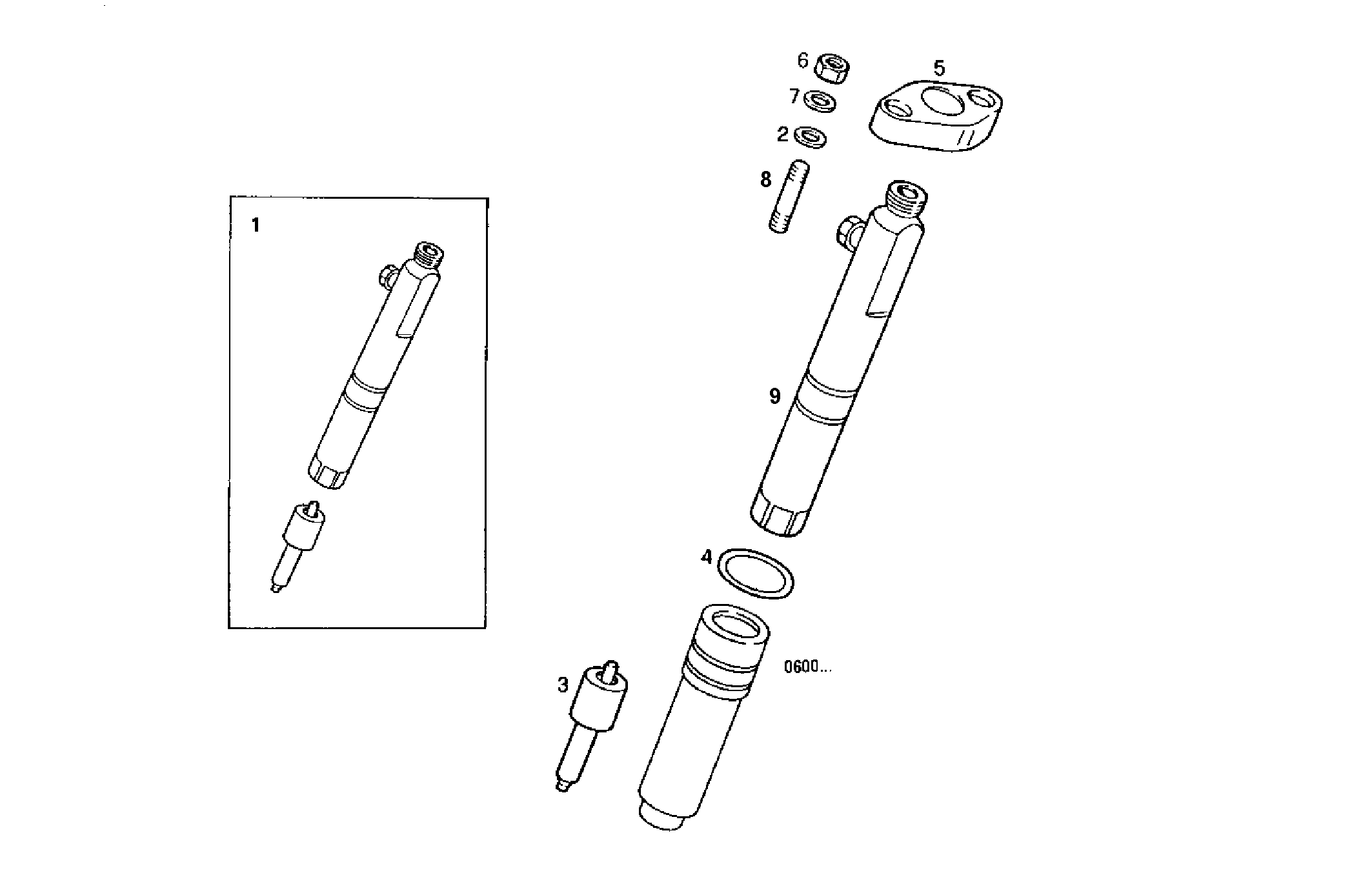

INJECTORS
Assembly ID: 1420.059
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500301632 | NOZZLE | 6 | ||
| 2 | 4700162 | WASHER | 12 | ||
| 3 | 500301635 | FUEL NOZZLE | 6 | ||
| 4 | 17278581 | O-RING | 6 | ||
| 5 | 98406199 | FASTENING BRACKET | 6 | ||
| 6 | 17038221 | HEXAGON NUT | 12 | ||
| 7 | 17090174 | SPRING WASHER | 12 | ||
| 8 | 13450230 | STUD | 6 | ||
| 9 | 98414185 | NOZZLE HOLDER | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRC22.00 | 8210SRC22 | view |
| GE8210SRi28.00A955 | GE8210SRi28 | view |
| GS8210SRi28.00 | GS8210SRi28 | view |
| 8210SRi28.00 | 8210SRi28 | view |
| 8210SRi29.00 | 8210SRi29 | view |
| 8210SRE21.00 | 8210SRE21 | view |
| 8210SRE20.00 | 8210SRE20 | view |
| 8210SRi28.00A550 | 8210SRi28 | view |
| 8210SRi28.00A580 | 8210SRi28 | view |
| GE8210SRi28.00N970 | GE8210SRi28 | view |
| GE8210SRi28.00R970 | GE8210SRi28 | view |
