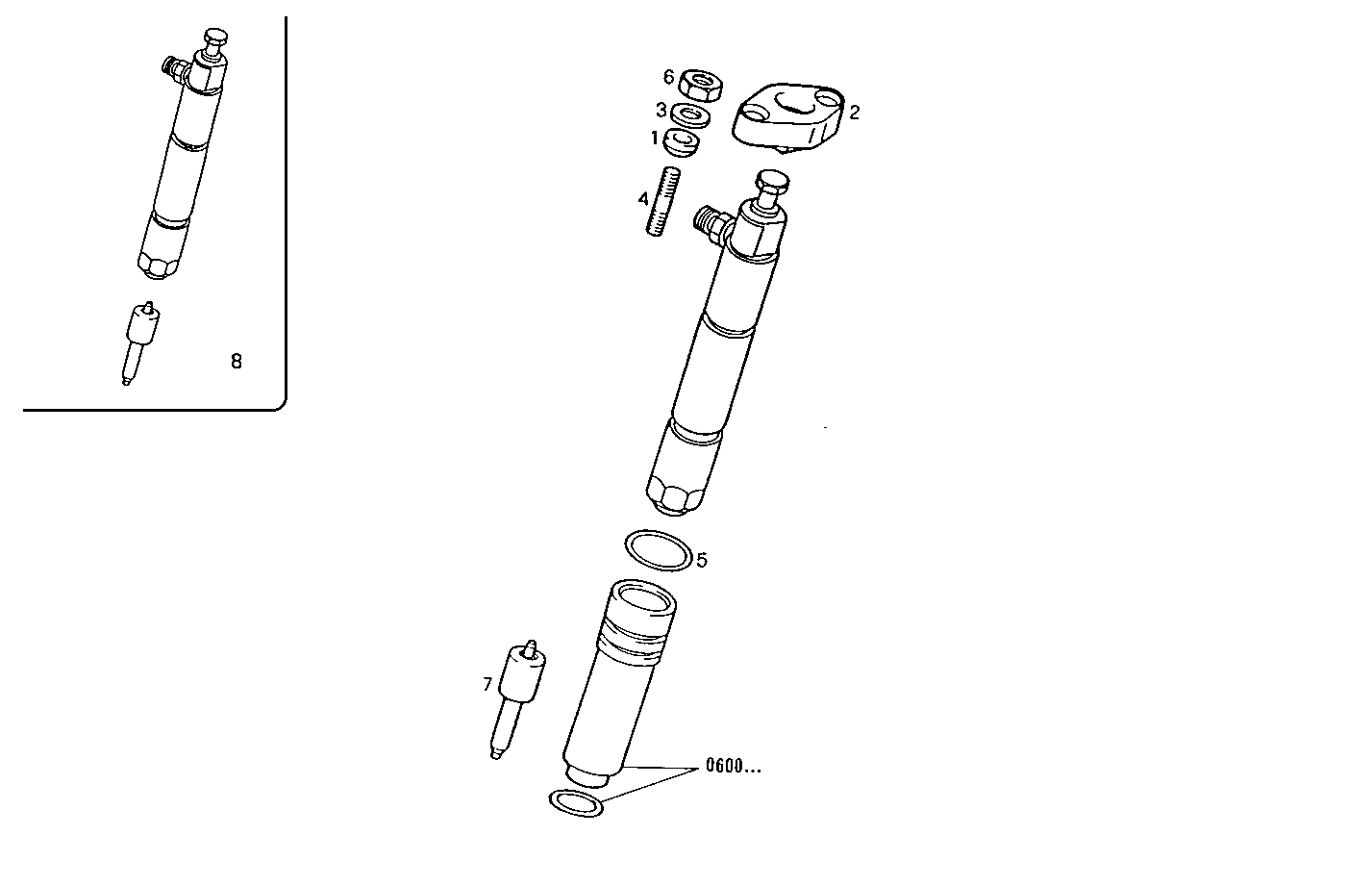

INJECTORS
Assembly ID: 1420.090
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4700162 | WASHER | 12 | ||
| 2 | 98406199 | FASTENING BRACKET | 6 | ||
| 3 | 17090174 | SPRING WASHER | 12 | ||
| 4 | 13450634 | STUD | 12 | ||
| 5 | 17278581 | O-RING | 6 | ||
| 6 | 17038221 | HEXAGON NUT | 12 | ||
| 7 | 98480703 | FUEL NOZZLE | 6 | ||
| 8 | 500334269 | NOZZLE | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
