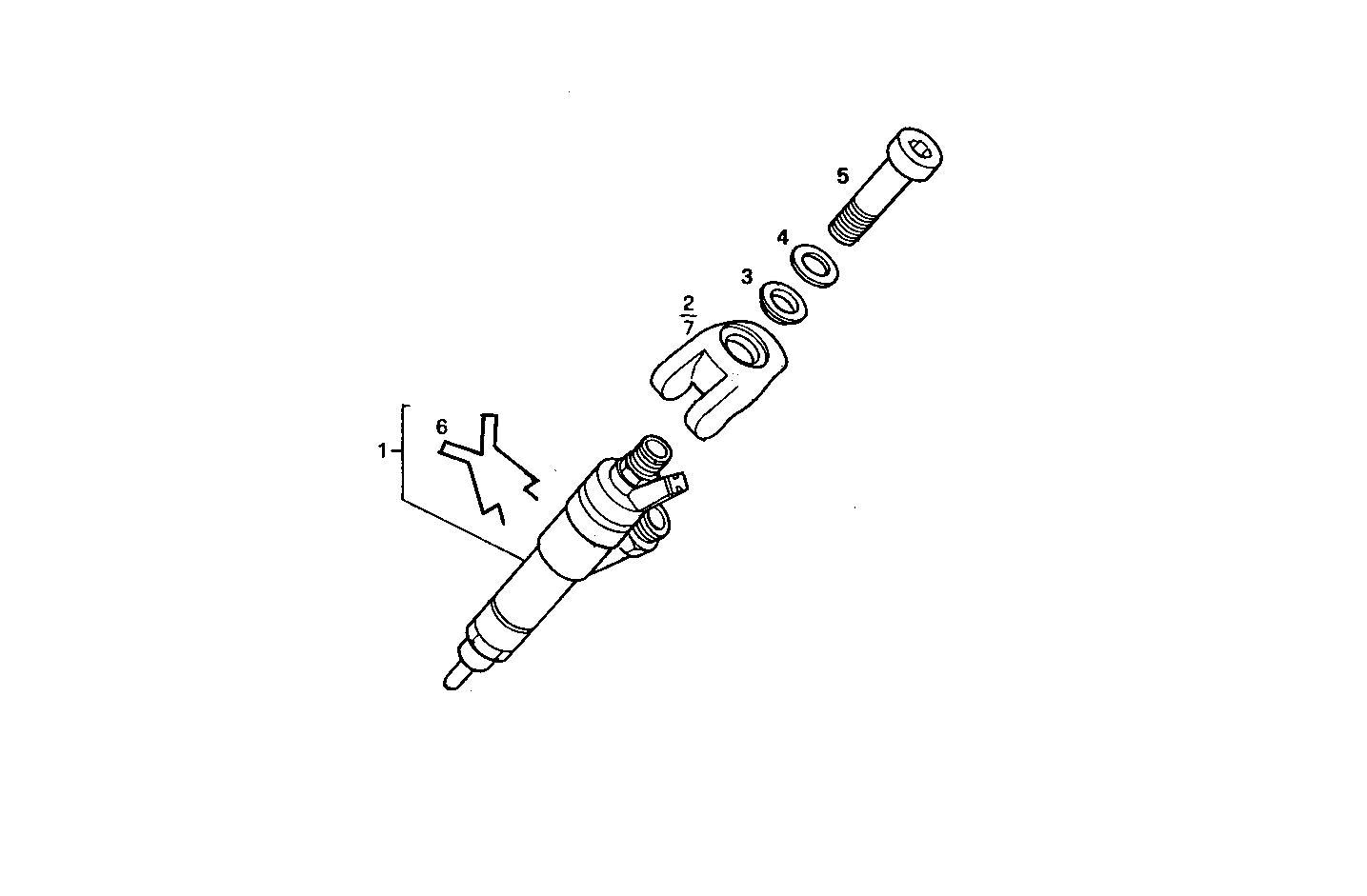

INJECTORS
Assembly ID: 1420.101
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500313105 | ELECTRO INJECTOR | 4 | ||
| 2 | 99453918 | RETAINER | 4 | ||
| 3 | 756671 | WASHER | 4 | ||
| 4 | 17090274 | WASHER | 4 | ||
| 5 | 14307924 | CYLIND-HEAD SCREW | 4 | ||
| 6 | 42534603 | LEVER | 4 | ||
| 7 | 500388113 | RETAINER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC30.00 | 8140SRC30 | view |
| 8140SRM15.10 | 8140SRM15 | view |
| 8140SRM15.11 | 8140SRM15 | view |
