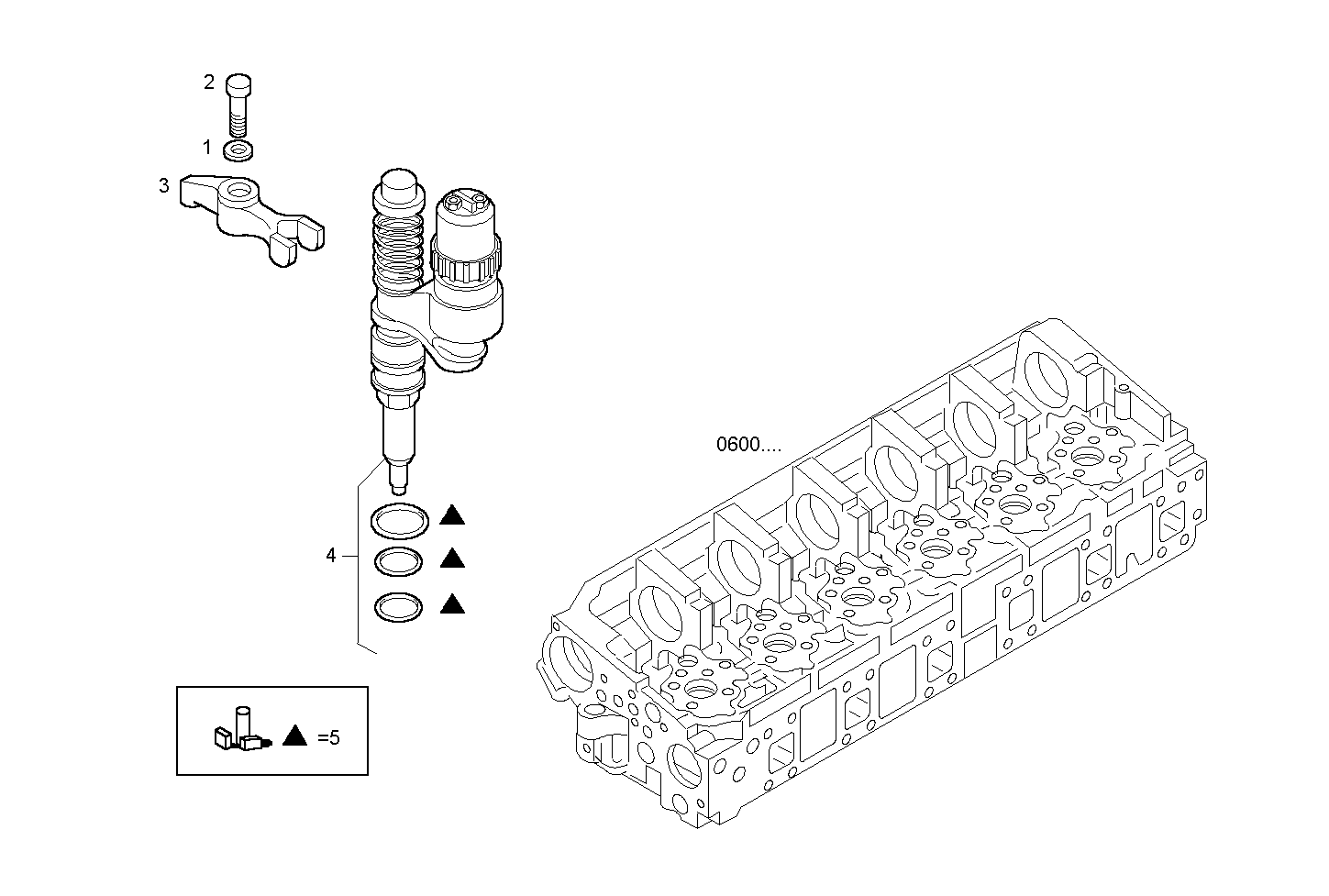

INJECTORS
Assembly ID: 1420.109
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4700162 | WASHER | 6 | ||
| 2 | 500356756 | CYLIND-HEAD SCREW | 6 | ||
| 3 | 99466464 | FASTENING BRACKET | 6 | ||
| 4 | 500367520 | NOZZLE | 6 | ||
| 5 | 500350189 | REPAIR KIT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0684A*B002 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B001 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B003 | CURSOR 8 - TIER 2 | view |
