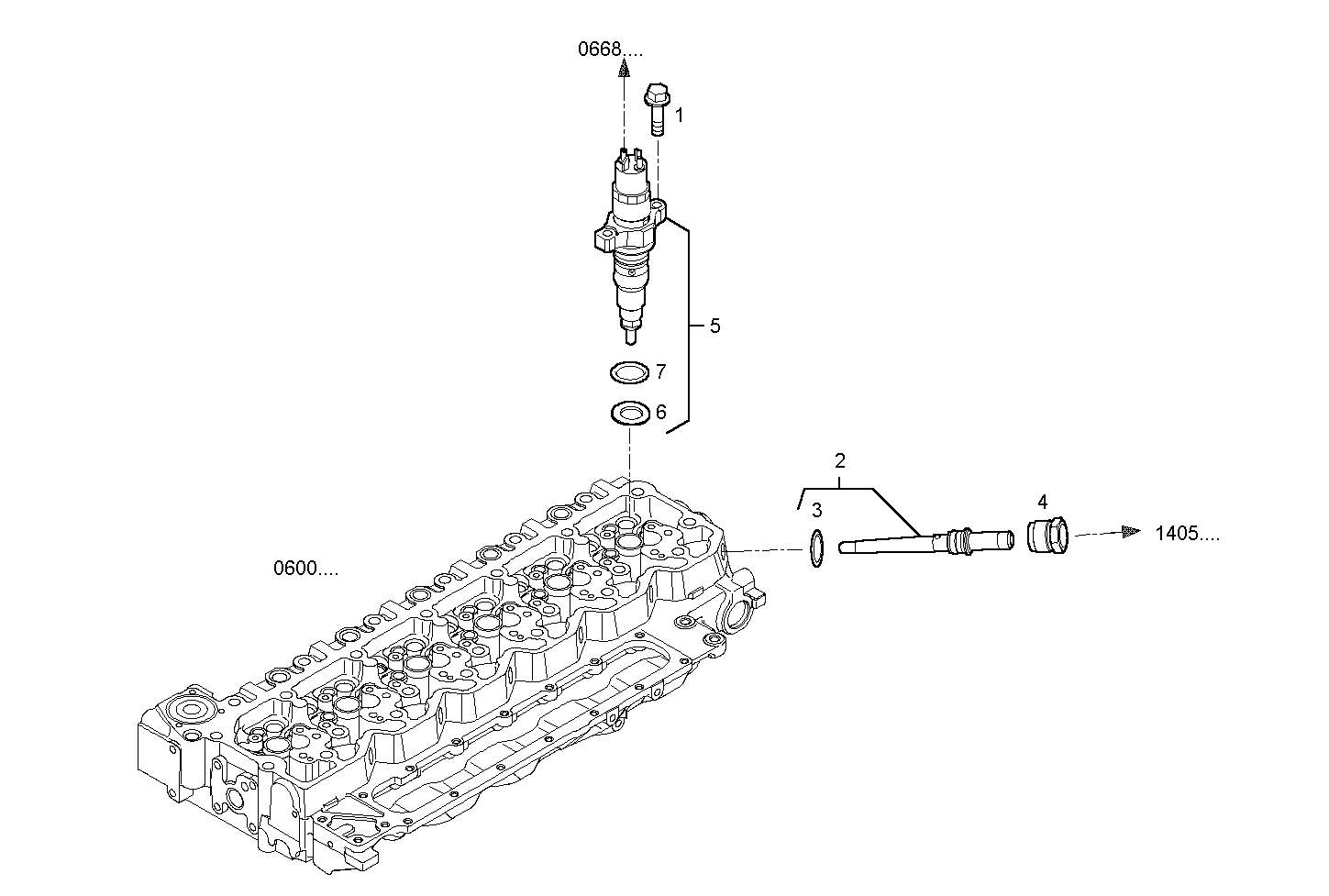

INJECTORS
Assembly ID: 1420.112
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4899092 | HEXAGON BOLT | 12 | ||
| 2 | 4897114 | FUEL LINE | 6 | ||
| 3 | 4890929 | O-RING | 6 | ||
| 4 | 4893739 | CAP NUT | 6 | ||
| 5 | 4897271 | ELECTRO INJECTOR | 6 | ||
| 6 | 4893741 | WASHER | 6 | ||
| 7 | 4890926 | O-RING | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684F*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684J*D | NEF 6 electron. - TIER 2 | view |
| F4AE0684H*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684E*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0681D*C150 | NEF 6 electron. - EURO 3 | view |
| F4AE0682C*C151 | NEF 6 electron. - EURO 3 | view |
