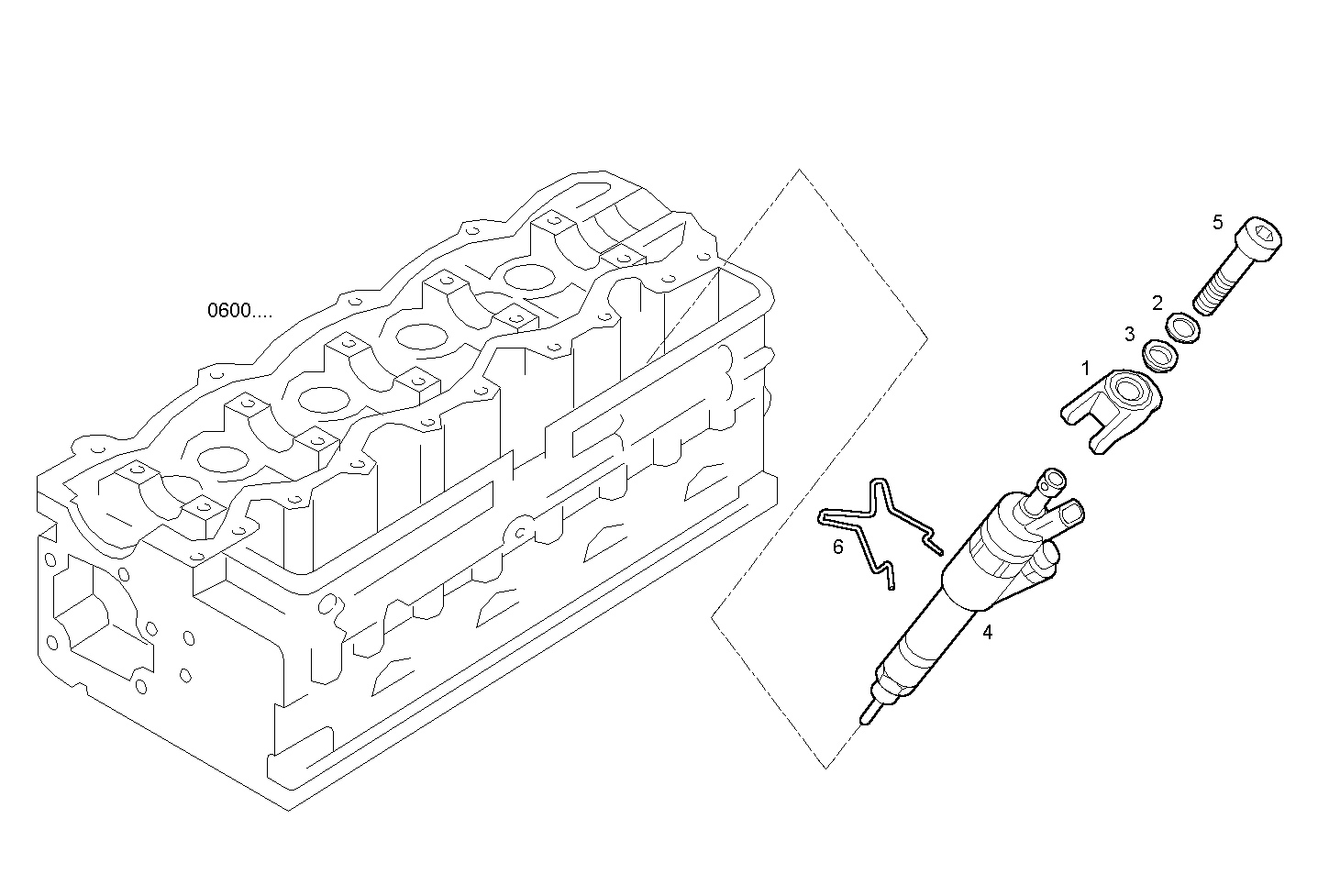

INJECTORS
Assembly ID: 1420.117
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500388113 | RETAINER | 4 | ||
| 2 | 17090274 | WASHER | 4 | ||
| 3 | 756671 | WASHER | 4 | ||
| 4 | 500313105 | ELECTRO INJECTOR | 4 | ||
| 5 | 14307924 | CYLIND-HEAD SCREW | 4 | ||
| 6 | 500378001 | SPRING CLAMP | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140.43P.3941 | 8140.43 | view |
| 8140SRC31.35A001- 1C | 8140SRC31 | view |
| 8140SRC31.35L002- 1C | 8140SRC31 | view |
| 8140.43F.3800 | 8140.43 | view |
| 8140SRC31.35 - 1C | 8140SRC31 | view |
| 8140SRC31.35A001- 1D | 8140SRC31 | view |
| 8140SRC31.35L002- 1D | 8140SRC31 | view |
| 8140.43P.3945 | 8140.43 | view |
| 8140.43E.4310 | 8140.43 | view |
| 8140SRC33.10A001 | 8140SRC33 | view |
