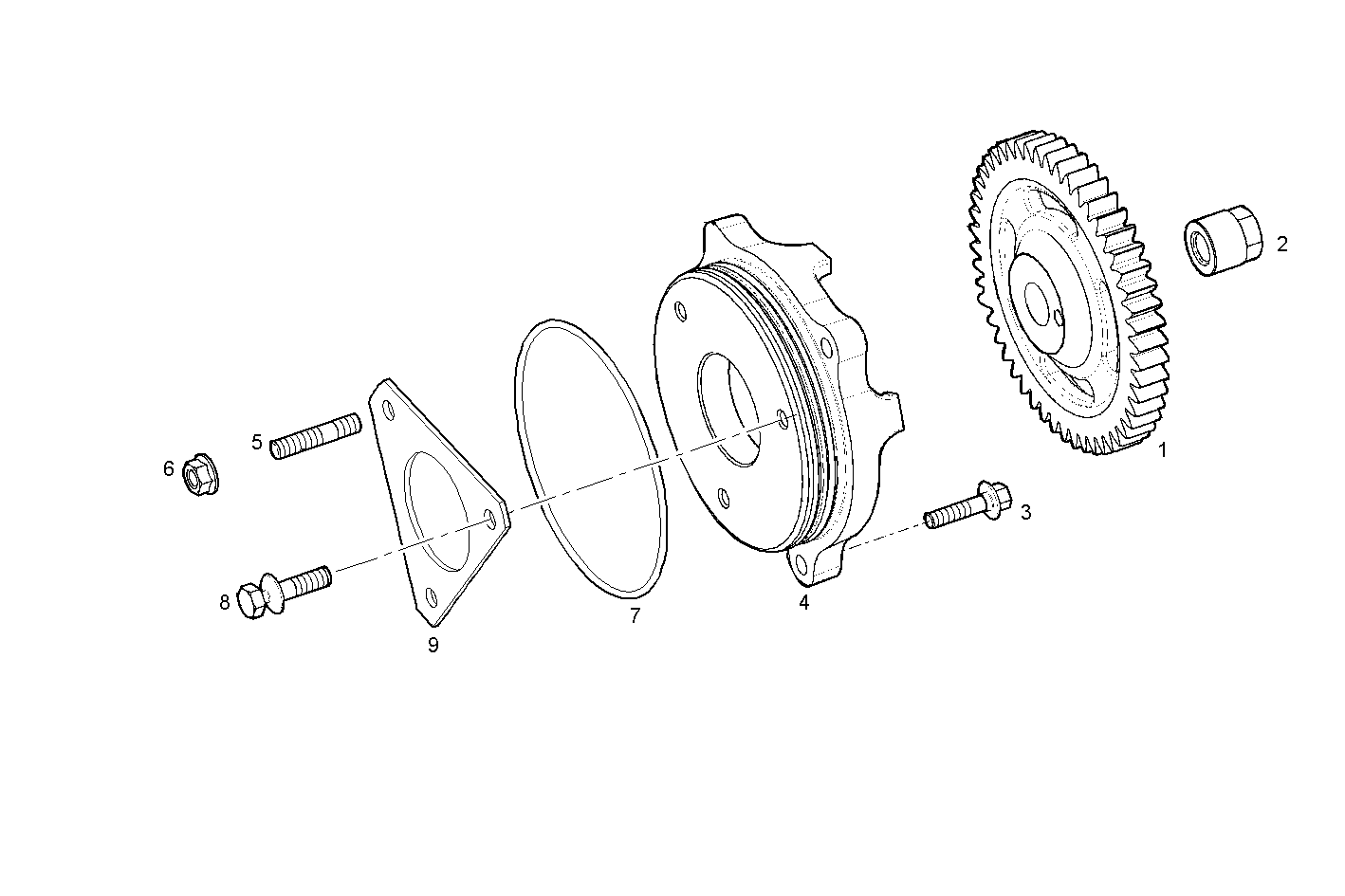

INJECTION PUMP DRIVE
Assembly ID: 1422.003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504093385 | INJ.PUMP DRIV.GEA | 1 | ||
| 2 | 4893229 | HEXAGON NUT | 1 | ||
| 3 | 4899063 | HEXAGON BOLT | 3 | ||
| 4 | 4894729 | SPACING BAR | 1 | ||
| 5 | 16729534 | STUD | 2 | ||
| 6 | 17044735 | NUT | 2 | ||
| 7 | 17292081 | O-RING | 1 | ||
| 8 | 504062241 | HEXAGON BOLT | 1 | ||
| 9 | 504083433 | FLAT ENGINE GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
