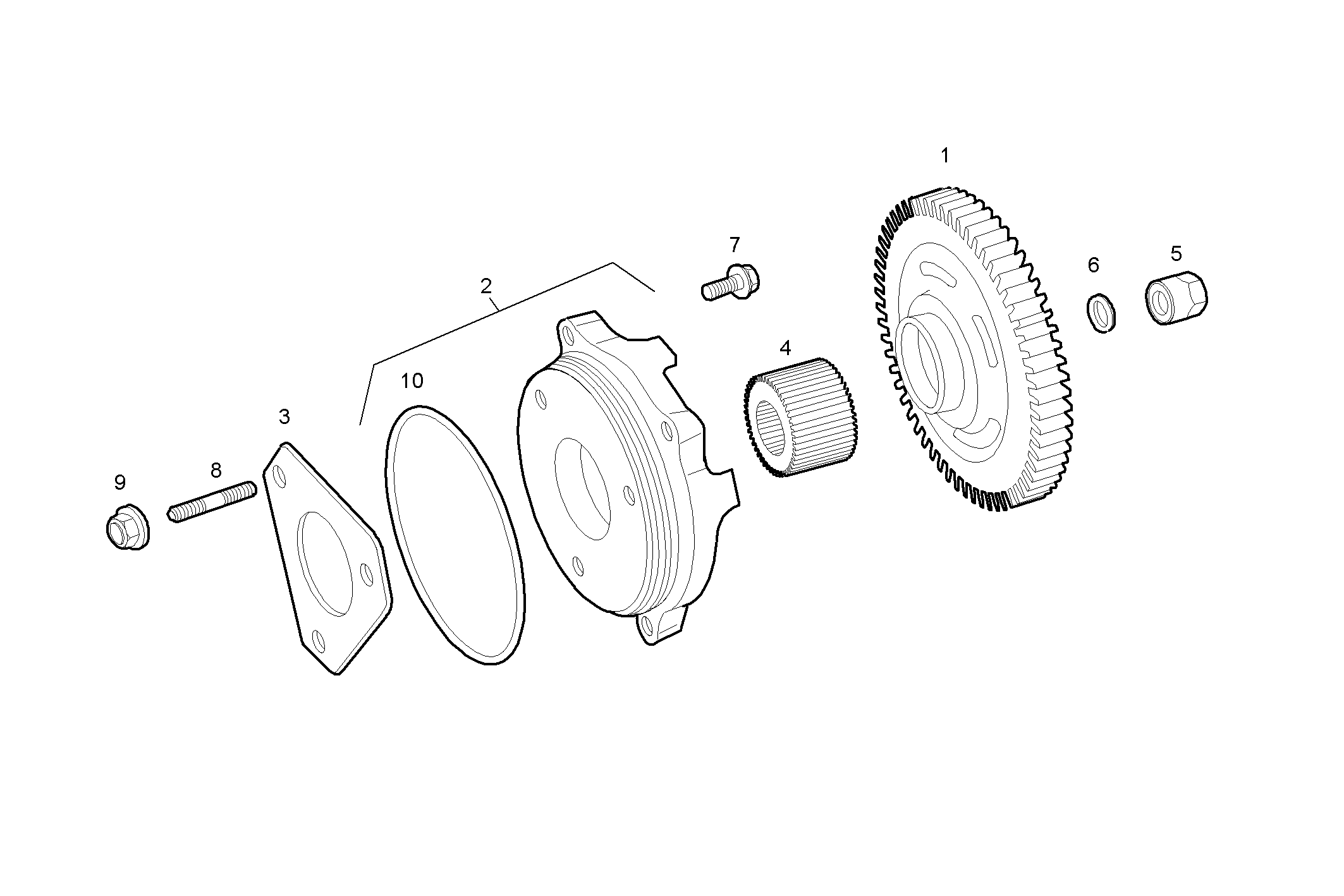

INJECTION PUMP DRIVE
Assembly ID: 1422.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504151881 | INJ.PUMP DRIV.GEA | 1 | ||
| 2 | 4894729 | SPACING BAR | 1 | ||
| 3 | 504083433 | FLAT ENGINE GASKET | 1 | ||
| 4 | 4893227 | HUB | 1 | ||
| 5 | 4893229 | HEXAGON NUT | 1 | ||
| 6 | 4894736 | SPRING WASHER | 1 | ||
| 7 | 4899063 | HEXAGON BOLT | 3 | ||
| 8 | 16729534 | STUD | 3 | ||
| 9 | 17044735 | NUT | 3 | ||
| 10 | 17292081 | O-RING | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D612 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9454C*J601 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484F*J600 | NEF 4 mechanic. - TIER 3 | view |
