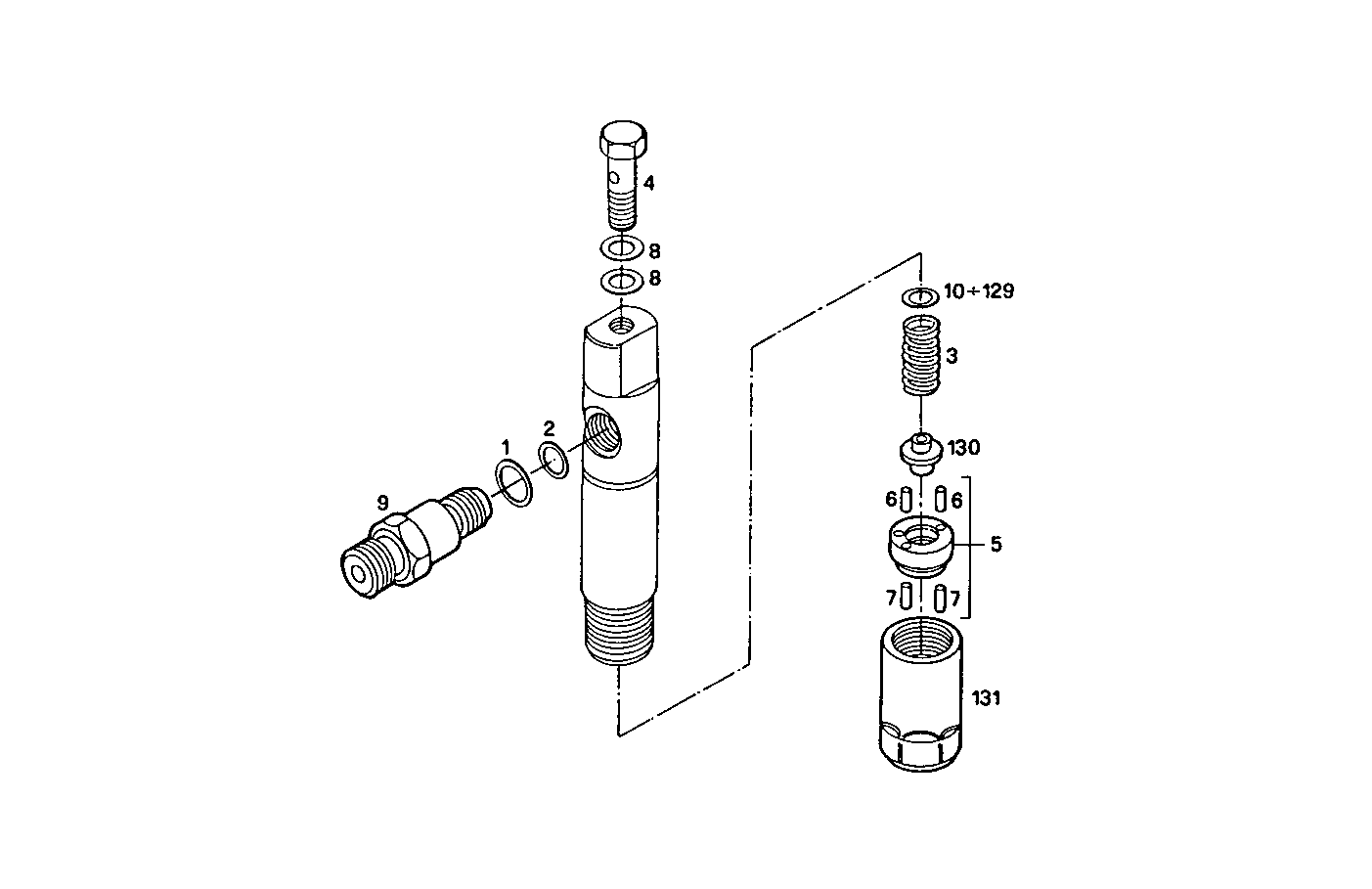

NOZZLE HOLDER (COMPONENTS)

Assembly ID: 1430.036

NOZZLE HOLDER (COMPONENTS)

Parts

# Part number Description Note Quantity
1 8123463 RING 1
2 8123465 RING 1
3 8190848 SPRING 1
4 9009403 SCREW CONNECTOR 1
5 9941816 CENTERING RING 1
6 9982960 PARALLEL PIN 2
7 42491772 PARALLEL PIN 2
8 93156605 GASKET 2
9 93163926 THREADED UNION 1
10 93191720 SHIM 1
11 93191721 SHIM 1
12 93191722 SHIM 1
13 93191723 SHIM 1
14 93191724 SHIM 1
15 93191725 SHIM 1
16 93191726 SHIM 1
17 93191727 SHIM 1
18 93191728 SHIM 1
19 93191729 SHIM 1
20 93191730 SHIM 1
21 93191731 SHIM 1
22 93191732 SHIM 1
23 93191733 SHIM 1
24 93191734 SHIM 1
25 93191735 SHIM 1
26 93191736 SHIM 1
27 93191737 SHIM 1
28 93191738 SHIM 1
29 93191739 SHIM 1
30 93191740 SHIM 1
31 93191741 SHIM 1
32 93191742 SHIM 1
33 93191743 SHIM 1
34 93191744 SHIM 1
35 93191745 SHIM 1
36 93191746 SHIM 1
37 93191747 SHIM 1
38 93191748 SHIM 1
39 93191749 SHIM 1
40 93191750 SHIM 1
41 93191751 SHIM 1
42 93191752 SHIM 1
43 93191753 SHIM 1
44 93191754 SHIM 1
45 93191755 SHIM 1
46 93191756 SHIM 1
47 93191757 SHIM 1
48 93191758 SHIM 1
49 93191759 SHIM 1
50 93191760 SHIM 1
51 93191761 SHIM 1
52 93191762 SHIM 1
53 93191763 SHIM 1
54 93191764 SHIM 1
55 93191765 SHIM 1
56 93191766 SHIM 1
57 93191767 SHIM 1
58 93191768 SHIM 1
59 93191769 SHIM 1
60 93191770 SHIM 1
61 93191771 SHIM 1
62 93191772 SHIM 1
63 93191773 SHIM 1
64 93191774 SHIM 1
65 93191775 SHIM 1
66 93191776 SHIM 1
67 93191777 SHIM 1
68 93191778 SHIM 1
69 93191779 SHIM 1
70 93191780 SHIM 1
71 93191781 SHIM 1
72 93191782 SHIM 1
73 93191783 SHIM 1
74 93191784 SHIM 1
75 93191785 SHIM 1
76 93191786 SHIM 1
77 93191787 SHIM 1
78 93191788 SHIM 1
79 93191789 SHIM 1
80 93191790 SHIM 1
81 93191791 SHIM 1
82 93191792 SHIM 1
83 93191793 SHIM 1
84 93191794 SHIM 1
85 93191795 SHIM 1
86 93191796 SHIM 1
87 93191797 SHIM 1
88 93191798 SHIM 1
89 93191799 SHIM 1
90 93191800 SHIM 1
91 93191801 SHIM 1
92 93191802 SHIM 1
93 93191803 SHIM 1
94 93191804 SHIM 1
95 93191805 SHIM 1
96 93191806 SHIM 1
97 93191807 SHIM 1
98 93191808 SHIM 1
99 93191809 SHIM 1
100 93191810 SHIM 1
101 93191811 SHIM 1
102 93191812 SHIM 1
103 93191813 SHIM 1
104 93191814 SHIM 1
105 93191815 SHIM 1
106 93191816 SHIM 1
107 93191817 SHIM 1
108 93191818 SHIM 1
109 93191819 SHIM 1
110 93191820 SHIM 1
111 93191821 SHIM 1
112 93191822 SHIM 1
113 93191823 SHIM 1
114 93191824 SHIM 1
115 93191825 SHIM 1
116 93191826 SHIM 1
117 93191827 SHIM 1
118 93191828 SHIM 1
119 93191829 SHIM 1
120 93191830 SHIM 1
121 93191831 SHIM 1
122 93191832 SHIM 1
123 93191833 SHIM 1
124 93191834 SHIM 1
125 93191835 SHIM 1
126 93191836 SHIM 1
127 93191837 SHIM 1
128 93191838 SHIM 1
129 93191839 SHIM 1
130 93192016 WASHER/PLATE 1
131 93192466 SPIDER 1

Applies to engines

Engine Family
8460SRi10.00 8460SRi10 view
8460SRi11.00 8460SRi11 view
8460SRi11.00A004 8460SRi11 view
8460SRi10.00A016 8460SRi10 view
8460SRi10.00A020 8460SRi10 view
8460M15.12 8460M15 view
8460SM19.12 8460SM19 view
8460SM22.12 8460SM22 view
8460SRM28.12 8460SRM28 view
8460SM19.13 8460SM19 view
8460SRM28.13 8460SRM28 view
8460SM19.13A001 8460SM19 view
