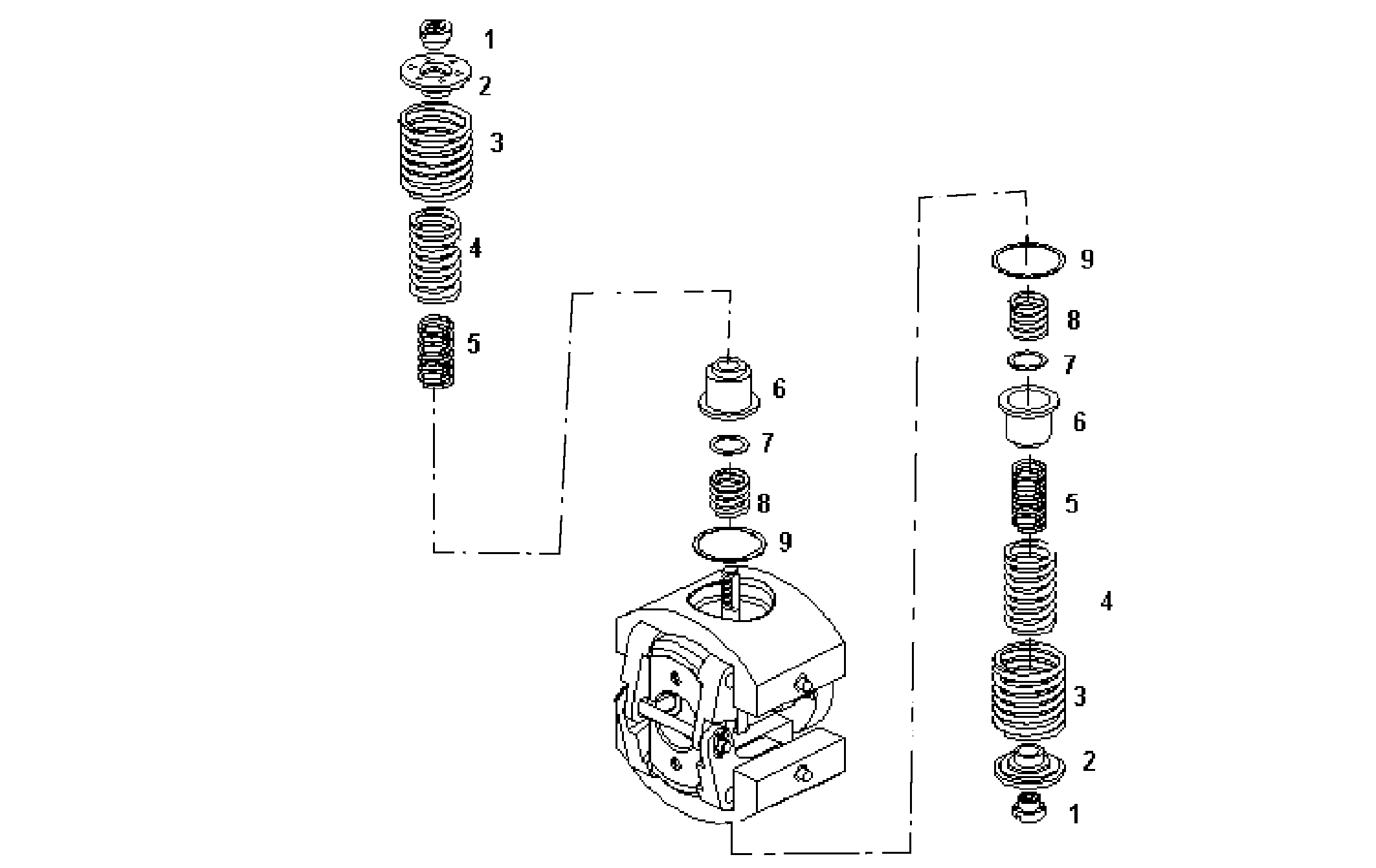

INJECTION PUMP (COMPONENTS)
Assembly ID: 1450.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 79035483 | FASTENING RING | 2 | ||
| 2 | 8100094 | WASHER/PLATE | 2 | ||
| 3 | 4935669 | SPRING | 2 | ||
| 4 | 764051 | SPRING | 2 | ||
| 5 | 8011993 | SPRING | 2 | ||
| 6 | 4936834 | WASHER/PLATE | 2 | ||
| 7 | 9001897 | SHIM | 4 | ||
| 8 | 8100322 | SPRING | 2 | ||
| 9 | 8009760 | SHIM | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8291SRM75.12 | 8291SRM75 | view |
| 8291SRM75.32 | 8291SRM75 | view |
| 8291SRM75.32A003 | 8291SRM75 | view |
| 8291SRM75.32A005 | 8291SRM75 | view |
| 8291SRM75.32A007 | 8291SRM75 | view |
