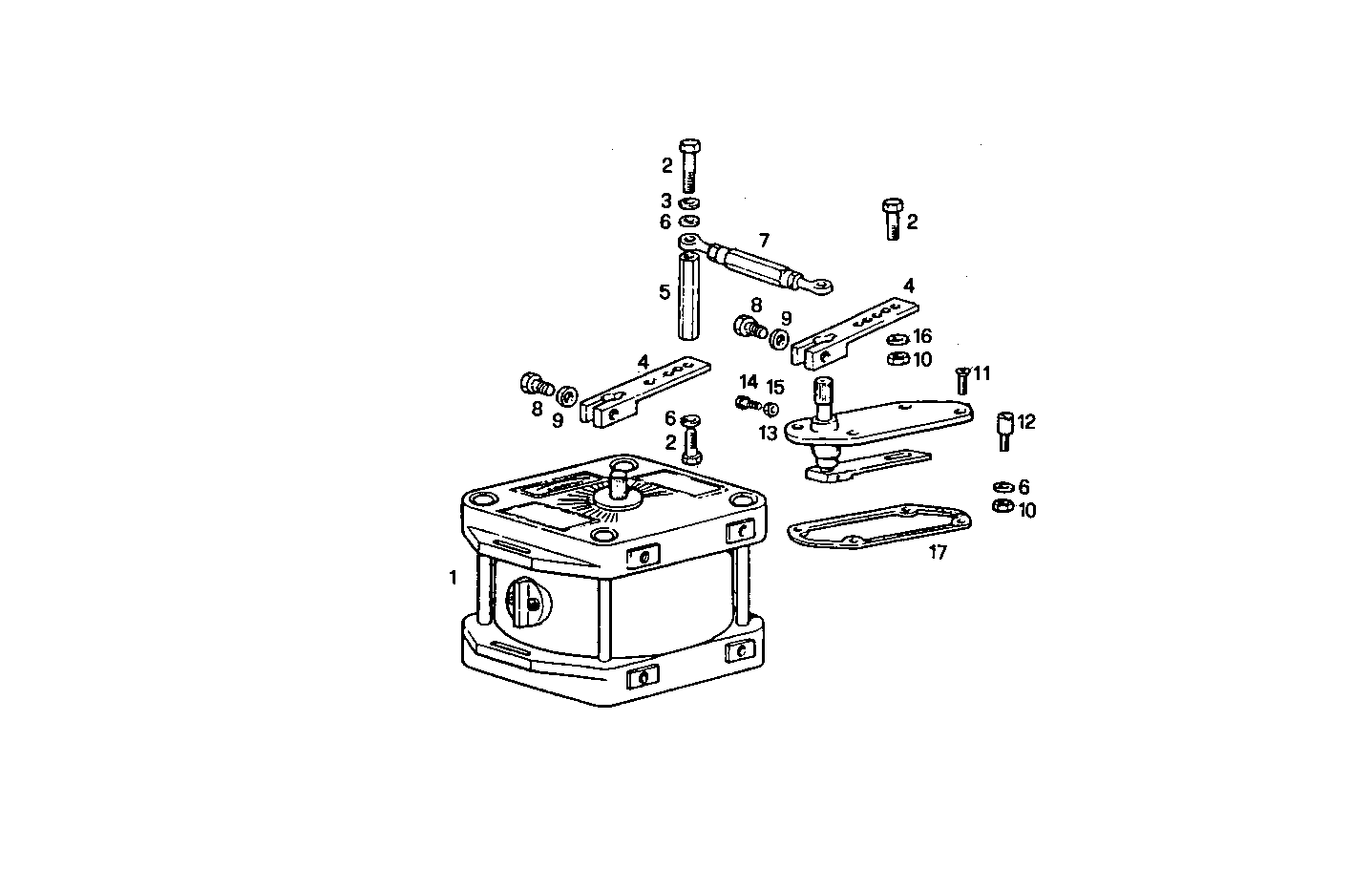

| 1 |
8107492
|
INJECTION CONTROL
|
|
1
|
|
| 2 |
8016470
|
SCREW
|
|
3
|
|
| 3 |
11199279
|
SPRING WASHER
|
|
2
|
|
| 4 |
8108603
|
LEVER
|
|
2
|
|
| 5 |
8108656
|
SPACING BAR
|
|
1
|
|
| 6 |
14497801
|
WASHER
|
|
5
|
|
|
17094504 |
WASHER |
|
5 |
|
| 7 |
8016606
|
TIE ROD
|
|
1
|
|
|
15896240 |
TIE ROD |
|
1 |
|
| 8 |
16603734
|
HEXAGON BOLT
|
|
2
|
|
| 9 |
11197779
|
SPRING WASHER
|
|
2
|
|
|
17088474 |
SPRING WASHER |
|
2 |
|
| 10 |
12574111
|
HEXAGON NUT
|
|
1
|
|
| 11 |
8109360
|
SCREW
|
|
4
|
|
| 12 |
8108604
|
PIN
|
|
1
|
|
| 13 |
8008766
|
COVER
|
|
1
|
|
| 14 |
8108715
|
SCREW
|
|
1
|
|
|
16602225 |
SCREW |
|
1 |
|
| 15 |
10788811
|
HEXAGON NUT
|
|
1
|
|
| 16 |
17494631
|
SPRING WASHER
|
|
1
|
|
| 17 |
8009910
|
GASKET
|
|
1
|
|
