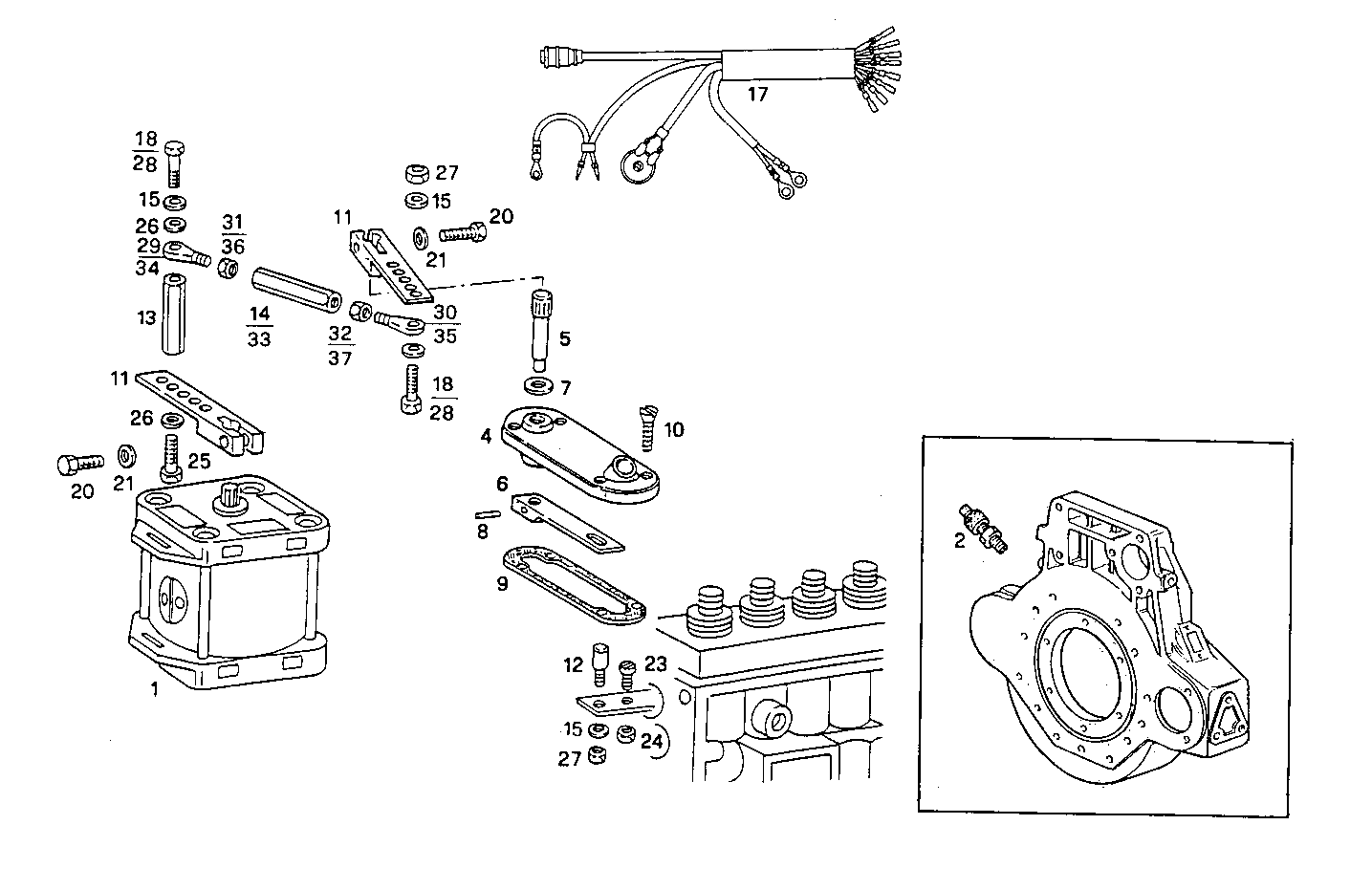

| 1 |
8107492
|
INJECTION CONTROL
|
|
1
|
|
| 2 |
8018673
|
PICK-UP
|
|
1
|
|
| 4 |
8007452
|
COVER
|
|
1
|
|
| 5 |
8109731
|
PIN
|
|
1
|
|
| 6 |
8108601
|
LEVER
|
|
1
|
|
| 7 |
8109732
|
WASHER
|
|
1
|
|
| 8 |
14158570
|
DOWEL PIN
|
|
1
|
|
| 9 |
8009910
|
GASKET
|
|
1
|
|
| 10 |
8109360
|
SCREW
|
|
4
|
|
| 11 |
8108603
|
LEVER
|
|
2
|
|
| 12 |
8108604
|
PIN
|
|
1
|
|
| 13 |
8108656
|
SPACING BAR
|
|
1
|
|
| 14 |
8016606
|
TIE ROD
|
|
1
|
|
|
15896240 |
TIE ROD |
|
1 |
|
| 15 |
17094714
|
WASHER
|
|
2
|
|
| 16 |
12638101
|
WASHER
|
|
1
|
|
|
17793604 |
WASHER |
|
1 |
|
| 17 |
8018791
|
ENGINE HARNESS
|
|
1
|
|
| 18 |
8016470
|
SCREW
|
|
2
|
|
| 20 |
16603724
|
HEXAGON BOLT
|
|
2
|
|
| 21 |
17088474
|
WASHER
|
|
2
|
|
| 23 |
17130714
|
SCREW
|
|
1
|
|
| 24 |
12574011
|
NUT
|
|
1
|
|
| 25 |
16602224
|
HEXAGON BOLT
|
|
1
|
|
| 26 |
11199279
|
SPRING WASHER
|
|
1
|
|
| 27 |
17152621
|
NUT
|
|
2
|
|
| 28 |
8016470
|
SCREW
|
|
2
|
|
| 29 |
8114008
|
BANJO COUPLING
|
|
1
|
|
| 30 |
8114009
|
TIE ROD
|
|
1
|
|
| 31 |
8109397
|
NUT
|
|
1
|
|
| 32 |
8109398
|
NUT
|
|
1
|
|
| 33 |
8016413
|
TIE ROD
|
|
1
|
|
| 34 |
8016587
|
TIE ROD
|
|
1
|
|
| 35 |
8016588
|
TIE ROD
|
|
1
|
|
| 36 |
15896240
|
NUT
|
|
1
|
|
| 37 |
10789640
|
NUT
|
|
1
|
|
|
17040321 |
NUT |
|
1 |
|
