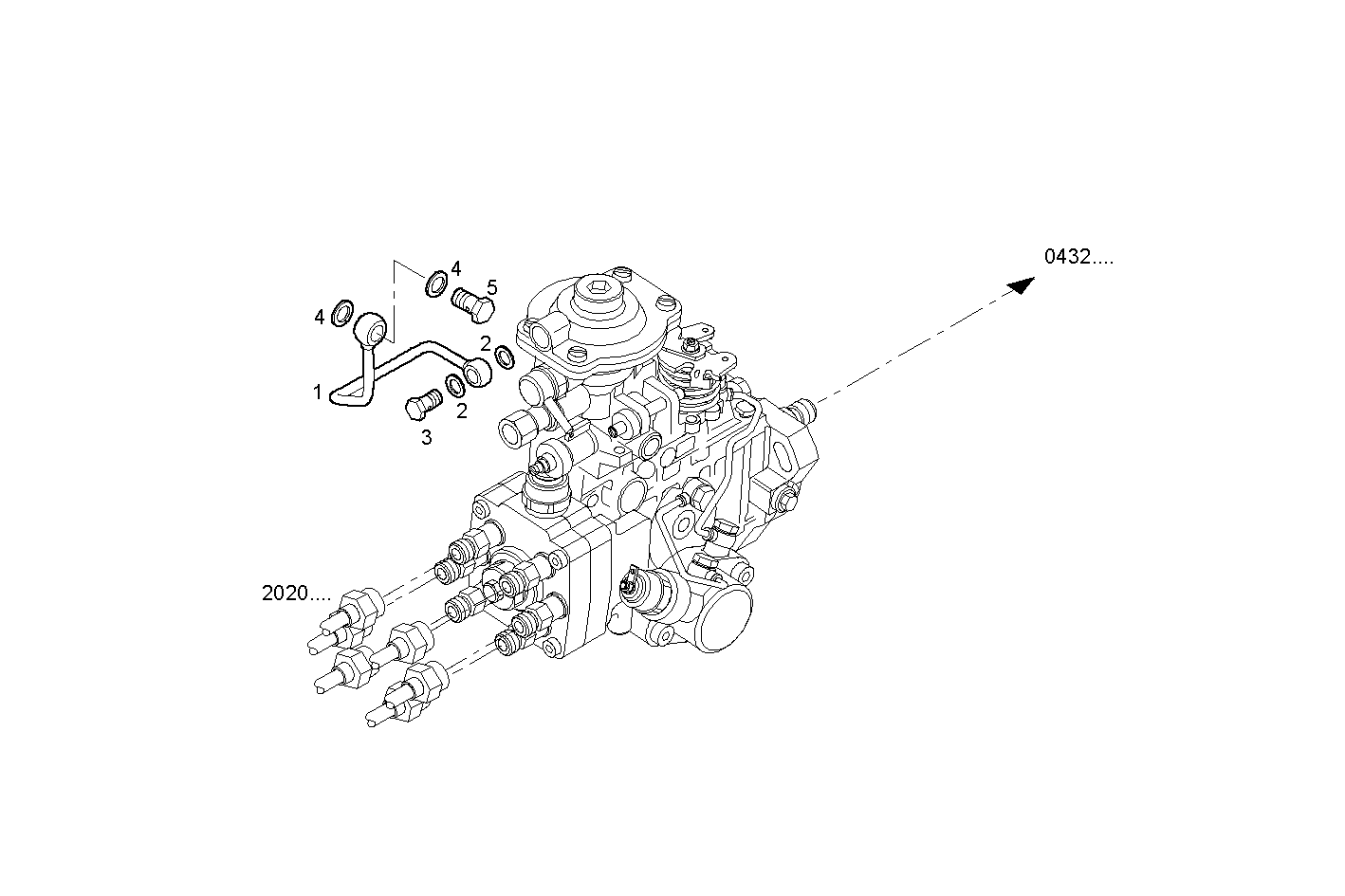

L.D.A. PIPE
Assembly ID: 1468.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2830508 | AIR PIPE/DUCT | 1 | ||
| 2 | 2830507 | SEAL GASKET | 2 | ||
| 3 | 2830360 | SCREW CONNECTOR | 1 | ||
| 4 | 16550760 | GASKET | 2 | ||
| 5 | 16511111 | SCREW CONNECTOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0684Q*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684Q*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684Q*D604 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684Q*D602 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D601 | NEF 6 mechanic. - TIER 2 | view |
| F4GE9684K*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684P*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684J*J603 | NEF 6 mechanic. - TIER 3 | view |
