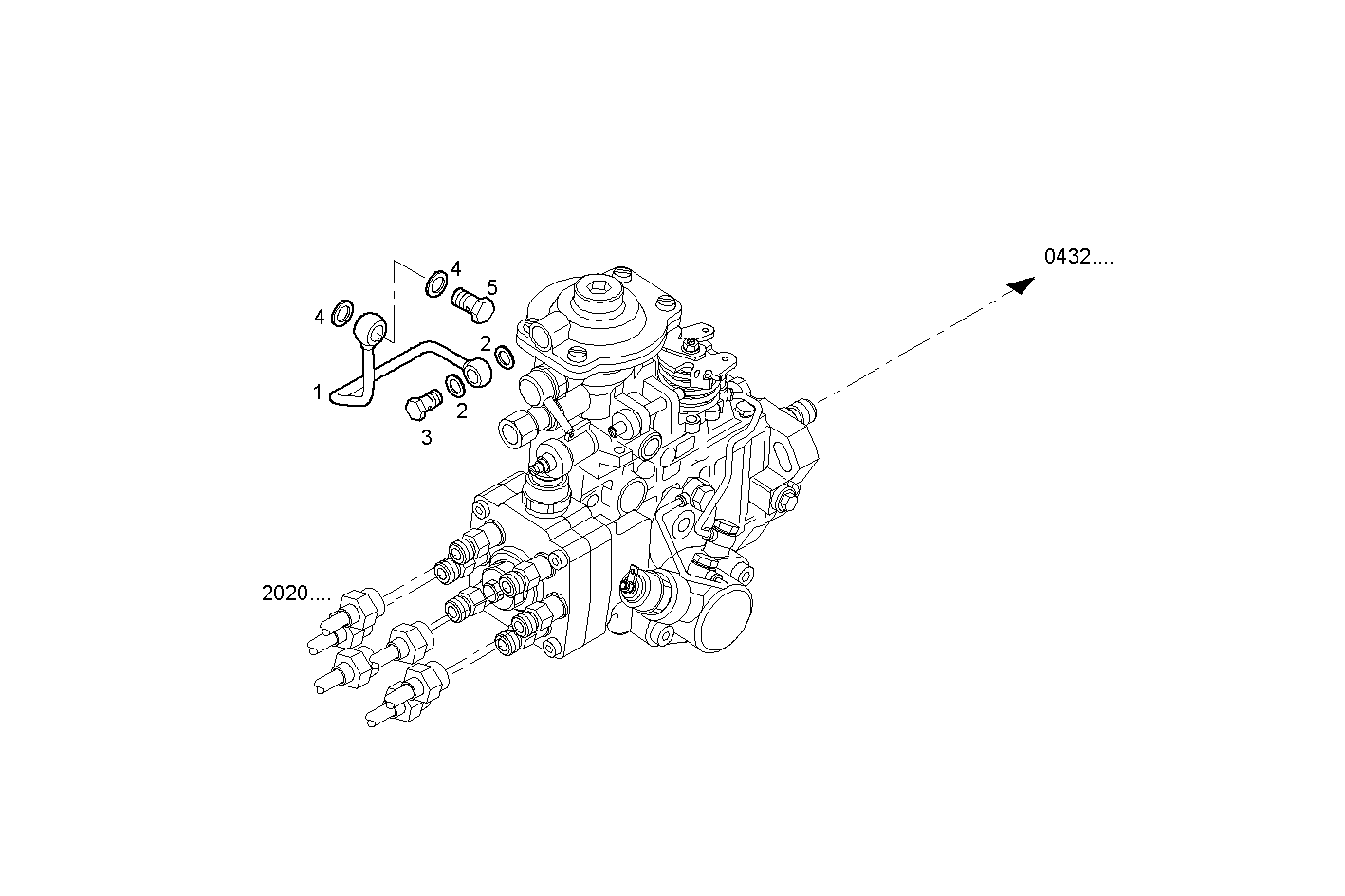

L.D.A. PIPE
Assembly ID: 1468.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4893081 | PLASTIC TUBE | 1 | ||
| 2 | 16550760 | GASKET | 2 | ||
| 3 | 2830360 | SCREW CONNECTOR | 1 | ||
| 4 | 2830507 | SEAL GASKET | 2 | ||
| 5 | 16511111 | SCREW CONNECTOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0454A*D601 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE9454C*J601 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484M*J605 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484F*J600 | NEF 4 mechanic. - TIER 3 | view |
