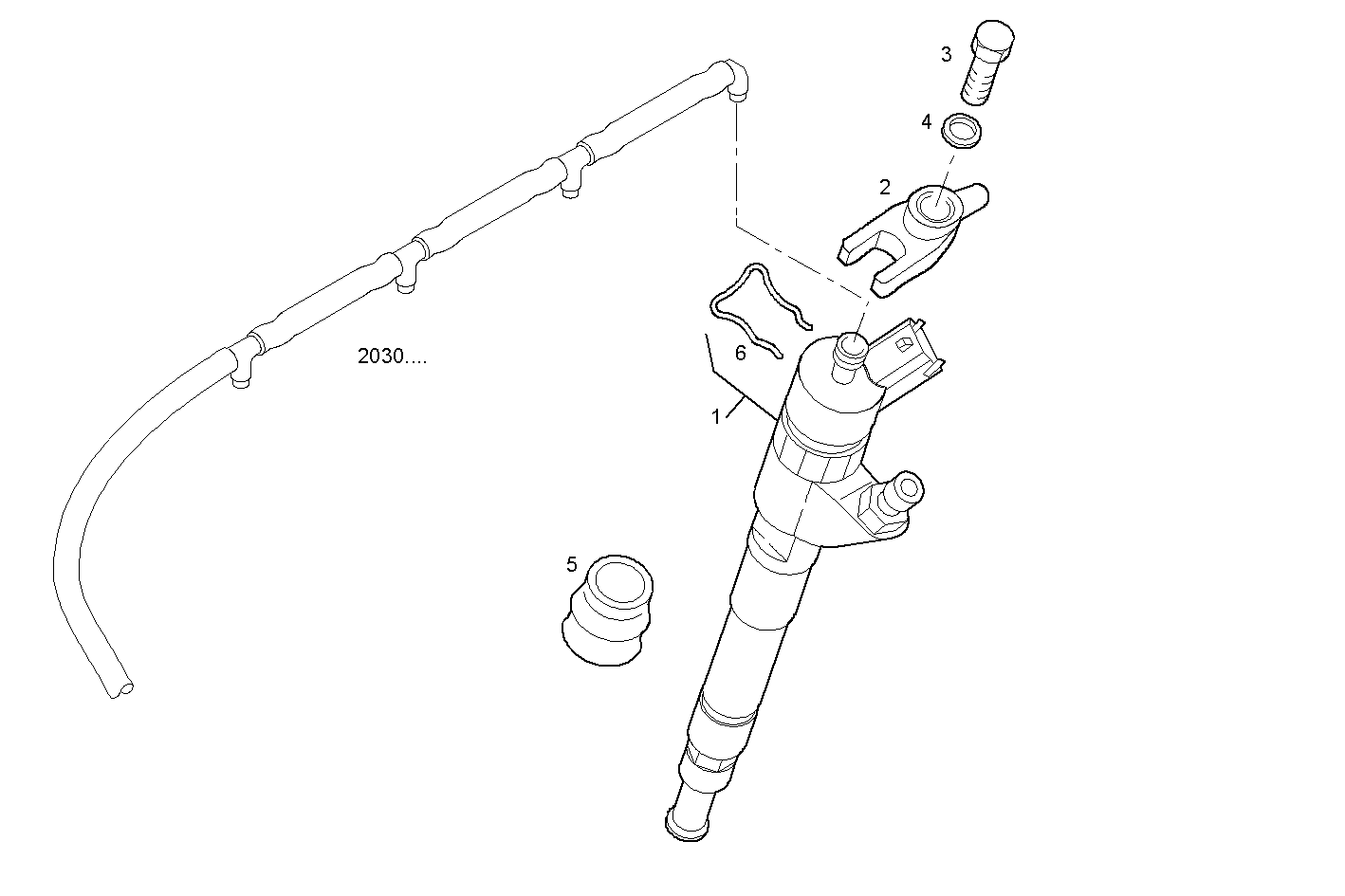

INJECTORS
Assembly ID: 1480.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504088823 | ELECTRO INJECTOR | 4 | ||
| 2 | 504000974 | RETAINER | 4 | ||
| 3 | 504239338 | HEXAGON BOLT | 4 | ||
| 4 | 500353601 | WASHER | 4 | ||
| 5 | 504032163 | GASKET | 4 | ||
| 6 | 500378001 | SPRING CLAMP | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C501 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.40A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.40A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C503 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.91L003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481L*A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A003 | SOFIM HPI 3.0L - EURO 4 | view |
