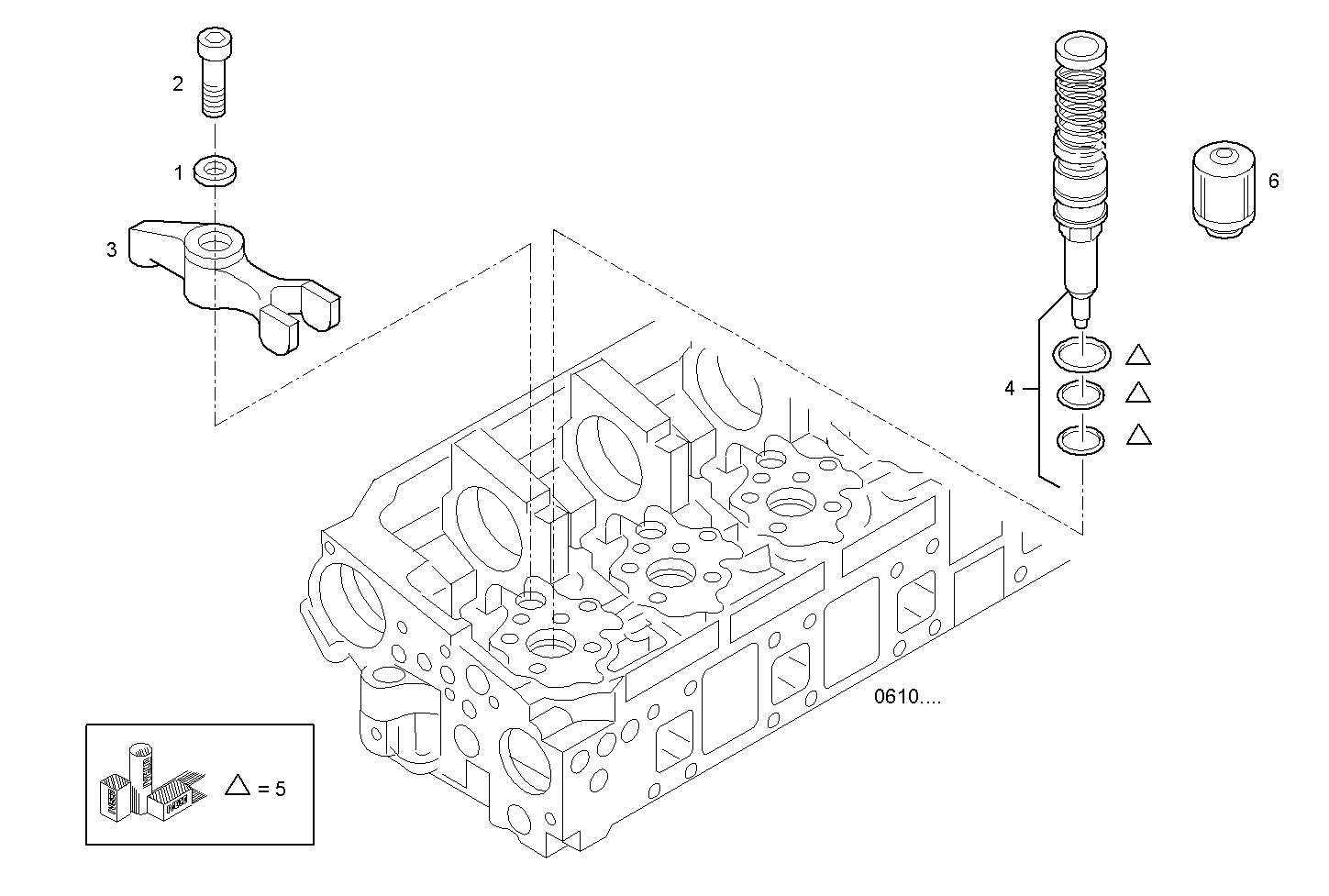

INJECTORS
Assembly ID: 1480.060
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99435007 | WASHER | 6 | ||
| 2 | 16707734 | CYLIND-HEAD SCREW | 6 | ||
| 3 | 99435006 | FASTENING BRACKET | 6 | ||
| 4 | 504106508 | NOZZLE | 6 | ||
| 5 | 504132034 | REPAIR KIT | 6 | ||
| 6 | 504112433 | REDUCTION VALVE | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0686A*B101 | CURSOR 13 | view |
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
