POWERING

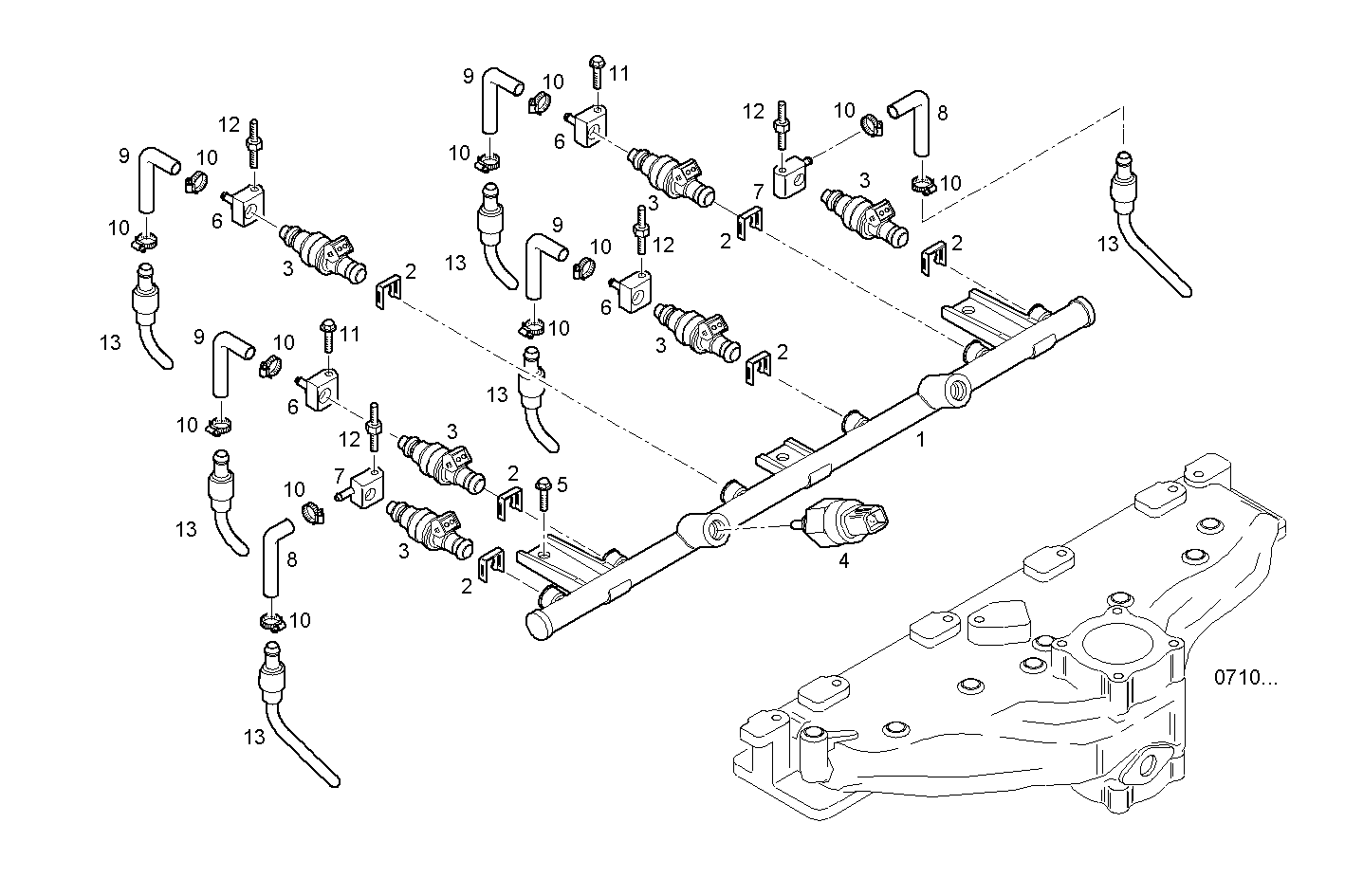

Assembly ID: 1600.023
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504030010 | LINE | 1 | ||
| 2 | 504030013 | SPRING CLAMP | 6 | ||
| 3 | 504079794 | GAS MOTOR ELECT.INJ. | 6 | ||
| 4 | 504064371 | SENSOR | 1 | ||
| 5 | 4899068 | HEXAGON BOLT | 3 | ||
| 6 | 504029930 | PIPE SOCKET | 4 | ||
| 7 | 504029931 | PIPE SOCKET | 2 | ||
| 8 | 504204110 | RUBBER SLEEVE | 4 | ||
| 9 | 504204111 | RUBBER SLEEVE | 2 | ||
| 10 | 504213201 | CLIP | 12 | ||
| 11 | 16586925 | HEXAGON BOLT | 2 | ||
| 12 | 504071005 | SCREW | 4 | ||
| 13 | 504029936 | PIPE SOCKET | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N60MNTG26.00A001 | NEF 6 CNG | view |
| N60MNTG26.00A002 | NEF 6 CNG | view |
| F4BE0641A*G105 | NEF 6 CNG | view |
| N60MNTG26.00A006 | NEF 6 CNG | view |
| N60MNTG26.00A004 | NEF 6 CNG | view |
| N60MNTG26.00A003 | NEF 6 CNG | view |
