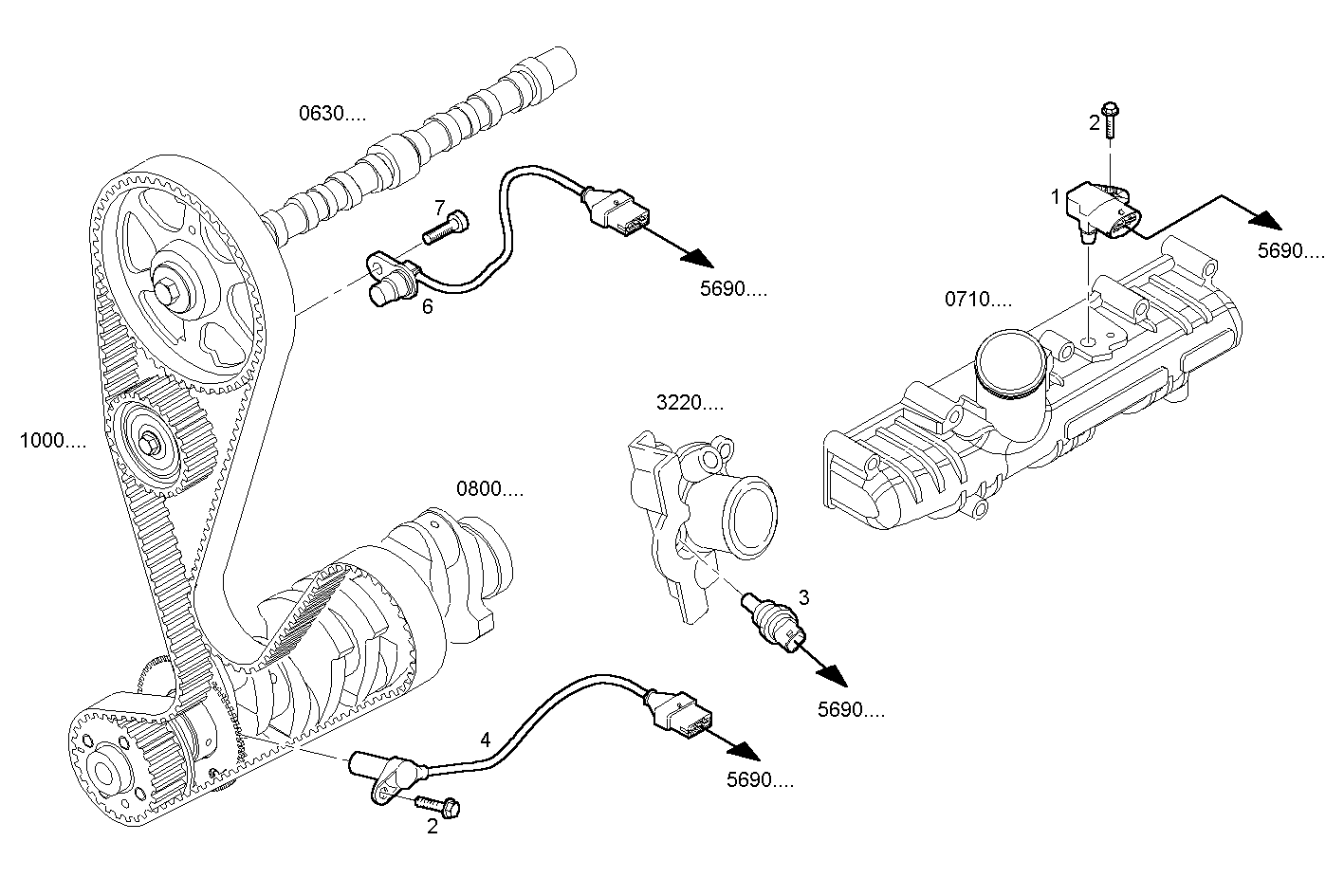

ELECTRONIC CONTROL UNIT
Assembly ID: 1700.009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500351377 | SENSOR | 1 | ||
| 2 | 16585724 | HEXAGON BOLT | 2 | ||
| 3 | 500382599 | TEMP. TRANSMITTER | 1 | ||
| 4 | 500374763 | ELECTRON.TRANSMITT | 1 | ||
| 6 | 500371540 | ELECTRON.TRANSMITT | 1 | ||
| 7 | 16689134 | SOCKET-HEAD SCREW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
