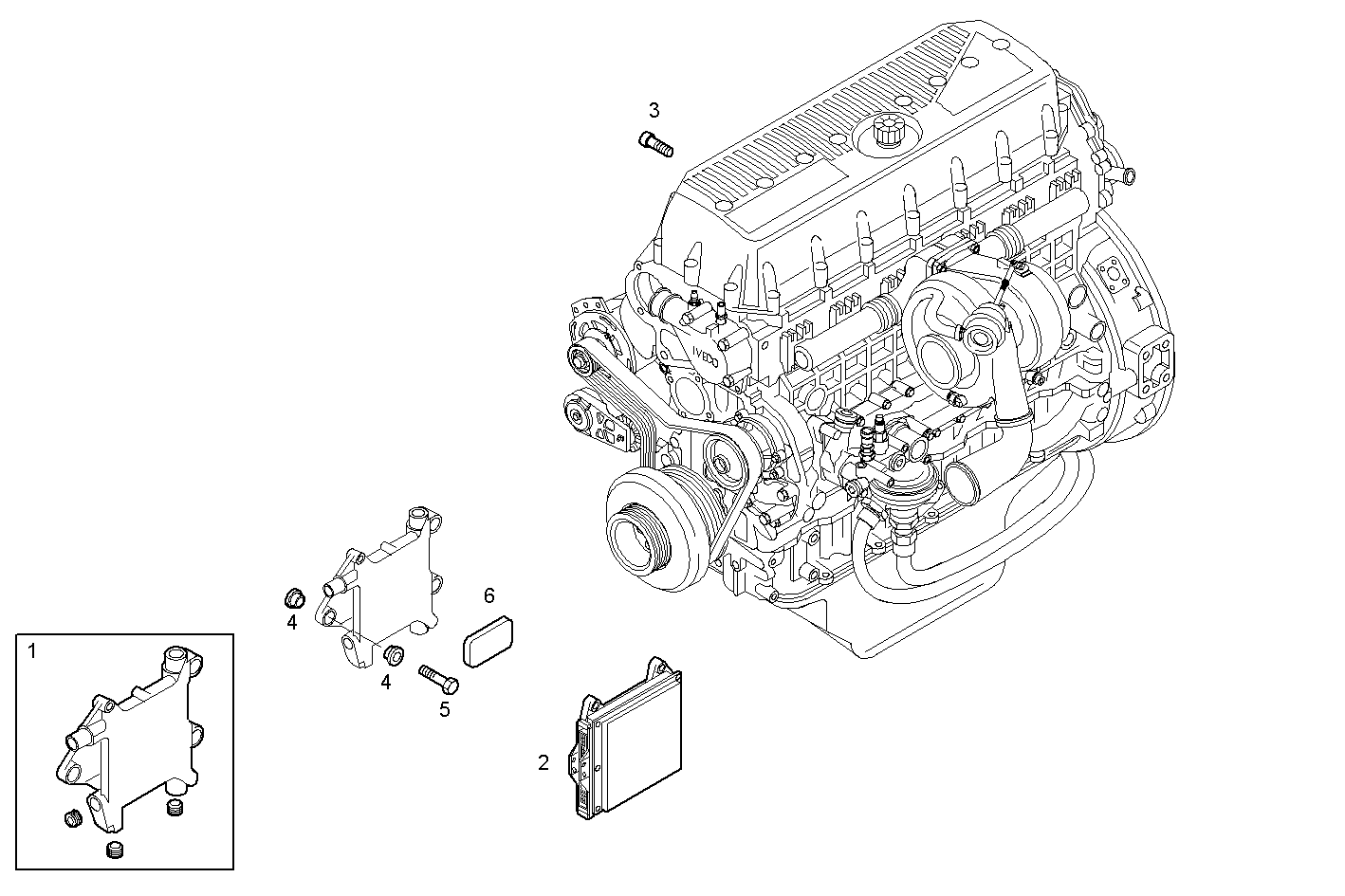

ELECTRONIC CONTROL UNIT
Assembly ID: 1701.012
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500371989 | SUPPORT | 1 | ||
| 2 | 8093995 | ELECTR.CONTR.UNIT | 1 | ||
| 3 | 16586825 | HEXAGON BOLT | 3 | ||
| 4 | 98498817 | DOWEL | 6 | ||
| 5 | 16586625 | HEXAGON BOLT | 4 | ||
| 6 | 99474206 | RUBBER PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTD20.00 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0687A*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687B*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687C*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A001 | CURSOR 8 - TIER 2 | view |
| F2BE0685A*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.00 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| F2BE0685A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.10 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.00A800 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| PUC78ENTD20.00A100 | CURSOR 8 - TIER 2 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.S550 | CURSOR 8 - 2002/88/CE | view |
