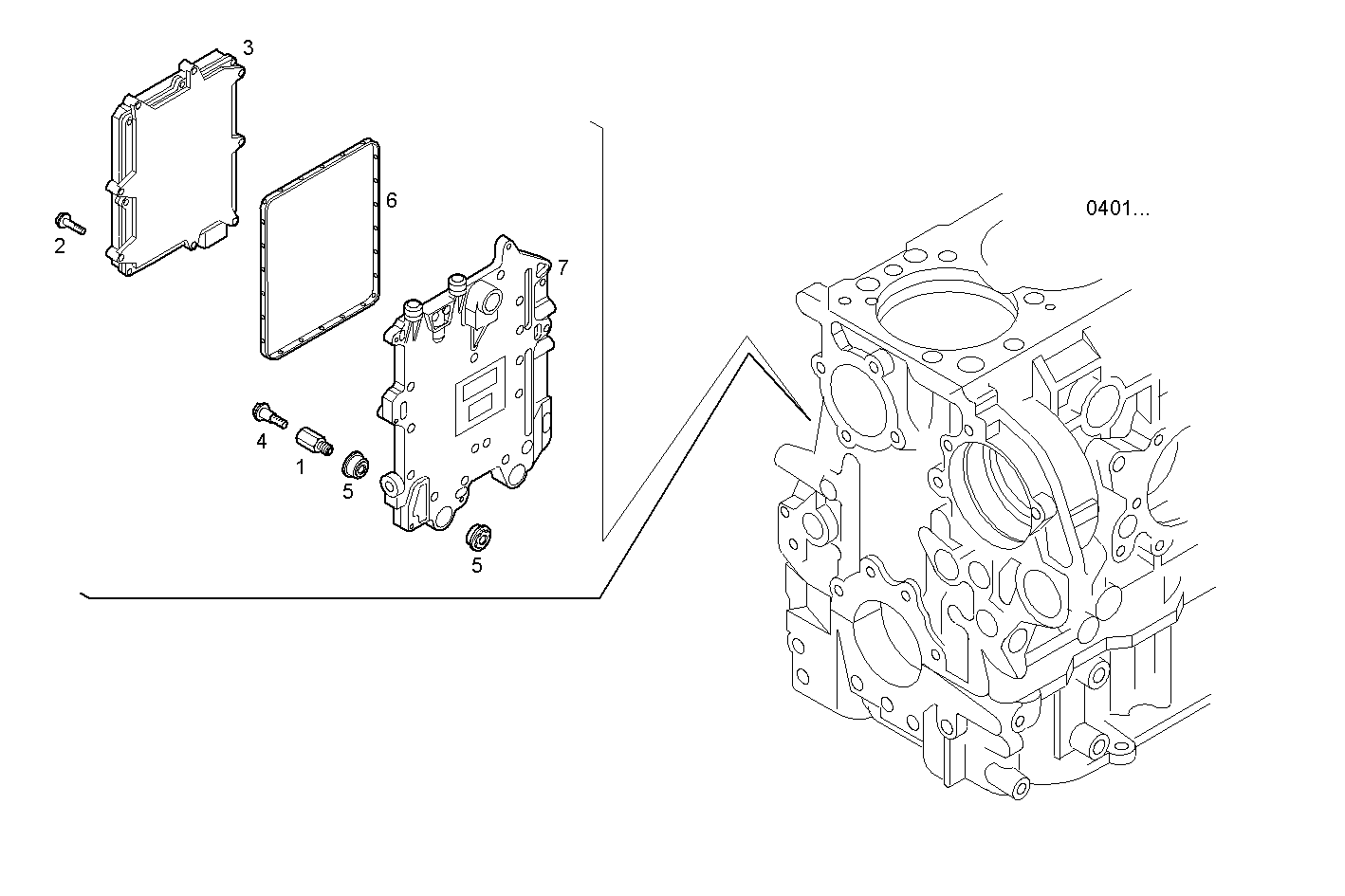

ELECTRONIC CONTROL UNIT
Assembly ID: 1701.018
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99475194 | SPACING BAR | 1 | ||
| 2 | 16586025 | HEXAGON BOLT | 8 | ||
| 3 | 8094789 | ELECTR.CONTR.UNIT | 1 | ||
| 4 | 16586825 | HEXAGON BOLT | 3 | ||
| 5 | 98498817 | DOWEL | 6 | ||
| 6 | 504184521 | FLAT ENGINE GASKET | 1 | ||
| 7 | 504097239 | SUPPORT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
