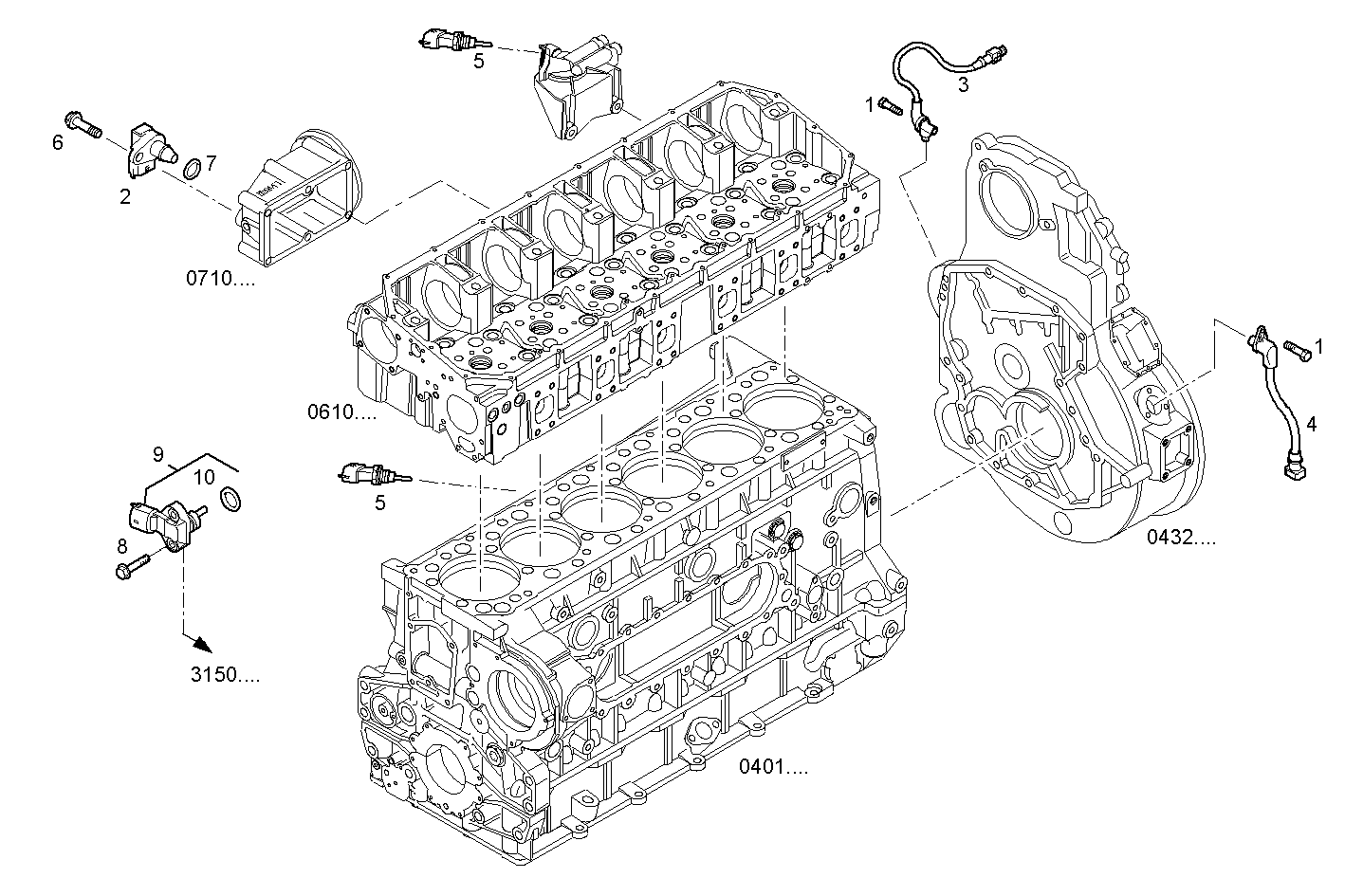

SENSORS
Assembly ID: 1710.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16689024 | CYLIND-HEAD SCREW | 2 | ||
| 2 | 504073323 | SENSOR | 1 | ||
| 3 | 99450797 | SENSOR | 1 | ||
| 4 | 504005575 | SENSOR | 1 | ||
| 5 | 500382599 | TEMP. TRANSMITTER | 2 | ||
| 6 | 16597225 | HEXAGON BOLT | 1 | ||
| 7 | 42546555 | O-RING | 1 | ||
| 8 | 4899110 | HEXAGON BOLT | 2 | ||
| 9 | 4890193 | SENSOR | 1 | ||
| 10 | 4895477 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0687A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.20 | CURSOR 8 - TIER 2 | view |
| PUC78ENTD20.20A100 | CURSOR 8 - TIER 2 | view |
