SENSORS

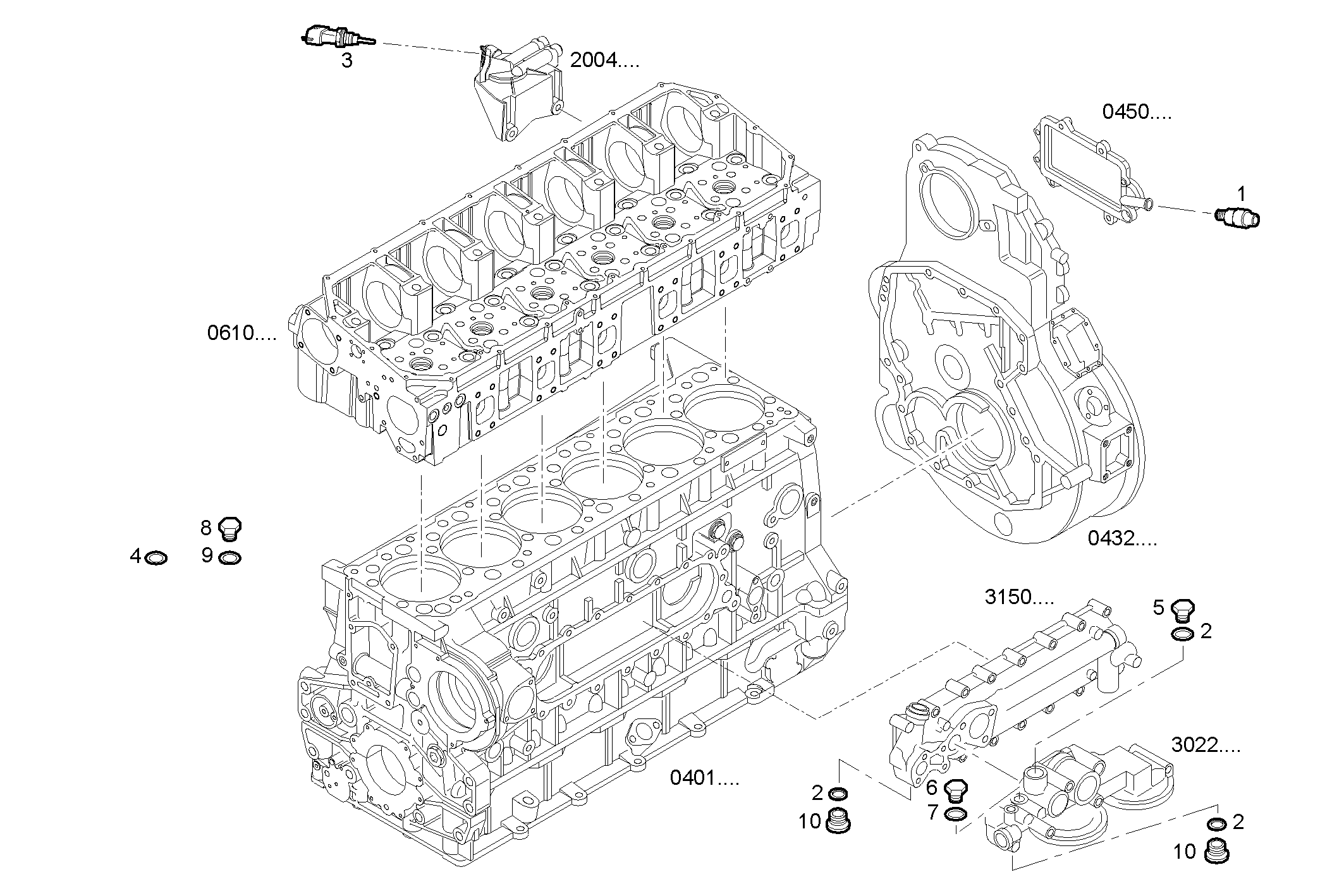

Assembly ID: 1712.004

SENSORS

Parts

# Part number Description Note Quantity
1 500346371 CHOCKED FILTER INDIC. 1
2 99489018 SEAL GASKET 4
3 500346074 TRANSMITTER 1
4 17277881 O-RING 1
5 504084571 THREADED PLUG 1
6 16992415 THREADED PLUG 1
7 99489019 WASHER 1
8 16887515 THREADED PLUG 1
9 99489017 SEAL GASKET 1
10 16992311 LOCK PLUG 2

Applies to engines

Engine Family
F3BE0684G*E901 CURSOR 13 - TIER 3 view
F3BE0684H*E902 CURSOR 13 - TIER 3 view
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9685A*E001 CURSOR 10 - 2002/88/CE TIER 3 view
C10ENTX60.00 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3BE0684H*E901 CURSOR 13 - TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
F3BE0684J*E902 CURSOR 13 - TIER 3 view
F3BE0684N*E904 CURSOR 13 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
F3BE0684Q*E901 CURSOR 13 - TIER 3 view
F3BE0684R*E901 CURSOR 13 - TIER 3 view
C10ENTX20.00A802 CURSOR 10 - TIER 3 view
F3BE0684Q*E905 CURSOR 13 - TIER 3 view
F3BE0684R*E905 CURSOR 13 - TIER 3 view
CURSOR10TE1D.S550 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.A551 GECURSOR 10 - 2002/88/CE-TIER3 view
GECURSOR300ED.A71M GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A008 CURSOR 10 - TIER 3 view
F3BE0684N*E906 CURSOR 13 - TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3BE0684Q*E902 CURSOR 13 - TIER 3 view
