SENSORS
Assembly ID: 1712.023

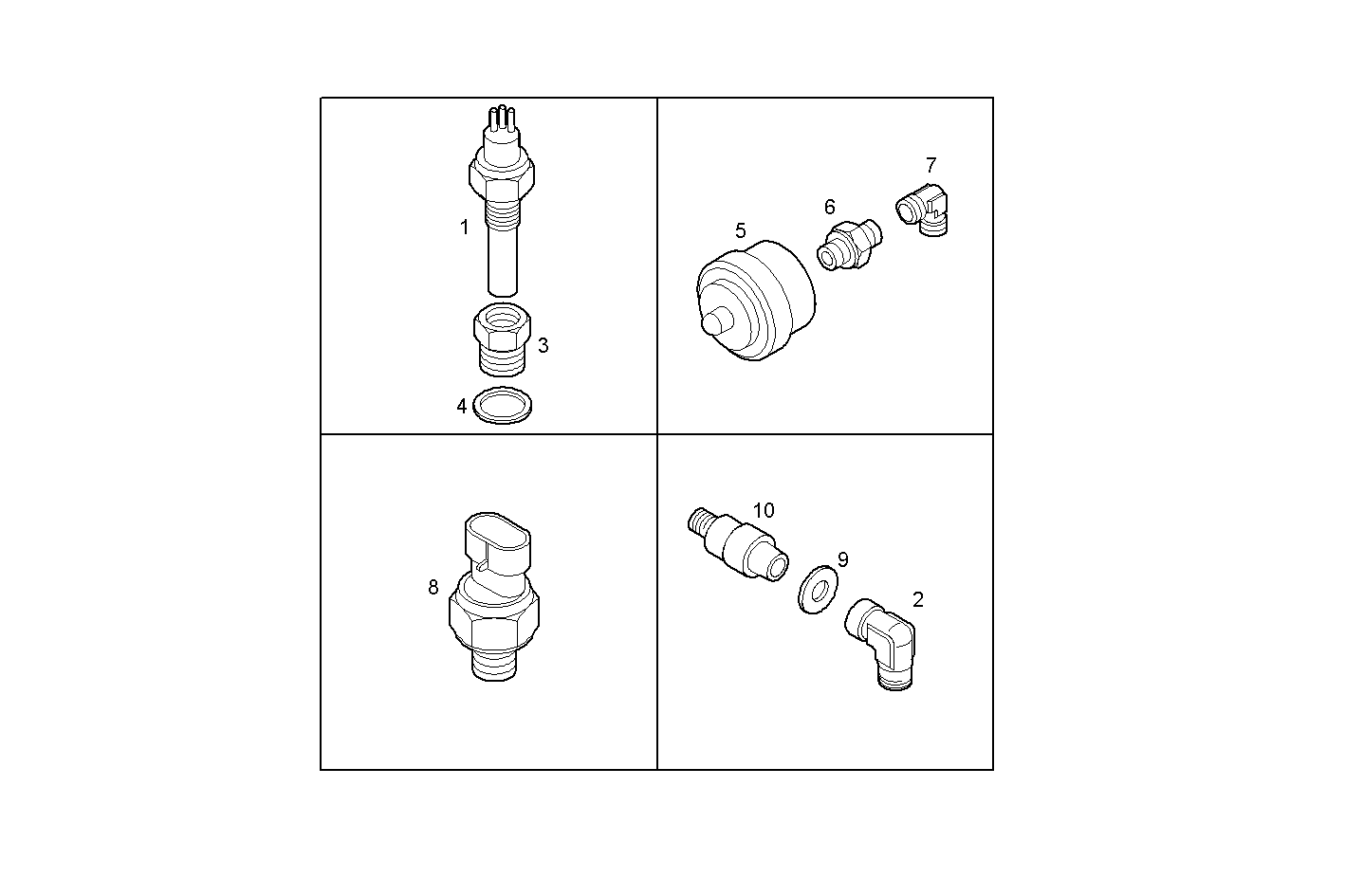

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8006054 | TRANSMITTER | 1 | ||
| 2 | 8032490 | ELBOW COUPLING | 1 | ||
| 3 | 8019380 | PIPE SOCKET | 1 | ||
| 4 | 99489021 | WASHER | 1 | ||
| 5 | 8027423 | CHOCKED FILTER INDIC. | 2 | ||
| 6 | 8033189 | PIPE SOCKET | 2 | ||
| 7 | 8033181 | ELBOW COUPLING | 2 | ||
| 8 | 500351609 | SENSOR | 1 | ||
| 9 | 99489018 | SEAL GASKET | 1 | ||
| 10 | 500346371 | CHOCKED FILTER INDIC. | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
